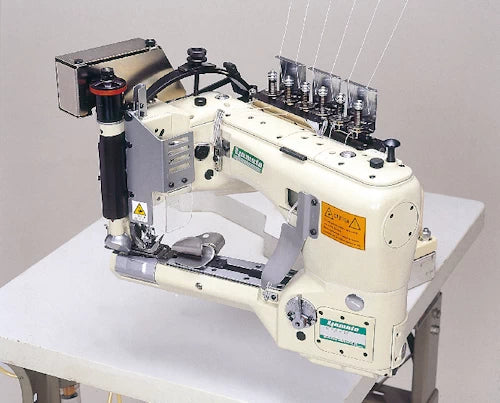

Yamato DT Series 3-Needle Feed-off-the-arm Double Chain Stitch Machine

Yamato DT Series 3-Needle Feed-off-the-arm Double Chain Stitch Machine

DT-30-01E_AC1

Designed for Heavy-Duty Felling | Integrated Puller System | High-Speed Performance

Choose Model
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Yamato DT Series

is a specialized industrial workhorse designed for high-speed felling and lap-seaming operations. Its unique Feed-off-the-arm (cylindrical arm) geometry allows operators to sew tubular sections—such as trouser legs and jacket sleeves—without having to turn the garment inside out, significantly boosting productivity.

Equipped with a Differential Feed mechanism and an Upper Driven Feed Roller (Puller), the DT series handles thick, multi-layered seams (like denim crotches) with ease, preventing material twisting and ensuring a clean, "pucker-free" finish. Paired with a modern Electronic Servo Motor, this machine provides silent operation and precise speed control for the most demanding production lines.

  • Feed-off-the-arm Geometry: The cylindrical bed design eliminates the need for manual turning after felling, making it the perfect solution for sleeves, side seams, and inseams.
  • Upper Driven Feed Roller: The integrated puller system ensures that heavy-weight fabrics move accurately and evenly through the machine, even when crossing thick intersecting seams.
  • 3-Needle Chainstitch Strength: Produces a durable, elastic double-chain stitch (Type 401) that can withstand the high-stress requirements of denim and utility workwear.
  • Looper Uncoupling Device: Features a specialized "come-out" looper mechanism that simplifies threading, drastically reducing downtime for the operator.
  • Differential Feed Dial: Allows for micro-adjustments to the feeding ratio via an external dial, ensuring perfectly flat seams across various fabric weights.
  • Whisper-Quiet Servo Motor: The included 110V Servo Motor is 70% more energy-efficient than traditional clutch motors and allows for custom speed settings.
  • Japanese Precision: Built with Yamato’s legendary Japanese engineering for superior durability in 24/7 manufacturing environments.
  • Number of Needles: 3
  • Number of Threads: 6
  • Needle Distance:DT-30-01E: 6.35mm (1/4 inches)DT-30-01F: 7.14mm (9/32 inches)
  • Stitch Length: 2.1 - 4.2mm
  • Feed Regulation: Lever
  • Differential Ratio: 1:0.7 - 1:3.0
  • Differential Feed Regulation: Dial
  • Presser Foot Lift: 7.4mm
  • Needle Stroke: 33mm
  • Max. Sewing Speed: 4,500spm

The Yamato DT Series is the premier choice for heavy-weight apparel construction:

  • Denim Manufacturing: Ideal for felling inseams, side seams, and back yokes on jeans and denim jackets.
  • Heavy-Duty Workwear: Structural seams for overalls, cargo pants, and utility vests.
  • Outerwear: Felling sleeves and side seams on heavy canvas coats.
  • Technical Gear: Heavy-duty bags and specialized industrial covers.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
