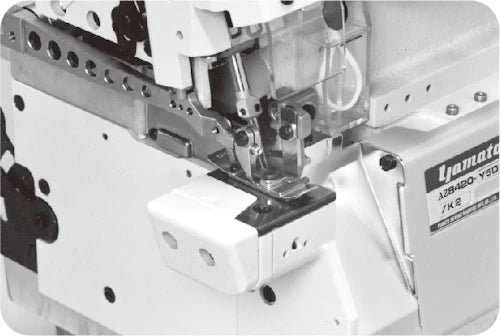

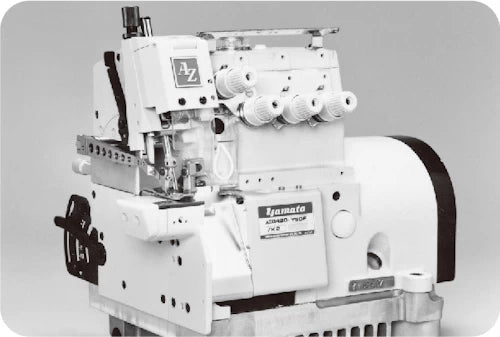

Yamato AZ8400 Class Complete Cylinder Bed Overlock Industrial Machine With Table and Servo Motor

Yamato AZ8400 Class Complete Cylinder Bed Overlock Industrial Machine With Table and Servo Motor

Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Yamato AZ8400 Class

is the industry standard for high-speed tubular sewing operations. Engineered for precision and extreme productivity, this cylinder bed overlock machine features a remarkably slim 6-inch circumference bed, making it the ideal choice for small-diameter circular work such as attaching sleeves, hemming cuffs, and finishing necklines.

Built with Yamato’s legendary Japanese engineering, the AZ8400 combines a blistering 8,000 SPM (stitches per minute) capacity with a "Speed & Dry" technology framework that ensures clean, oil-free garments even at maximum velocity.

  • Ultra-Slim Cylinder Bed: The 6-inch (151.5mm) circumference allows for effortless handling of small-diameter tubular items like children’s wear, cuffs, and sleeves.
  • Super High-Speed Productivity: Capable of speeds up to 8,000 SPM, significantly reducing production cycle times without compromising stitch quality.
  • Push-Button Stitch Adjustment: Change stitch length instantly by rotating the handwheel while pressing the integrated push-button.
  • External Differential Feed Lever: Quickly adjust the differential feeding ratio via an easily accessible lever on the back of the machine to prevent puckering or stretching on varied fabrics.
  • Versatile Sub-Model Options: Available in 1-needle (3-thread) or 2-needle (4-thread) configurations for general seaming or specialized blind hemming.
  • Optional Cloth Plate: Can be fitted with a swing-out cloth plate to convert the cylinder bed into a flat surface for general seaming operations.
  • Number of Needles: AZ8400, AZ8403: 1AZ8420: 2
  • Number of Threads: AZ8400, AZ8403: 3AZ8420: 4
  • Needle Distance:AZ8420: 2.4mm
  • Overedge Seam Width: AZ8400, AZ8403: 2.5 - 4.5AZ8420: 3.5 - 5.5
  • Stitch Length: 1.0 - 3.0 mm
  • Differential Ratio: 1:0.8 -1:2.3
  • Presser Foot Lift: 6mm
  • Needle Stroke: 24.5 mm
  • Max Sewing Speed: AZ8400, AZ8403: 8,000 spmAZ8420: 7,500 spm

Optimized for circular and tubular garment construction:

  • Apparel: T-shirt sleeves, cuffs, neckbands, and children's clothing.
  • Intimate Apparel: Leg openings for swimwear, briefs, and lingerie.
  • Athletic Wear: Compression gear and performance sleeves.
  • Blind Hemming: Professional finishing on knitwear (specifically sub-model AZ8400).

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3>Devices:</h3>
<p><strong>TC/CH20:</strong>&nbsp;Blind Hemming Guide with Sideseam Sensor with Quick Change Thread Tension Controller for Blindstitch Hemming ⇆ General Seaming</p>
<ul><li>TC/CH20 is the Blind Hemming Guide Package which Prevents Misalignments During Blind Hemming Operations.</li><li>Plyshifting on the cross-seam sections is a common cause of misalignments during blind hemming operations.</li><li>This package detects the cross-seam sections by its sensor and automatically slides the guide to prevent fabric misalignments. The guide slides back once it reaches the predetermined stitch count.</li><li>Just turning the TC lever, you may change thread tension as appropriate according to sewing applications such as blind hemming or general seaming.</li></ul>
<p><strong>K2:</strong>&nbsp;&nbsp;Automatic Thread Chain Cutter (Vertical Type)</p>
<ul><li>Controlled by the compressor air, it sucks the thread chain and cuts them, and collects the dust. The package saves you time and gives you a clean working environment.</li><li>This vertical-type thread chain cutter is usually fitted with overlock machines.</li><li>To collect dust, a separate venturi device is required.</li></ul>

Devices:

TC/CH20: Blind Hemming Guide with Sideseam Sensor with Quick Change Thread Tension Controller for Blindstitch Hemming ⇆ General Seaming

  • TC/CH20 is the Blind Hemming Guide Package which Prevents Misalignments During Blind Hemming Operations.
  • Plyshifting on the cross-seam sections is a common cause of misalignments during blind hemming operations.
  • This package detects the cross-seam sections by its sensor and automatically slides the guide to prevent fabric misalignments. The guide slides back once it reaches the predetermined stitch count.
  • Just turning the TC lever, you may change thread tension as appropriate according to sewing applications such as blind hemming or general seaming.

K2:  Automatic Thread Chain Cutter (Vertical Type)

  • Controlled by the compressor air, it sucks the thread chain and cuts them, and collects the dust. The package saves you time and gives you a clean working environment.
  • This vertical-type thread chain cutter is usually fitted with overlock machines.
  • To collect dust, a separate venturi device is required.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
