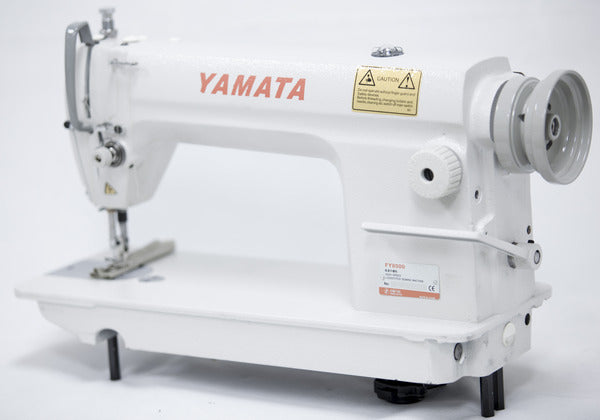

Yamata FY8700 High Speed Straight LockStitch Sewing Machine With Table and Servo Motor

Yamata FY8700 High Speed Straight LockStitch Sewing Machine With Table and Servo Motor

FY-8700

Complete Unit: Includes Assembled Table & Quiet Servo Motor

$859.95
$859.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Yamata FY-8700

is a versatile, high-speed industrial lockstitch machine designed for sewing light to medium-weight materials. Based on the industry-standard "8700" design, this machine is built for durability and ease of use in professional garment factories, tailor shops, and home studios.

Whether you are sewing apparel, linens, or lightweight accessories, the FY8700 delivers clean, consistent stitches at speeds up to 5,500 SPM. This complete unit comes equipped with a modern Electronic Servo Motor, providing a silent workspace and significant energy savings compared to traditional clutch motors.



  • High-Speed Productivity: Capable of sewing up to 5,500 stitches per minute, making it ideal for high-volume production.
  • Whisper-Quiet Servo Motor: The included 550W Servo Motor operates silently and allows for adjustable speed control—perfect for beginners and experts alike.
  • Automatic Lubrication: A built-in centrifugal pump ensures all internal parts are continuously oiled, extending the machine's life and reducing maintenance.
  • Low Vibration & Noise: Precision-engineered head ensures a smooth sewing experience even at top speeds.
  • Easy Stitch Adjustment: Features a tactile dial to quickly adjust stitch length from 0 to 5mm.
  • Universal 8700 Design: Uses standard needles, bobbins, and presser feet (compatible with Juki DDL-8700 parts), making replacements and accessories easy to find.
  • Fully Assembled: Ships on a pallet, professionally built and tested, ready for immediate use.
  • Application: Medium-weight
  • Max. sewing speed: 5,500 Stitches per Minute
  • Max. stitch length: 5mm
  • Needle bar stroke: 30.7mm
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot: 13mm
  • Needle: DB×1 (#14) #9~#18 / 134 (Nm90)
  • Bobbins: #270010
  • Feed dog: 4-row (3-row)
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Automatic
  • Bed Size: 7" x 18 25/32"
  • Workspace: 10 1/4"

The Yamata FY8700 is the go-to machine for a wide variety of projects:

  • Garment Construction: Blouses, shirts, dresses, and pants.
  • Home Textiles: Curtains, pillowcases, and bed sheets.
  • Uniforms: Medical scrubs, school uniforms, and lightweight workwear.
  • Masks & Accessories: Totes, masks, and lightweight canvas projects.

Note: This machine is intended for light to medium fabrics. For sewing heavy denim or thick leather, please inquire about our walking foot or heavy-duty models.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
