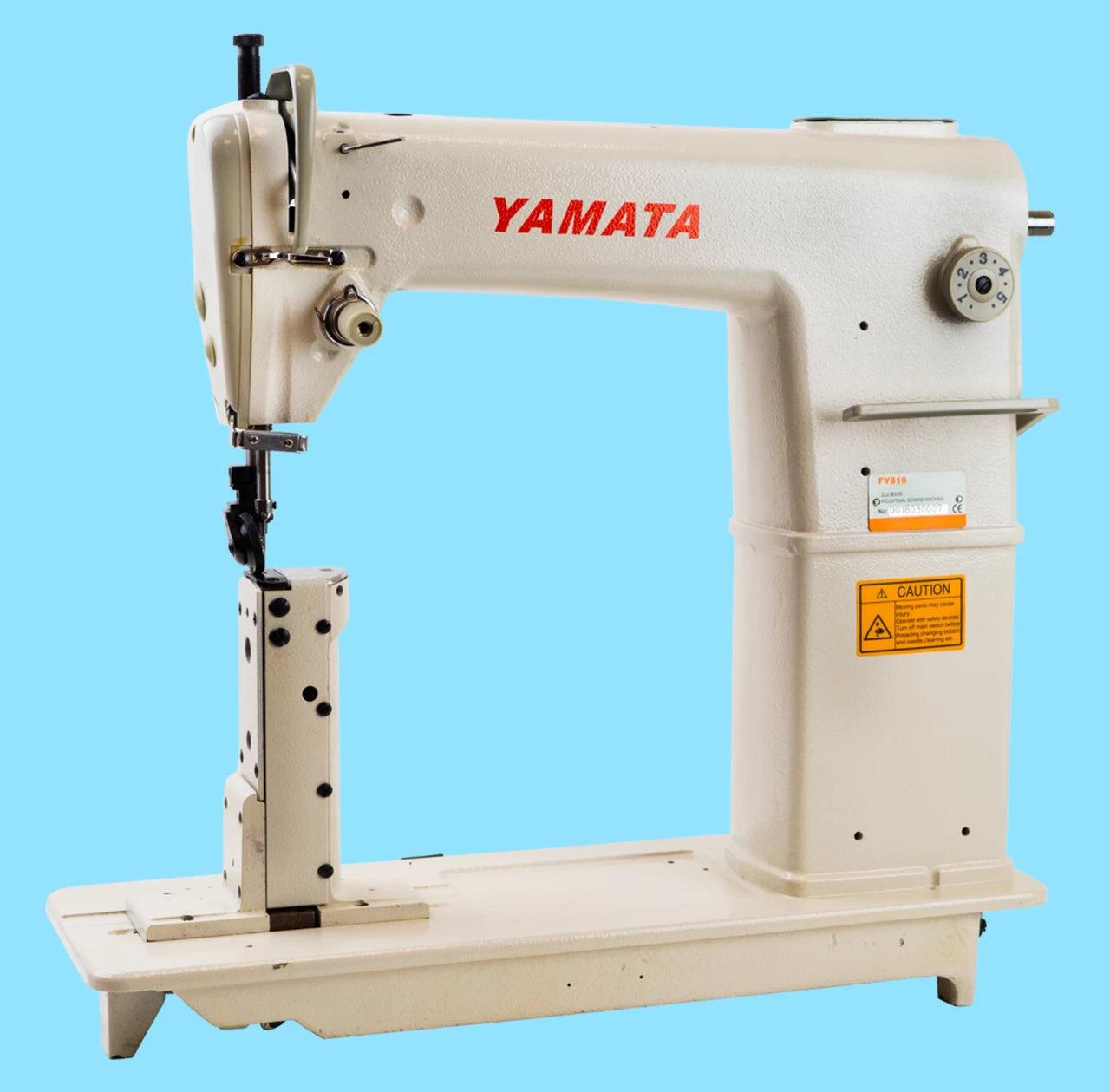

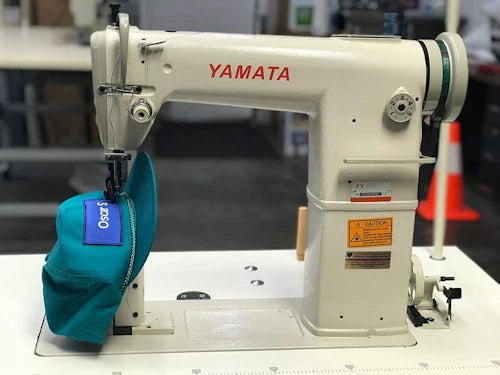

Yamata FY810 Single-Needle Post-Bed Industrial Sewing Machine Heavy-Duty Drop-Feed Lockstitch with Roller Presser Foot

Yamata FY810 Single-Needle Post-Bed Industrial Sewing Machine Heavy-Duty Drop-Feed Lockstitch with Roller Presser Foot

FY810

Complete Unit: Includes Assembled Table, Legs, and High-Torque Servo Motor

$1,499.95
$1,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Yamata FY810

is a specialized post-bed industrial machine designed for the manufacturing of shoes, bags, and leather goods. Its narrow post-bed design allows for easy manipulation of 3D objects, making it the industry standard for stitching "uppers," vamping, and edge-stitching on footwear and cylindrical accessories.

Equipped with a top roller presser foot, this machine offers maximum visibility of the needle entry point and allows for fluid movement when sewing tight curves or sharp corners that a standard flat foot cannot manage.

Yamata FY810

Drop Feed Heavy Duty Single Needle Lockstitch Post Bed Industrial Sewing Machine Comes With Table, Legs, and Servo Motor

  • Precision Post-Bed Design: The 7-inch vertical post provides the clearance needed to sew boots, hats, and the interiors of handbags.

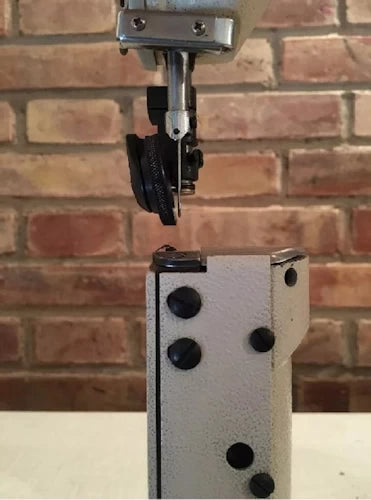

  • Top Roller Presser Foot: Minimizes friction and allows the operator to track complex patterns and curves with high accuracy.
  • Unison-Motion Bevel Gears: Engineered with precise bevel gears to transfer power smoothly from the main shaft to the hook, ensuring quiet operation and a consistent stitch.
  • Vertical-Axis Large Hook: Optimizes thread tension and reduces the frequency of bobbin changes for high-volume production.
  • Reverse Stitching Lever: Integrated manual reverse lever allows for instant back-tacking to secure your seams.
  • Adjustable Stitch Regulator: A push-button regulator makes changing stitch lengths (up to 5mm) simple and intuitive.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 3000
  • Clearance Under Presser Foot: 15/64" (6mm)
  • Stitch Length: 5 s.p.i. (5mm)
  • Needle: DP-F22/134S
  • Bobbin: Pre-Wound G
  • Stitch Type: 301
  • Needle Bar Stroke: 1 1/4" (32mm)
  • Hook: 12032
  • Post Height: 7" (178mm)
  • Work Surface: 1 7/8" x 2" (48mm x 75mm)
  • Footwear: Ideal for leather shoes, athletic sneakers, slippers, and boots.
  • Leathercraft: Perfect for wallets, gloves, belts, and luxury handbags.
  • Specialty Items: Used for orthopedic appliances, sports equipment, and headwear.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
