Yamata FY801 Industrial Leather Skiving Machine Professional Bell-Knife Skiver for Edge & Surface Thinning

Yamata FY801 Industrial Leather Skiving Machine Professional Bell-Knife Skiver for Edge & Surface Thinning

FY801

Complete Unit: Includes Assembled Table, Stand, and High-Torque Servo Motor

$1,899.95
$1,899.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

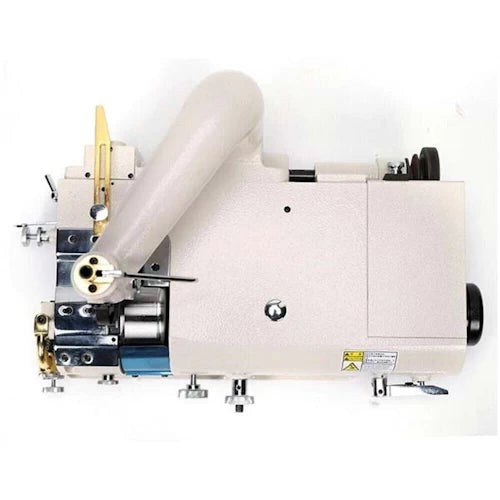

Yamata FY801

is a specialized industrial machine designed to "skive" or thin the edges and surfaces of leather, synthetic leather, and rubber. It is an indispensable tool for creating professional-grade leather goods, allowing you to thin material for clean folds, smooth seams, and reduced bulk in wallets, shoes, and handbags.

Based on the industry-standard Fortuna-type design, the FY801 features a high-speed rotating bell knife and a stone feed wheel. This combination ensures effortless feeding and a surgically precise cut, whether you are beveling an edge or thinning a large surface area.

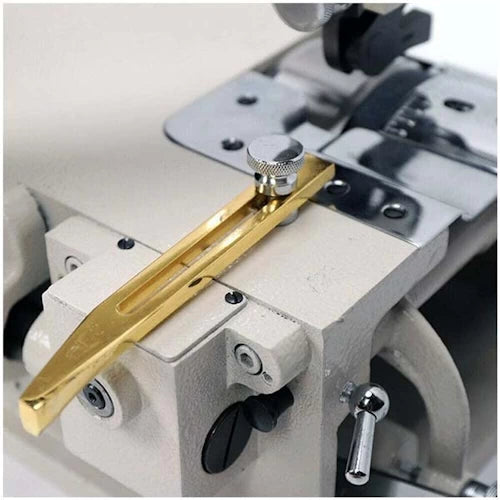

  • Fortuna-Style Bell Knife: Uses the world-standard bell knife, shoe, and plate system for consistent, repeatable skiving results across various leather weights.
  • Integrated Knife Sharpener: Features a built-in grinding wheel with a separate clutch. You can sharpen the bell knife while the machine is running to maintain a razor-sharp edge.
  • Waste Removal System: Includes an internal scrap-clearing device that prevents leather shavings from clogging the feed wheel or knife assembly.
  • Adjustable Skiving Width: Easily adjust your skive width from 15mm up to 50mm (approx. 2 inches) for versatile edge-work and strap thinning.
  • Variable Feeding Speed: The machine's feed rate can be fine-tuned to match the operator’s skill level and the specific delicacy of the material.
  • Precision Tension Control: Adjustable presser foot pressure allows for the skiving of everything from soft garment leather to heavy-weight veg-tan.
  • Rotating speed of main shaft: 1100-1200rpm (circular knife)
  • Skiving width: 4-15mm
  • Size of the Machine Head: 550 x 370 x 400mm
  • Motor Power: 370W
  • Size of Circular Knife: Ø117*54*Ø114mm
  • Cutting Speed: 1100 r.p.m
  • Weight: 92 kg
  • Dimensions: 24 × 17 × 16 cm
  • Footwear: Thinning shoe uppers and heels for comfortable, bulk-free seams.
  • Small Leather Goods: Skiving edges of wallets, watch straps, and card holders for perfect "turned edges."
  • Accessories: Prepping belts, bag handles, and leather upholstery buttons.
  • Technical Materials: Works effectively on vinyl, synthetic leather, and rubber.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
