Yamata FY757A-5/QD 5-Thread Safety Stitch Overlock Industrial Machine

Yamata FY757A-5/QD 5-Thread Safety Stitch Overlock Industrial Machine

FY757A-5

High-Speed Productivity | Integrated Safety Stitch | Complete Unit with Servo Motor

$1,397.95
$1,397.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

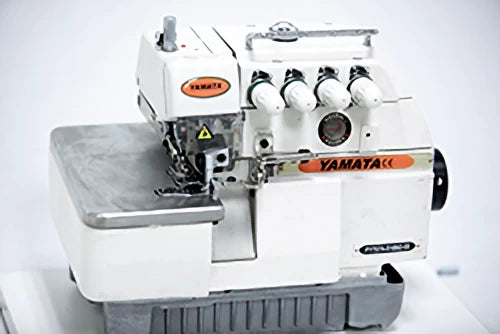

Yamata FY757A-5/QD

is a heavy-duty industrial serger designed for high-volume garment manufacturing and professional workrooms. This 5-thread "Safety Stitch" machine performs two functions simultaneously: a 3-thread overlock edge finish and a 2-thread chainstitch for structural reinforcement. The result is an incredibly strong seam that meets commercial standards for apparel.

Equipped with a modern Electronic Servo Motor, the FY757A-5/QD offers a quiet working environment and adjustable speed control—a massive upgrade over traditional loud clutch motors. It is the ideal workhorse for sewing woven fabrics, denim, and heavy-weight materials.

The Yamata FY757A-5/QD is the industry standard for:

  • Woven Garments: Dress shirts, trousers, and skirts.
  • Workwear & Uniforms: Heavy-duty scrubs, aprons, and denim jeans.
  • Home Textiles: Bed linens, tablecloths, and curtains.
  • Bags & Accessories: Lightweight canvas totes and internal lining for luggage.
  • True 5-Thread Safety Stitch: Combines an overedge finish with a separate chainstitch, ensuring seams won't rip even under high tension.1
  • High-Speed Performance: Capable of reaching up to 6,500 SPM, significantly cutting down production time for long seams.
  • Whisper-Quiet Servo Motor: The 550W Servo Motor provides 70% energy savings and allows the operator to set a comfortable maximum sewing speed.
  • Differential Feed Adjustment: Features a micro-adjustment dial to prevent fabric puckering or stretching, ensuring flat seams on various material weights.
  • Automatic Lubrication: A fully automatic "oil-submerged" system ensures all high-speed internal components are continuously cooled and lubricated.
  • Silicon Oil Needle Cooler: Designed to prevent thread breakage and needle heat-up during long, high-speed production runs.
  • Versatile Threading: Can be configured as a 3-thread overlock if the safety stitch is not required for specific projects.
  • No.of threads: Up to 5
  • Needle gauge: 3mm
  • Stitch width: 5mm
  • Stitch length: 3.6mm
  • Differential ratio: 0.7-2
  • Height of presser foot: 5.5mm
  • Needle: DCx27 #11-#18
  • Motor: 3450 r.p.m. clutch motor
  • Sewing speed: Max 7500 s.p.m.
  • Measurements: 470xx330x485

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
