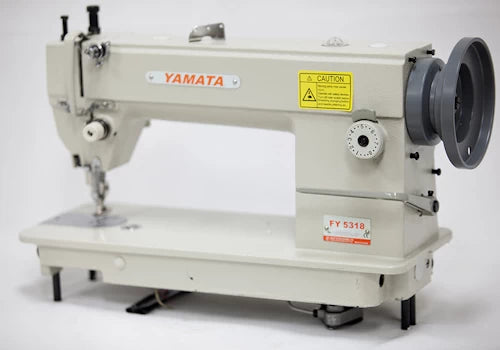

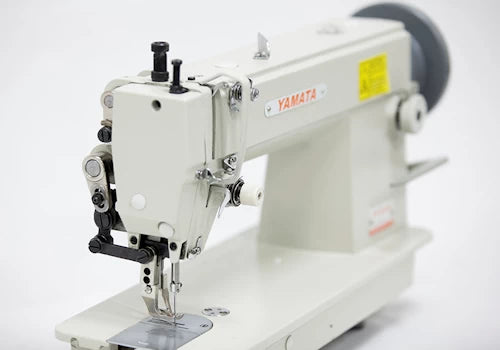

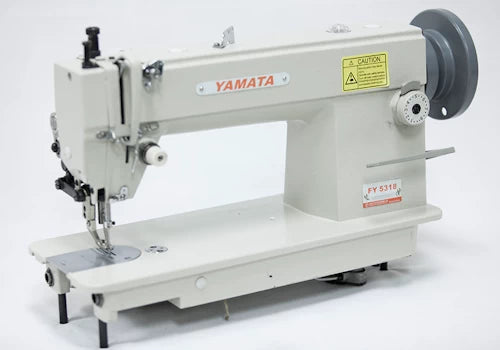

Yamata FY5318 Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table and Servo Motor

Yamata FY5318 Heavy Duty Single Needle Upholstery Walking Foot Top Bottom Feed Industrial Sewing Machine With Table and Servo Motor

FY-5318

Complete Unit: Includes Assembled Table, Legs, and High-Torque Servo Motor

$1,299.95
$1,299.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

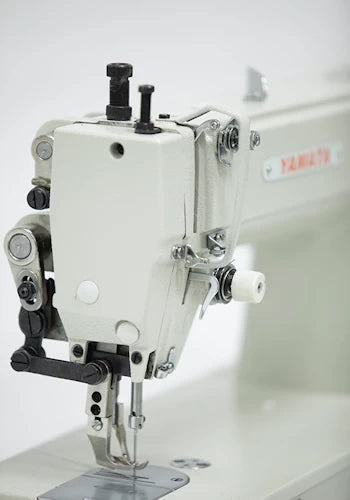

Yamata FY5318

is an essential tool for professional upholsterers and leather workers. Unlike standard machines that struggle with thick layers, the FY5318 features a walking foot (top and bottom feed) mechanism. This ensures that the upper and lower layers of fabric are moved through the machine simultaneously, preventing "creeping" or misalignment of materials like leather, vinyl, and canvas.

Equipped with a large vertical-axis hook, this machine handles thicker threads with ease and reduces the frequency of bobbin changes, making it a reliable choice for manufacturing car seats, furniture, and heavy-duty bags.

  • Walking Foot Technology: Synchronized top and bottom feeding prevents slippery or heavy materials from shifting during stitching.
  • Large Bobbin Capacity: Features a large vertical-axis hook that holds significantly more thread than standard bobbins, essential for thick upholstery threads.
  • High Clearance: The presser foot can be lifted up to 13mm via the knee lifter, allowing you to easily position bulky foam-backed fabrics or multiple layers of leather.
  • Automatic Lubrication: A built-in pump system automatically oils the internal components, ensuring longevity and smooth operation at high speeds.
  • Adjustable Stitch Length: Easily produce long, decorative top-stitching or tight structural seams with an adjustable stitch dial up to 8mm.
  • Safety Clutch: (Optional/Model dependent) Protects the hook from damage if the machine encounters a thread jam.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Max Speed: (S.P.M.) 3300
  • Clearance Under Presser Foot: 9/16″ (14mm)
  • Stitch Length: 2 1/2 s.p.i. (10mm)
  • Large Work Space: 10 5/16″ (258mm)
  • Needle: 135 x 17
  • Bobbin: Pre-Wound M
  • Bed Size: 7″ 18 7/8″ (178mm x 480mm)
  • Stitch Type: 301
  • Gross Weight: 82 lbs. (37.25 kgs)
  • Total Carton Size: 23″ x 10″ x 22″
  • Needle Bar Stroke: 1 5/16″ (33mm)Hook 18033
  • Weight: 76 kg
  • Dimensions:  26 × 12 × 22 cm
  • Upholstery: Sofa covers, armchairs, and marine-grade cushions.
  • Automotive: Car seat covers, headrests, and interior trim.
  • Leather Goods: Belts, heavy-duty bags, holsters, and wallets.
  • Outdoor Gear: Canvas tents, awnings, and vinyl banners.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
