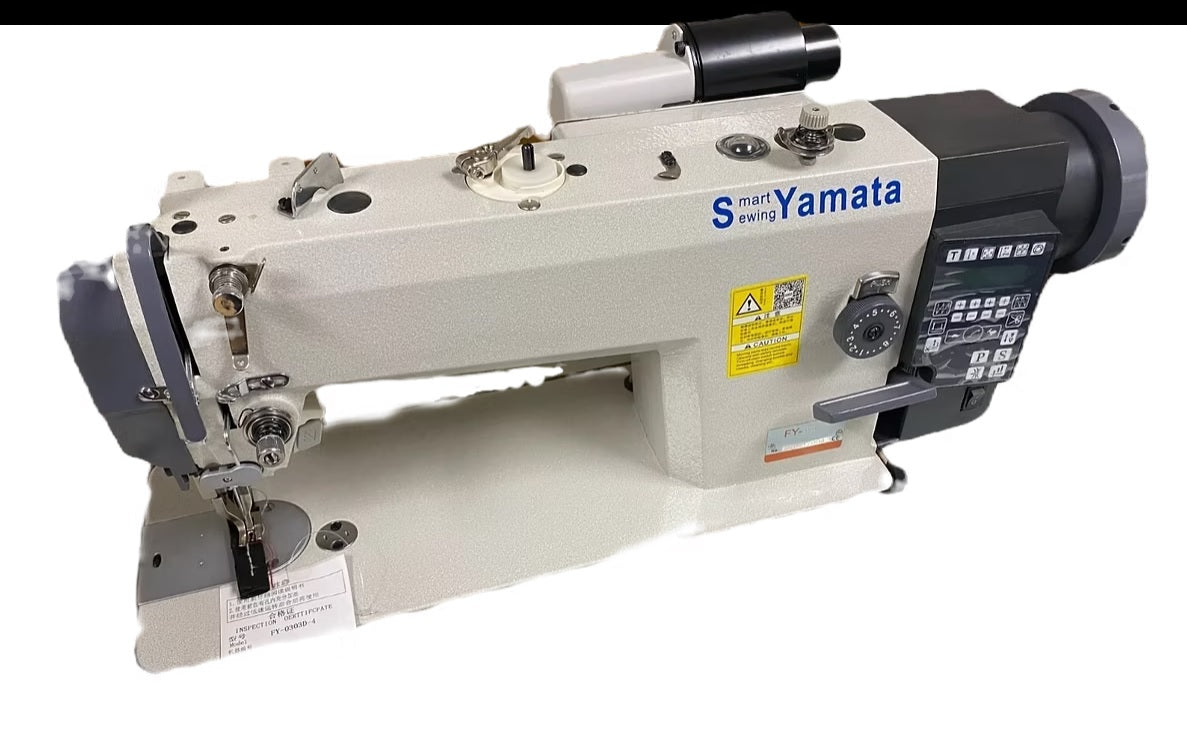

Yamata FY0303-D4 Computerized Walking Foot Industrial Sewing Machine

Yamata FY0303-D4 Computerized Walking Foot Industrial Sewing Machine

FY0303-D4

Automatic Features | Integrated Direct-Drive Motor | Heavy-Duty Performance

$1,799.95
$1,799.95 Market price: $1,999.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

Yamata FY0303-D4

is a high-performance, computerized walking foot machine designed to handle heavy-duty materials with modern precision. Featuring a Top and Bottom Feed (Walking Foot) mechanism, it eliminates material shifting and "crawling," making it the ideal choice for leather, vinyl, canvas, and upholstery fabrics.

This "D4" model is a significant upgrade from manual machines, incorporating an integrated Direct-Drive Servo Motor and a full suite of automatic functions—including thread trimming and back-tacking—to drastically reduce production time and operator fatigue.

  • Integrated Direct-Drive Motor: The motor is built directly into the machine head, providing silent operation, reduced vibration, and 70% more energy efficiency than clutch motors.
  • Computerized Automation: Features Automatic Thread Trimming, Automatic Back-tacking, and Digital Stitch Programming via the easy-to-use control panel.
  • True Walking Foot Mechanism: Synchronized top and bottom feeding ensures that even the most "slippery" or heavy materials (like leather and vinyl) stay perfectly aligned.
  • Large Capacity Hook: Equipped with a large rotary hook and a "double-capacity" bobbin, allowing for longer sewing runs with thick industrial threads.
  • Needle Positioning: Automatically sets the needle to stop in the "up" or "down" position, streamlining cornering and material removal.
  • High Clearance: The high presser foot lift allows for easy maneuvering of bulky, multi-layered projects.
  • Max Sewing Speed : 2,500 SPM (Stitches Per Minute)
  • Feeding Mechanism : Upper & Lower Feed (Walking Foot)
  • Max Stitch Length : 8mm
  • Needle System : DPx17 (Size 18–24)
  • Presser Foot Lift : 8mm (Hand) / 16mm (Knee/Auto)
  • Hook Type : Large Capacity Rotary Hook
  • Motor Type : 550W Direct-Drive Servo Motor
  • Lubrication : Automatic Centralized Lubrication

The Yamata FY0303-D4 is built for medium-to-heavy weight materials:

  • Automotive & Marine: Car seats, boat covers, and interior upholstery.
  • Leather Goods: Handbags, wallets, belts, and holsters.
  • Furniture: Couch cushions, heavy curtains, and outdoor patio covers.
  • Technical Gear: Tactical vests, heavy canvas bags, and strap reinforcement.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3>ACCESSORIES for the Yamata&nbsp;FY0303-D4</h3>
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17 (#14-#23)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbin-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Metal "M" Size #18045<br></a><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-for-most-single-needle-industrial-sewing-machines.htm" target="_blank">Needle Plate /Throat Plate</a></p>
<p><em><strong><br>COMPATIBLE PRESSER FOOT OPTIONS<br></strong></em><a href="https://www.goldstartool.com/double-welting-piping-cording-industrial-walking-presser-foot-set-u-192-u-193kw.htm" target="_blank">Double Welting / Piping / Cording Presser Foot Set U-192+U-193KW</a><br><a href="https://www.goldstartool.com/edge-guide-walking-presser-foot-set-6601-3-u193sg.htm" target="_blank">Edge Guide Walking Presser Foot Set #6601-3, U193SG</a><br><a href="https://www.goldstartool.com/left-narrow-close-sewing-welting-industrial-walking-presser-foot-set-3130l-3111l.htm" target="_blank">Left Narrow Close Sewing Welting Presser Foot Set #3130L, 3111L</a><br><a href="https://www.goldstartool.com/edge-guide-walking-presser-foot-set-6601-3-u193sg.htm" target="_blank">Left Toe Zipper Walking Presser Foot Set #U192LS, U193K</a><br><a href="https://www.goldstartool.com/open-toe-walking-presser-foot-set-u192-u193s.htm" target="_blank">Open Toe Walking Presser Foot Set #U192, U193S</a><br><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-19034.htm" target="_blank">Right Edge Guide Topstitch Presser Foot #19034</a><br><a href="https://www.goldstartool.com/right-toe-zipper-walking-presser-foot-set-u192r-u193r.htm" target="_blank">Right Toe Zipper Walking Presser Foot Set #U192R, U193R</a><br><a href="https://www.goldstartool.com/standard-with-no-teeth-walking-presser-foot-set-u192-u193.htm" target="_blank">Standard With No Teeth Walking Presser Foot Set #U192, U193</a><br><a href="https://www.goldstartool.com/standard-with-teeth-walking-presser-foot-set-u192-u193-.htm" target="_blank">Standard With Teeth Walking Presser Foot Set #U192, U193</a><br><a href="https://www.goldstartool.com/tiny-toe-zipper-cording-welting-piping-industrial-walking-presser-foot-set.htm" target="_blank">Tiny Toe Zipper / Cording / Welting / Piping Presser Foot Set #U192T, U193T</a><br><a href="https://www.goldstartool.com/tiny-toe-zipper-cording-welting-piping-industrial-walking-presser-foot-set-u192ls-u193t.htm" target="_blank">Tiny Toe Zipper / Cording / Welting / Piping Presser Foot Set #U192LS, U193T</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-u67-u68-.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #U67, U68</a><br><a href="https://www.goldstartool.com/welting-piping-cording-with-groove-walking-presser-foot-set-u192lc-193ku.htm" target="_blank">Welting / Piping / Cording With Groove Walking Presser Foot Set #U192LC, 193KU</a><br><a href="https://www.goldstartool.com/welting-piping-with-groove-walking-presser-foot-set-u192k-u193k.htm" target="_blank">Welting / Piping With Groove Walking Presser Foot Set #U192K, U193K</a><br><a href="https://www.goldstartool.com/zipper-binding-walking-presser-foot-set-601-3-521bw.htm" target="_blank">Zipper / Binding Walking Presser Foot Set #601-3, 521BW</a><br></p>
<p><br><em><strong>COMPATIBLE ATTACHMENTS</strong><br></em><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a></p>

ACCESSORIES for the Yamata FY0303-D4

Needles: Sewing Machine Needles 135x17 (#14-#23)Bobbins: Large "M" Style Bobbins #18034Bobbin Case: Metal "M" Size #18045Needle Plate: Needle Plate /Throat Plate

COMPATIBLE PRESSER FOOT OPTIONSDouble Welting / Piping / Cording Presser Foot Set U-192+U-193KWEdge Guide Walking Presser Foot Set #6601-3, U193SGLeft Narrow Close Sewing Welting Presser Foot Set #3130L, 3111LLeft Toe Zipper Walking Presser Foot Set #U192LS, U193KOpen Toe Walking Presser Foot Set #U192, U193SRight Edge Guide Topstitch Presser Foot #19034Right Toe Zipper Walking Presser Foot Set #U192R, U193RStandard With No Teeth Walking Presser Foot Set #U192, U193Standard With Teeth Walking Presser Foot Set #U192, U193Tiny Toe Zipper / Cording / Welting / Piping Presser Foot Set #U192T, U193TTiny Toe Zipper / Cording / Welting / Piping Presser Foot Set #U192LS, U193TWelting / Piping / Cording Walking Presser Foot Set #U67, U68Welting / Piping / Cording With Groove Walking Presser Foot Set #U192LC, 193KUWelting / Piping With Groove Walking Presser Foot Set #U192K, U193KZipper / Binding Walking Presser Foot Set #601-3, 521BW

COMPATIBLE ATTACHMENTSDouble Fold Binder / Binding Attachment Folder #508L

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Yamata FY9300-D4 High-Speed Straight Stitch Industrial Sewing Machine - Goldstartool.com - 800-868-4419

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
