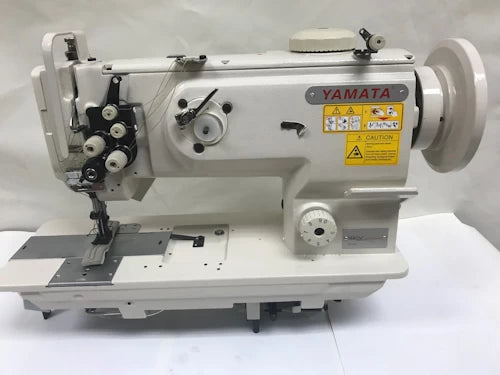

Yamata FY-1560 Double-Needle Heavy-Duty Walking Foot Machine

Yamata FY-1560 Double-Needle Heavy-Duty Walking Foot Machine

FY-1560

Unison Feed | Large "U" Hooks | Complete Unit with Servo Motor

$3,129.99
$3,129.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Yamata FY-1560

is a powerhouse industrial sewing machine designed for high-precision, parallel-row stitching on heavy-weight materials. Built with a True Unison Feed (Walking Foot) mechanism, the needle, feed dog, and presser foot move in perfect synchronization to prevent material shifting, even when sewing through thick leather, multi-layered canvas, or dense synthetic webbing.

Equipped with Large Capacity Vertical-Axis Hooks, this machine reduces the frequency of bobbin changes by up to 40%, making it ideal for long-seam production. Combined with a modern Electronic Servo Motor, the FY-1560 provides the extreme piercing power needed for "tough" projects while maintaining silent operation and adjustable speed control.

  • Double-Needle Parallel Stitching: Perfect for decorative top-stitching and structural seams where two perfectly spaced rows are required simultaneously.
  • Triple Feed (Unison Feed) Technology: The synchronized movement of all three feeding elements ensures zero slippage, even on "sticky" materials like vinyl or heavy leather.
  • Large "U" Type Vertical Hooks: High-capacity bobbins allow for the use of thicker industrial threads (up to Bonded Nylon #138) without running out mid-seam.
  • High Presser Foot Clearance: A massive 16mm (5/8") knee lift allows for effortless handling of bulky foam-backed upholstery or thick webbing straps.
  • Safety Clutch Mechanism: Protects the internal timing and hooks from damage by automatically disengaging if a thread jam occurs.
  • Rectangular Feed Motion: Provides consistent feeding across all material thicknesses, preventing gathered or uneven stitches.
  • Adjustable Speed Servo Motor: The included 110V servo motor provides high torque at low speeds, perfect for technical cornering and precision leatherwork.

  • Max. Sewing speed: 2500spm
  • Max. Stitch length: 9mm (forward/backward)
  • Needle Bar Stroke: 36mm
  • Lift of Presser Foot:By Hand: 9mmBy Knee: 16mm
  • Thread take-up: Slide Type
  • Amount of Alternating Vertical Movement:  2.5mm~6.5mm
  • Feed mechanism: Box Feed
  • Top and Bottom feed actuation mechanism: Timing Belt
  • Hook: Vertical-axis 2-Fold Hook (Latch type)
  • Needle (at the time of delivery): 135 x 17 (Nm160) Nm125-Nm180
  • Thread: #30~#5
  • Pitch Changing Method: By Dial
  • Lubrication: Automatic Lubrication
  • Distance from Needle to Machine Arm: 10.3 inches x 3.8 inches
  • Bed Size: 20.4 inches x 7.1 inches
  • Reverse stitch adjusting method: By Lever
  • Weight of the Machine Head: 123 lbs

The FY-1560 is the preferred choice for:

  • Automotive Interiors: Parallel top-stitching for car seats, door panels, and dashboards.
  • Marine Upholstery: Creating durable, symmetrical seams on boat covers and seating.
  • Furniture Manufacturing: Heavy-duty stitching for leather sofas, office chairs, and cushions.
  • Tactical & Outdoor Gear: Reinforcing straps on backpacks, luggage, and utility bags.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
