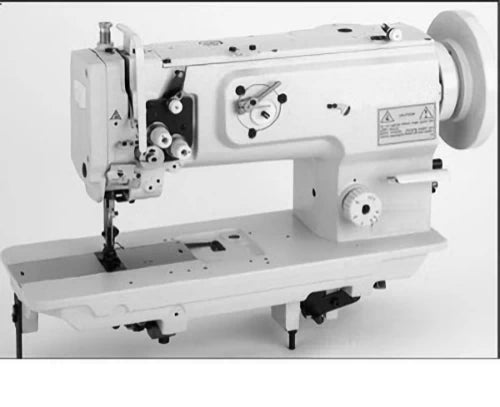

Yamata FY-1510 Single Needle Walking Foot Industrial Sewing Machine

Yamata FY-1510 Single Needle Walking Foot Industrial Sewing Machine

FY-1510

Unison Feed | Rectangular Feed Locus | Large Vertical Hook | Complete Unit

$2,350.99
$2,350.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Yamata FY-1510

is a heavy-duty powerhouse designed for professional upholstery, automotive interiors, and leatherwork. As a high-quality clone of the Juki LU-1510, it features a sophisticated Unison Feed (Triple Feed) system where the needle, feed dog, and walking foot move in perfect unison. This ensures that even the slipperiest or bulkiest materials—like vinyl, webbing, and heavy leather—are fed without shifting or "gathering."

The standout feature of the FY-1510 is its Rectangular Feed Locus. Unlike the elliptical motion of standard machines, the rectangular movement prevents the material from flopping and ensures consistent stitch length regardless of fabric thickness. Paired with a quiet Electronic Servo Motor, this machine offers incredible precision and piercing power.

  • Rectangular Feed Locus: Promises consistent feeding of materials across all thicknesses, significantly reducing the risk of stitch gathering or "bird-nesting" on heavy seams.
  • Large Vertical-Axis Hook: Equipped with a high-capacity bobbin to accommodate thick industrial threads and reduce the frequency of thread changes during production.
  • Dual-Tension Mechanism: Provides high-tension sewing support, ensuring well-tensed, professional-grade seams on heavy-weight materials.
  • Climbing Device: The machine maintains a consistent alternating vertical movement ratio, allowing the walking foot to "climb" over thick cross-seams without reducing the foot lift.
  • Whisper-Quiet Servo Motor: The 110V adjustable speed motor is 90% more energy-efficient than clutch motors and allows for stitch-by-stitch precision.
  • Safety Clutch Device: Automatically disengages the hook drive if a thread jam occurs, protecting the machine's timing and internal components from damage.
  • Automatic Lubrication: A centralized oiling system ensures all vital internal parts remain lubricated for high-speed durability.

Max. Sewing speed: 2500spm

  • Max. Stitch length: 9mm (Forward/Backward)
  • Needle Bar Stroke: 36mm
  • Lift of Presser Foot:
  • By Hand: 9mm
  • By Knee: 16mm
  • Thread take-up: Slide Type
  • Amount of Alternating Vertical Movement: 2.5~6.5mm
  • Hook: Full Rotary Vertical-Axis 2-Fold Hook (Latch)
  • Needle (at the time of delivery): 135 x 17 (Nm160) Nm125-Nm180
  • Thread: #30~#5, B46~b138, Nm=60/3~ 20/3
  • Pitch Changing Method: By Dial
  • Feed Mechanism: Box Feed
  • Bobbin Thread Winder: Yes
  • Knee-Lifter Mechanism: Yes
  • Safety Mechanism: Yes
  • Lubrication:  Automatic Lubrication
  • Distance from Needle to Machine Arm: 10.3 inches x 3.8 inches
  • Bed Size: 20.3 inches x 7.1 inches
  • Reverse Stitch adjusting method: By Lever
  • Weight of the Machine Head: 125 lb

The FY-1510 is engineered for high-demand, heavy-weight tasks:

  • Automotive Upholstery: Car seats, interior trim, and airbags.
  • Furniture Work: Leather sofas, heavy cushions, and recliners.
  • Travel Goods: Luggage, handbags, and heavy-duty backpacks.
  • Outdoor Equipment: Tents, sails, awnings, and cargo handling belts.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
