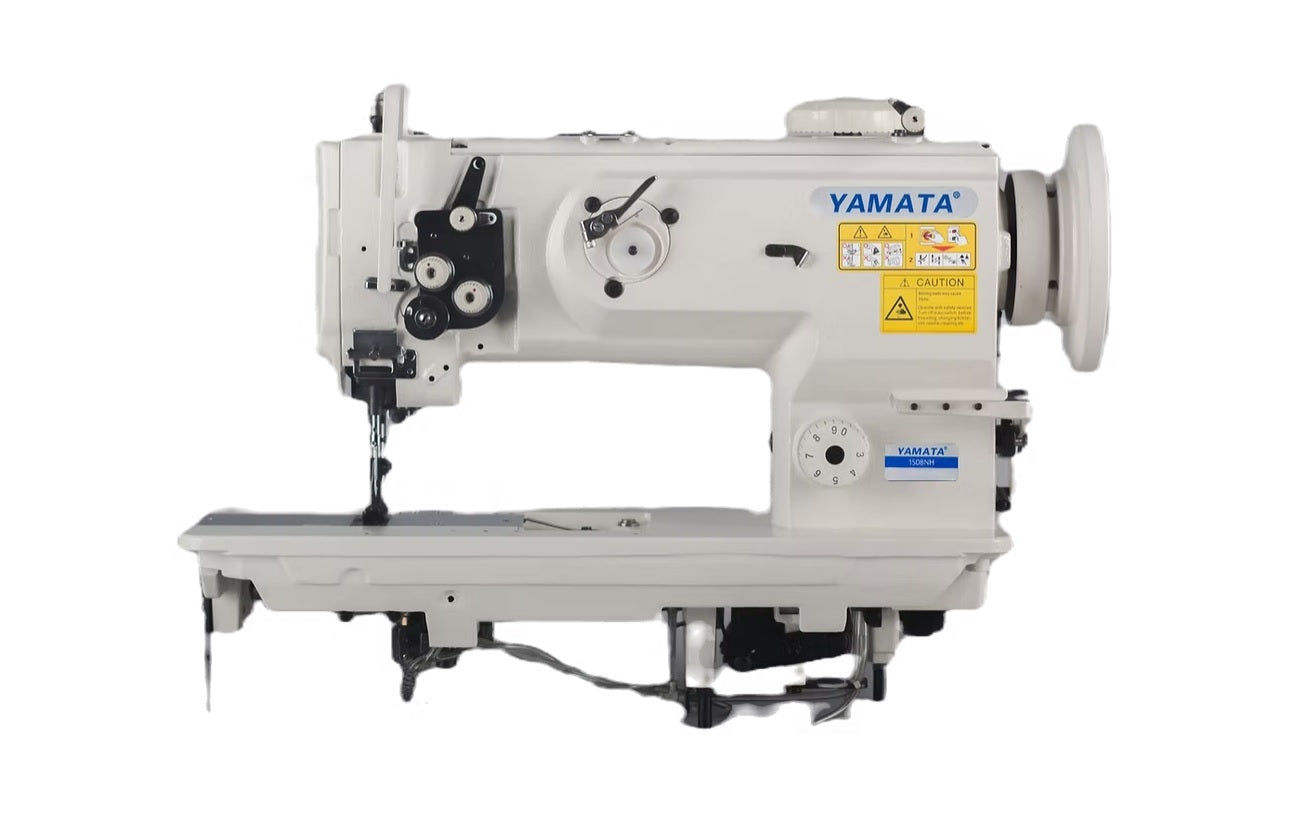

Yamata FY-1508NH Extra Heavy-Duty Single Needle Walking Foot Machine

Yamata FY-1508NH Extra Heavy-Duty Single Needle Walking Foot Machine

FY-1508NH

$2,799.95
$2,799.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application

Yamata FY-1508NH

is the heavy-duty sibling of the FY-1510, specifically engineered for extra-heavy materials.3 Built as a high-performance alternative to the Juki LU-1508NH, this machine features an increased 38mm needle bar stroke and utilizes the longer 190R needle system. These modifications allow the machine to penetrate exceptionally thick fabric stacks and dense leathers that standard industrial machines cannot handle.

The machine's Complete Rectangular Feed Locus ensures that the feed dog remains in contact with the material longer, providing a powerful, consistent pull that prevents stitch gathering (puckering). Whether you are manufacturing cargo straps, heavy upholstery, or technical gear, the FY-1508NH provides the rugged reliability needed for 24/7 production.

About the FY-1508NH

High-Quality & Economical Prices

The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering.The 1508NH is very much like a Juki 1508NH with some improvements such as an adjustable Climbing Device and an Adjustable Take-Up Guide for thread loop timing

  • Extra-Heavy Capability (NH Version): Specifically modified with a higher needle bar stroke (38mm) and a reinforced feed system for maximum piercing power.
  • 10mm Max Stitch Length: Offers one of the longest stitch capabilities in its class, perfect for both structural integrity and bold, decorative top-stitching.
  • Complete Rectangular Feed Locus: Unlike elliptical feed motions, this rectangular movement ensures the feed dog moves horizontally across the material, preventing "flopping" and uneven stitches.
  • Specialized 190R Needle System: Uses longer needles to support sewing through extremely thick layers without deflection or skipped stitches.
  • Large Vertical-Axis Hook: The double-capacity hook allows for the use of extra-thick threads (up to #0 / Tex 270) and minimizes bobbin changes.
  • Safety Clutch Reset Button: Built-in protection automatically disengages the hook if the thread jams; it can be reset easily with the push of a button.
  • Adjustable Climbing Device: A top-mounted dial allows the operator to adjust the walking foot's lift on the fly to "climb" over thick cross-seams or varying material heights.
  • Max Sewing Speed : 2,000 SPM (Stitches Per Minute)
  • Max Stitch Length : 10mm (Forward & Backward)
  • Feeding Mechanism : Unison Feed (Walking Foot / Triple Feed)
  • Needle System : 190R / MTx190 (Standard Size #160/23)
  • Needle Bar Stroke : 38mm (Extra-Long)
  • Presser Foot Lift : 9mm (Hand) / 16mm (Knee)
  • Hook Type : Vertical-Axis Double-Capacity Hook
  • Working Space : 255mm (10 inches)
  • Motor Type9 : 550W–750W Electronic DC Servo Motor (110V)10

The FY-1508NH is the "muscle" of the workshop, ideal for:

  • Marine & Rigging: Boat covers, lorry curtains, and cargo handling belts.
  • Heavy Upholstery: Leather sofas, theater seating, and thick foam-backed panels.
  • Technical Gear: Safety harnesses, parachutes, and heavy-duty canvas bags.
  • Extra-Thick Leather: Saddlery, knife sheaths, and multi-layered leather belts.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
