Tajima Thread Tension Gauge Tool for Embroidery US SELLER FREE SHIPPING

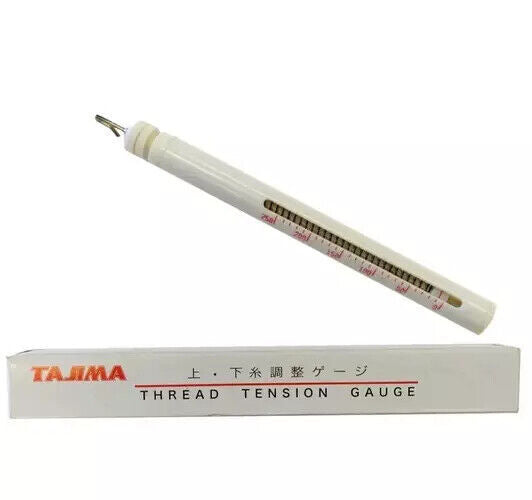

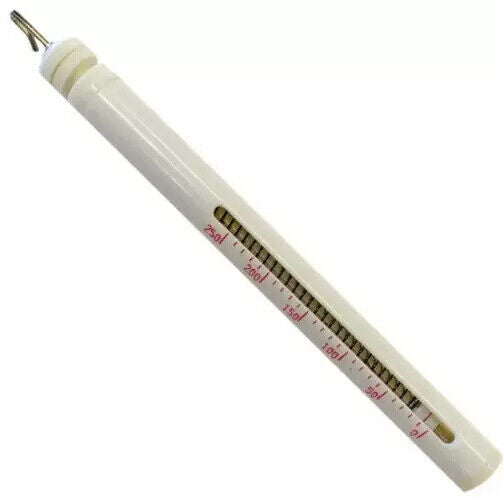

Tajima Thread Tension Gauge
The Tajima thread tension gauge tool enables embroiderers to measure and adjust top thread tension on commercial and home machines. The tension gauge is attached to the top thread from the presser foot, and by pulling on the thread, the embroiderer can determine the tension the embroidery machine is exerting on the thread. Then, adjust the top tension until the desired level of embroidery thread tension has been obtained.
Madeira Rayon thread usually should run between 110-125 grams.
Madeira Polyester thread usually should run between 115-130 grams.
How to Use an Upper Thread Tension Gauge
Take the guesswork out of setting thread tensions. Using thread tension gauges makes adjusting both bobbin and upper tensions easy. It's quick and easy and will help you eliminate unsightly bobbin thread showing on top, looping top stitches, and thread breaks. Your embroidery will look its best with consistent, balanced thread tensions. Here's how to use a top embroidery thread tension gauge to remove the tension from setting tensions!
Instructions for Use:
Pull approximately 6 inches of thread through the needle and presser foot.
Wrap the thread around the gauge hook (sometimes, it's necessary to wrap it several times to avoid slipping).
Steadily pull the gauge towards you with the window of the barrel facing up.
As you pull, take note of the reading. These represent tension readings in grams. Polyester threads require higher tensions than Rayon. Polyester tensions 120 to 150 grams. Rayon tensions 100 to 120 grams.
Adjust your machine's main tension knob until you get the desired reading.
Once you have adjusted your thread tensions, running tests is always a good idea.
First, run the fill stitch test pattern.
If you experience any top stitch looping, slowly tighten the main upper tension knob until this looping goes away (looping can also occur if your bobbin tension is too tight).
Proper tensions for satin stitches should reveal 1/3 bobbin and 2/3 top thread color on the underside of the embroidery.
Note:
Too much bobbin showing on the underside or showing on the topside usually means either the bobbin tension is too loose or the top thread tension is too tight
Top thread tensions may vary up or down by as much as 5 to 10 gf.
-
Rayon #40:
150gf
-
Polyneon #40:
170gf
-
Metallic #40-50:
170gf
- Polyester CR #40: 125gf
Ships from LOS ANGELES, CA
FREE SHIPPING!
About Us
Established in 1990 in the world-renowned Fashion District of Los Angeles, Avieleah Supplies Center, the online division of Golden Cutting and Sewing Supplies, has quickly grown from its modest roots to an international supplier and the premier online destination for all of your fashion and sewing supplies. Whether its basic garment or craft supplies to sophisticated sewing equipment, we have all your needs covered.
Just a few of the kinds of products we carry include:
- Sewing machine parts and accessories
- Specialty thread
- Fabric cutting equipment
- Dress and body forms
- Grommets and grommet machines
- Iron and steam presses
- Snaps and snap presses
Our custom lines of manufactured goods include such premium names as:
- GoldStar
- New-Tech
- Steam-Tech
- Sew-Tech
Customized Products and Large Wholesale Orders
We take pride in handling all of our customer's needs, whether you are an individual hobbyist or a large national retailer. Please contact us with questions about filling large orders or inquiring about our line of custom machines and products.
Our Guarantee
We are so confident in our ability to offer our customers durable, high-quality goods, we stand behind our products with a warranty and money back guarantee on every item sold on our website. Our attention to quality workmanship and high priority for customer satisfaction is what sets us apart from our competitors.
Payment
Payment
Directly following the placement of your order an invoice will be sent to the email address registered with eBay. If an email from us has not been received, check your spam folder, if it's not there, Contact Avieleah Supplies Center on eBay.
Do we accept PayPal?
YES! We accept PayPal payments from all countries. Please be advised PayPal payments may be subject to verification to protect against fraudulent accounts.
Alternate Billing/Shipping Address:
If your shipping address is different than your billing address, certain verification will be necessary. On payments made through credit card with an alternate shipping address, Avieleah Supplies Center will request a secondary address to be listed with the issuing bank.What happens if we need more verification?
If we require further verification, we will send you an email at the email address registered with eBay, or contact you at the phone number provided.
Avieleah Supplies Center reserves the right to refuse orders which the address, phone number or credit card cannot be verified.
International Orders:
International orders may be subject to local import fees, duty, customs, VAT charges or additional taxes, depending on the country of destination tax laws.
Avieleah Supplies Center is not responsible for any of these tax charges, nor can we offer any specific advice on import fees, duty, customs, VAT or taxes that you may be obligated to pay upon the arrival of your merchandise. Should you have any questions or requests for specific information regarding any of these potential charges, we advise you to consult with your local government import office.
Shipping
Most Items are shipped FREE:
Standard shipping takes 6 to 8 (3-day handling time + 3-5 days transit time) business days.*
Each additional item is also shipped for FREE and orders may be combined.Order processing at Avieleah Supplies Center takes place Monday through Friday when your item will be processed for shipping. Estimated delivery dates include handling time, and will depend on receipt of cleared payment. Delivery times may vary, especially during peak periods. Any request for shipping verification, or filing a claim for an undelivered package, must be made within 30 days of shipment.
* Please be aware that in order for combine shipping to take place, all items must be purchased using the "Add to Cart" button through eBay checkout.
Terms
Returns
Returning Your Order: If you need to return something, we will happily accept your return for a refund within 60 days from the day it was delivered to your door. If you miss the 60-day window, we can exchange your item(s) so that you can find something else you'll love.
Return Process:
- Submit return request via the eBay Returns Portal.
- Find the item in My eBay under Purchase History and select Return this item from the More actions drop-down menu.
- Select the reason for the return.
- Please ship the product back to Avieleah Supplies Center with all original parts.
- Return shipping is the responsibility of the customer.
- Our returns team will quickly ship your replacement or refund your payment.
JUKI DDL-8700 FAQs
What kind of needles do you use in the DDL-8700?
The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.
Where does the machine oil go?
A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.
What kind of oil does this machine require?
You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.
What size table can I get with this machine?
Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.
Does the DDL 8700 make buttonholes?
No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
