Spring Snap Links

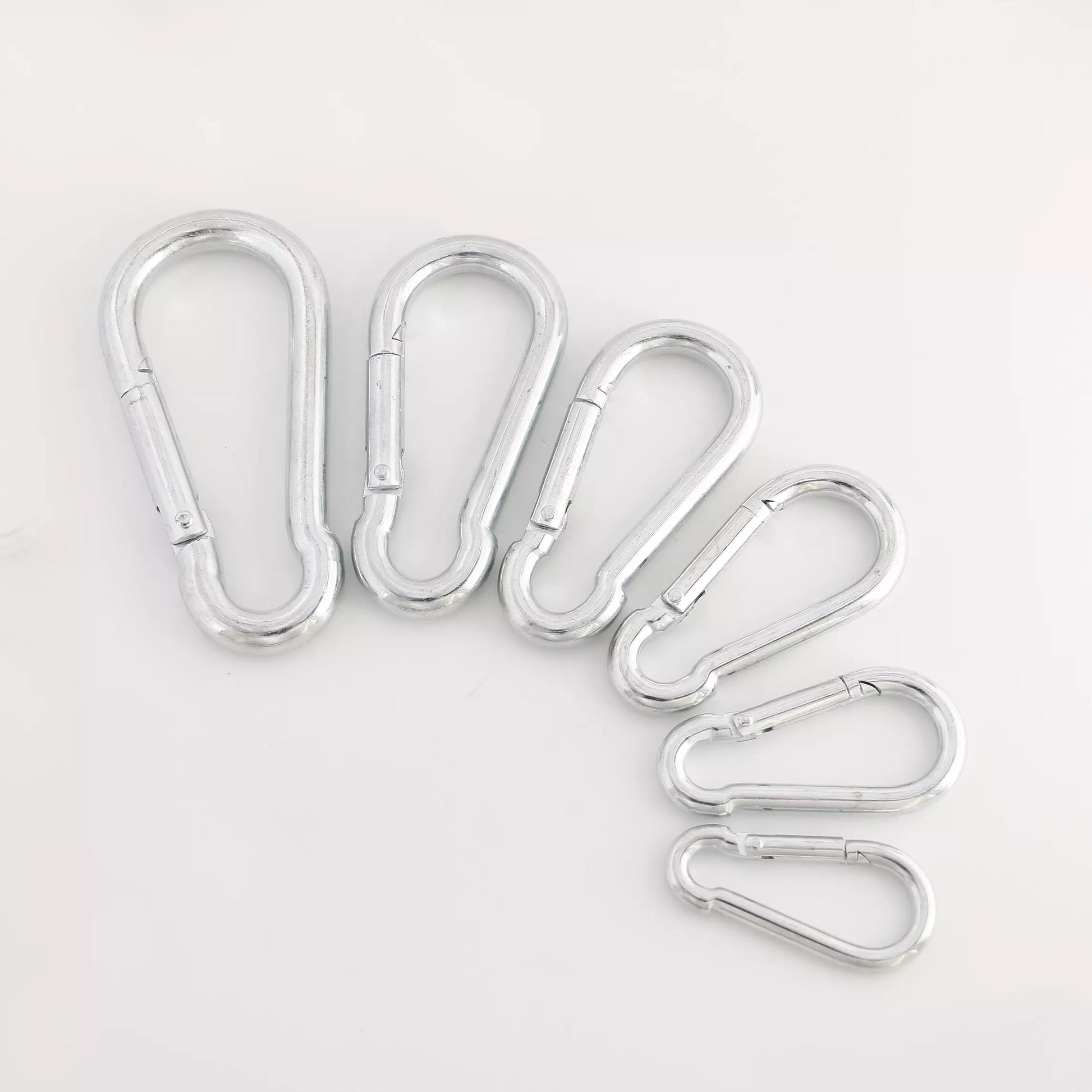

These silver zinc plated steel Spring Snap Links are designed for quick repair of low carbon steel chain and for joining attachments. Snap links require no tools for assembly, simply push the spring lock onto the desired attachment. Snap links are removable and reusable. Use with chain of equal or lower working load limit.

2" - 60.3mm

  • Working Load Limit (WLL): 105 lbs
  • Link Diameter (A): 3/16" - 5.7mm
  • Inside Eye Width (B): 0.19" - 7.6mm
  • Eye Width (C): 0.31" - 9mm
  • Overall Length (D): 2" - 60.3mm
  • Link Opening (E): 0.25" - 8mm
  • Inside Length (G): 1.62" - 5mm

2.38" - 70mm

  • Working Load Limit (WLL): 395 lbs
  • Link Diameter (A): 1/4" - 6.7mm
  • Inside Eye Width (B): 0.28" -9.5mm
  • Eye Width (C): 0.31"  - 11mm
  • Overall Length (D): 2.38" - 70mm
  • Link Opening (E): 0.31" - 10.8mm
  • Inside Length (G): 1.92" - 57.3mm

3.13" - 80.2mm

  • Working Load Limit (WLL): 500 lbs
  • Link Diameter (A): 5/16" - 7.7mm
  • Inside Eye Width (B): 0.38" -9.8mm
  • Eye Width (C): 0.44" - 12mm
  • Overall Length (D): 3.13" - 80.2mm
  • Link Opening (E): 0.38" - 12.2mm
  • Inside Length (G): 2.63" - 65.5mm

4" - 90.7mm

  • Working Load Limit (WLL): 770 lbs
  • Link Diameter (A): 3/8" - 8.5mm
  • Inside Eye Width (B): 0.44" - 11.2mm
  • Eye Width (C): 0.63" - 14mm
  • Overall Length (D): 4" - 90.7mm
  • Link Opening (E): 0.63" - 14mm
  • Inside Length (G): 3.19" - 74.5mm

4.75" - 100.6mm

  • Working Load Limit (WLL): 900 lbs
  • Link Diameter (A): 7/16" - 9.4mm
  • Inside Eye Width (B): 0.56" - 13.6mm
  • Eye Width (C): 0.75" - 15.4mm
  • Overall Length (D): 4.75" - 100.6mm
  • Link Opening (E): 0.69" - 14.5mm
  • Inside Length (G): 3.86" - 83mm

5.63" - 119mm

  • Working Load Limit (WLL): 900 lbs
  • Link Diameter (A): 1/2" -10.5mm
  • Inside Eye Width (B): 0.75" -16mm
  • Eye Width (C): 0.94" - 18mm
  • Overall Length (D): 5.63" - 119mm
  • Link Opening (E): 0.75" - 18mm
  • Inside Length (G): 4.61" - 98.4

Sold in single, 100 and 1000 pieces.



Warning: Not to be used for overhead lifting or climbing applications.
