Spare Parts Kit - JUKI MOL-254

Spare Parts Kit - JUKI MOL-254

40181179

Spare Parts Kit - JUKI MOL-254

$810.00
$810.00 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

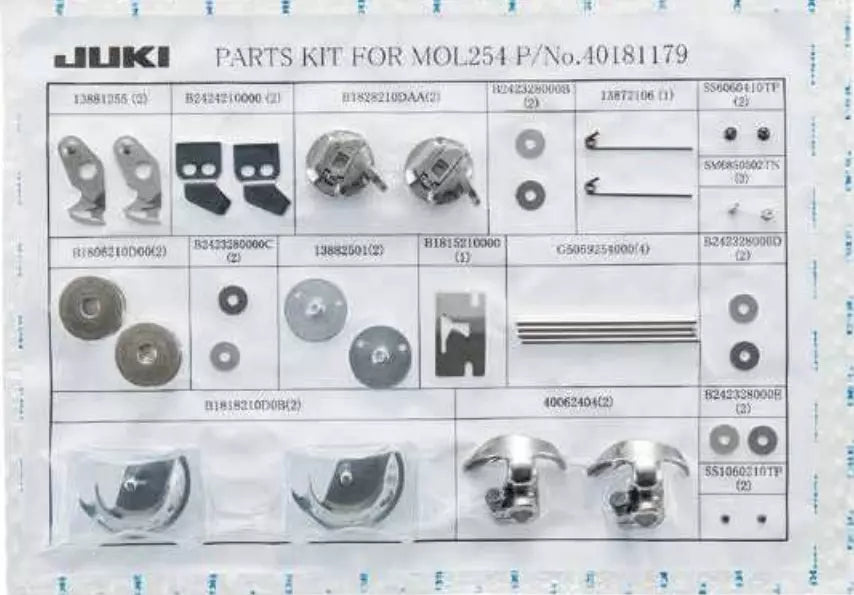

Spare Parts Kit - JUKI MOL-254

Part Number Description Quantity
13872106 Wiper 2
13881255 Moving Knife Junction; 2
13882501 Needle Hole Guide 2
40062404 Shuttle Driver ASM; 2
B1806210D00 Bobbin 2
B1815210000 Inner Hook Upper Spring 1
B1818210D0B Shuttle 2
B1828210DAA Bobbin Case ASM. 2
B242328000B Moving Knife Washer B 2
B242328000C Moving Knife Washer C 2
B242328000D Moving Knife Washer D 2
B242328000E Moving Knife Washer E 2
B2424210000 Counter Knife 2
G5059254000 Lower Folding Dog 4
SM6850502TN Counter Knife 2
SS1060210TP Screw M2.5 L=5 2
SM1040650TP Screw 3/32-56 L=2.2 4
SS6060410TP Screw 3/32-56 L=3.5 2

DOWNLOADS:

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
