Spare Parts Kit - JUKI LBH-1790A

Spare Parts Kit - JUKI LBH-1790A

40164483

Spare Parts Kit - JUKI LBH-1790A

$359.99
$359.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

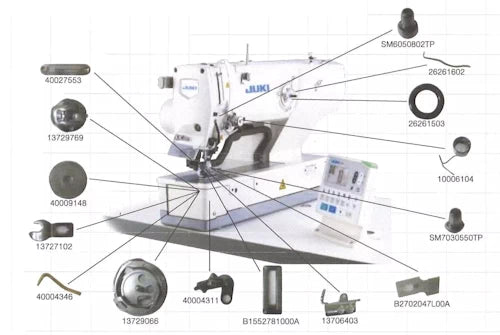

Spare Parts Kit - JUKI LBH-1790A

Part Number  Description Quantity
26261503 BTW Wheel Rubber 1
26261602 Bobbin Spring 1
10006104 Take-Up Spring 1
13729066 Hook ASM 1
13729769 Bobbin Case ASM 1
4000918 Bobbin 3
B1552781000A Work Clamp Check 1
SM7030550TP Screw M3 L=4.5 1
1370603 Needle Bar Bobbin Thread Guild 1
40004311 BT Trimmer 1
40027553 Throat Plate (1790S5) 1
413727102 Stopper 1
40004346 Picker 1
SM6050802TP Screw M5X0.8 L=8 1
B2702047L00A Knife 1/2 1

JUKIDOWNLOADS:

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
