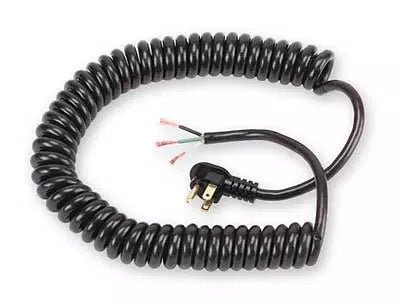

Retractable Coiled Power Supply Cord 20FT

Retractable Coiled Power Supply Cord 20FT

GS-2W551

Retractable Coiled Power Supply Cord 20FT

$59.99
$59.99 Market price: $99.99 Save 40%
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

Retractable Coiled Power Supply Cord 20FT

Coiled power cords are lengths of electrical cable encased in a flexible, spiral jacket that extend the reach of devices connected to a power source. Also known as self-retracting cords or retractile coil cords, they stretch to allow for more length and freedom of movement and automatically coil back up when not in use, taking up less space than other types of a power cords. They have a molded plug at one end that connects to an electrical outlet and bare wires at the other for wiring a device. These cords power portable tools and equipment in medical, commercial, and industrial environments.

Power cords, or power supply cords, are portable lengths of electrical cables used to connect devices and appliances to a power source. They are typically used on equipment without a power cord, such as dryers, ranges, and computer monitors. They have a molded plug at one end that connects to an electrical outlet and a socket or bare wire at the other that is attached or wired to the device. Select a power cord to match the amperage rating of the device and plug configuration of the outlet.


TECHNICAL SPECS

  • Wire Size: 16 AWG
  • Number of conductors: 3
  • Max Amps: 13.0 A
  • Temp Rating: 32 Degrees to 167 Degrees F
  • Connection Type: Bare leads
  • Cord length: 20 ft extended, 6 feet retracted
  • Voltage: 125V AC
  • Gauge/Conductor: 16/3
  • Plug Configuration: NEMA 5-15P
  • Nominal Outside Dia: 0.34 in
  • Standards: C-UL, OSHA, UL
  • Jacket Material: PVC
  • Jacket Color: Black

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
