  • Description

Raw Edge Binder Set

Part Number: S64
Alternate Part Number: F100, GO152

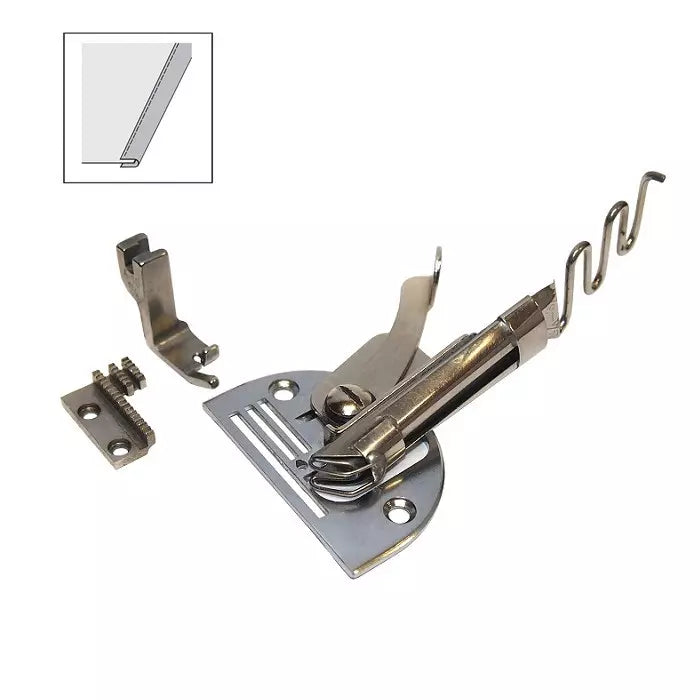

Includes: binder, presser foot, needle plate, feed dog

This is a right-angle plain binder for attaching tape or ribbon to all kinds of fabric. This binder folds the tape in half but does not under fold either the top or bottom Neither the top nor bottom edges of the tape are folded under for a raw finish.

For Installation: remove your presser foot, needle plate, and feed dog to install this attachment. This raw edge binder set has a special binder foot and feeder. The binder head is adjustable from left to right and up and down.

*Thumb Screw not included.

AVAILABLE SIZES:

  • Tape size: 13 mm (1/2") Finished size: 6.5 mm (1/4")
  • Tape size: 16 mm (5/8") Finished size: 7 mm (5/16")
  • Tape size: 19 mm (3/4") Finished size: 9.5 mm (3/8")
  • Tape size: 28 mm (1-1/8") Finished size: 14 mm (9/16")
  • Tape size: 30 mm (1-3/16") Finished size: 15 mm (19/32")
  • Tape size: 32 mm (1-1/4") Finished size: 16 mm (5/8")
  • Tape size: 35 mm (1-3/8") Finished size: 17.5 mm (11/16")
  • Tape size: 38 mm (1-1/2") Finished size: 19 mm (3/4")

MACHINE COMPATIBILITY:

  • Artisan Models:  196R, 5550N, 8500N, ZJ-100
  • Brother Models:  B705, B707, B715, B716, B735, B737, B738, B745, B755, B757, B758, B767, B781, PQ1300, PQ1500
  • Consew Models:  30, 98, 99, 102, 103, 105, 210, 217, 218, 219, 220, 230, 231, 290, 310, 2230, 7360R-1
  • Econsew Models:  DDL-5550, DDL-8500, DDL-8700
  • Feiyue Models:  8500, 8700
  • Gemsy Models:  8700
  • Janome Models:  1600P, 1600DB, 1600DBX
  • JUKI Models:  DDL-127, DDL-227, DDL-500, DDL-552, DDL-553, DDL-555, DDL-5550, DDL-5600, DDL-8300, DDL-8500, DDL-8700, DDL-8900, DDL-9000, TL-98E, TL-98Q, TL-2000Qi, TL-2010Q
  • Mitsubishi Models:  DB-120, DB-121, DB-122, DB-126, DB-130, DB-170, DB-189, DB-199, LS2-130, LS2-150, LS2-180, LS2-190, LS2-1130
  • New-Tech Models: GC-8700
  • Necchi Models:  BU, Supernova, and others with the high shank presser foot system
  • Reliable Models:  MSK-8800, MSK-8550M, MSK-8870M
  • Rex Models:  RX8500
  • Singer Models:  31-15, 95, 96, 120U, 121C, 121D, 188K, 191D, 195K, 196K, 241, 251, 281, 366K, 400W, 402W, 451K, 491D, 591D, 600W, 660A, 691D, 770D, 771D, 2191, 2491D
  • Sunstar Models:  KM-123A, KM-123B, KM-137A, KM-137B, KM-146BL, KM-250
  • Tacsew Models:  5550, 8500, 8500-T, T8700
  • Taiko Models:  TK-505, TK-510
  • Yamata Models:  FY8500, FY8700

And many other comparable industrial lockstitch sewing machines.

Presser Foot Shank Type:  High Shank
Presser Foot Type:  Raw Edge Binder

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
