Quilters Swing Sewing Guide For Industrial Sewing Machines

Quilters Swing Sewing Guide For Industrial Sewing Machines

GS-SGQ1

Quilters Swing Sewing Guide For Industrial Sewing Machines

$19.99
$19.99 Market price: $39.99 Save 50%
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

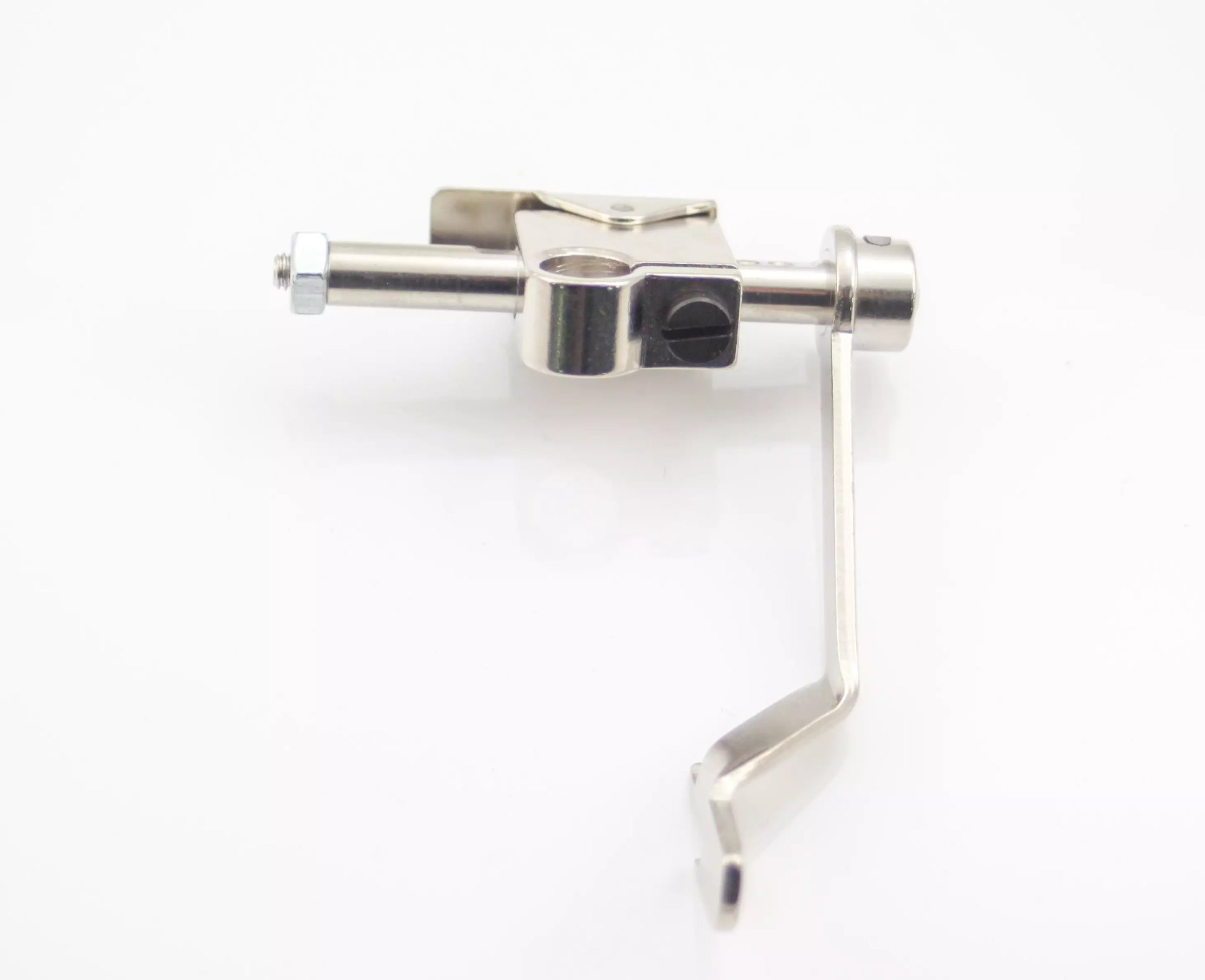

Quilters Swing Sewing Guide For Industrial Sewing Machines

Our quilting/edge guide is adjustable from 1/8" settings up to 1.1/8" to the right of the needle. It fixes onto the presser foot bar ( 9mm dia.) with just 1 screw to tighten to fit. Once fitted, swing the guide up when not needed.

This Quilters Sewing Guide For Industrial Sewing Machines will fit most standard industrial lockstitch sewing machines. Regular fitting clamps on presser bar Taper fitting clamps on presser bar bushing Adjustable in 1/8" steps.

MACHINE COMPATIBILITY:

  • Artisan Models:  196R, 5550N, 8500N, ZJ-100
  • Brother Models:  B705, B707, B715, B716, B735, B737, B738, B745, B755, B757, B758, B767, B781, PQ1300, PQ1500
  • Consew Models:  30, 98, 99, 102, 103, 105, 210, 217, 218, 219, 220, 230, 231, 290, 310, 2230, 7360R-1
  • Econsew Models:  DDL-5550, DDL-8500, DDL-8700
  • Feiyue Models:  8500, 8700
  • Gemsy Models:  8700
  • Janome Models:  1600P, 1600DB, 1600DBX
  • JUKI Models:  DDL-127, DDL-227, DDL-500, DDL-552, DDL-553, DDL-555, DDL-5550, DDL-5600, DDL-8300, DDL-8500, DDL-8700, DDL-8900, DDL-9000, TL-98E, TL-98Q, TL-2000Qi, TL-2010Q
  • Mitsubishi Models:  DB-120, DB-121, DB-122, DB-126, DB-130, DB-170, DB-189, DB-199, LS2-130, LS2-150, LS2-180, LS2-190, LS2-1130
  • Necchi Models:  BU, Supernova, and others with the high-shank presser foot system
  • Reliable Models:  MSK-8800, MSK-8550M, MSK-8870M
  • Rex Models:  RX8500
  • Singer Models:  31-15, 95, 96, 120U, 121C, 121D, 188K, 191D, 195K, 196K, 241, 251, 281, 366K, 400W, 402W, 451K, 491D, 591D, 600W, 660A, 691D, 770D, 771D, 2191, 2491D
  • Sunstar Models:  KM-123A, KM-123B, KM-137A, KM-137B, KM-146BL, KM-250
  • Tacsew Models:  5550, 8500, 8500-T, T8700
  • Taiko Models:  TK-505, TK-510
  • Yamata Models:  FY8500, FY8700

And many other comparable industrial lockstitch sewing machines.

Presser Foot Shank Type - High Shank
Presser Foot Type - Double Welting / Piping Foot

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
