Pneumatic Curtain Grommet Attaching Machine Bundle With Servo Motor #JLQ-01-125SH

Pneumatic Curtain Grommet Attaching Machine Bundle With Servo Motor #JLQ-01-125SH

JLQ-01-125SH

Pneumatic Curtain Grommet Attaching Machine Bundle With Servo Motor #JLQ-01-125SH

$1,999.99
$1,999.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

Pneumatic Curtain Grommet Attaching Machine Bundle With Servo Motor

Part Number - JLQ-01-125SH

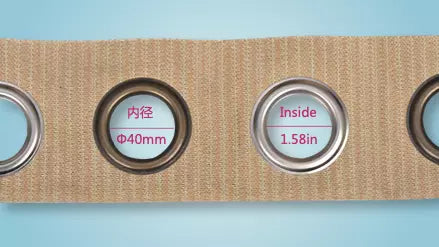

Bundle includes #12 Curtain Die and Hole Punch.

This machine is for the application of curtain grommets.  Separate corresponding buckets for buttons which start up automatically after startup.  It is driven by electric servo motor with foot petal application. For special sizes(large sizes) eyelet, snap ring, decoration button for the curtains, luggages, canvas tent etc.

Can be configurable with other option accessories to accommodate many types of snaps, eyelets, rivets and more.

MACHINE SPECIFICATIONS:

  • Drive Mode: Servo Motor
  • Working Voltage:  110V
  • Working Pressure:  0.15~0.8MPa
  • Attaching Button Pressure:  400~1900kgs (adjustable)
  • Button Attaching Frequency:  1~3 second
  • Air Displacement:  0.1m3/minute
  • Protection Way:  Intelligent armguard detection system
  • Positioning:  with Laser Positioning Light
  • Distance between up mold and down mold: 40mm
  • Adjust the down mold to get the best button attaching effect



JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
