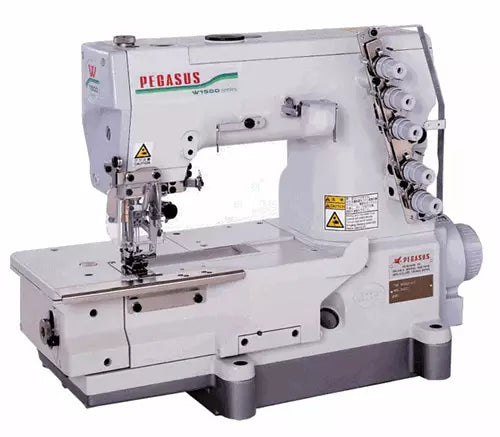

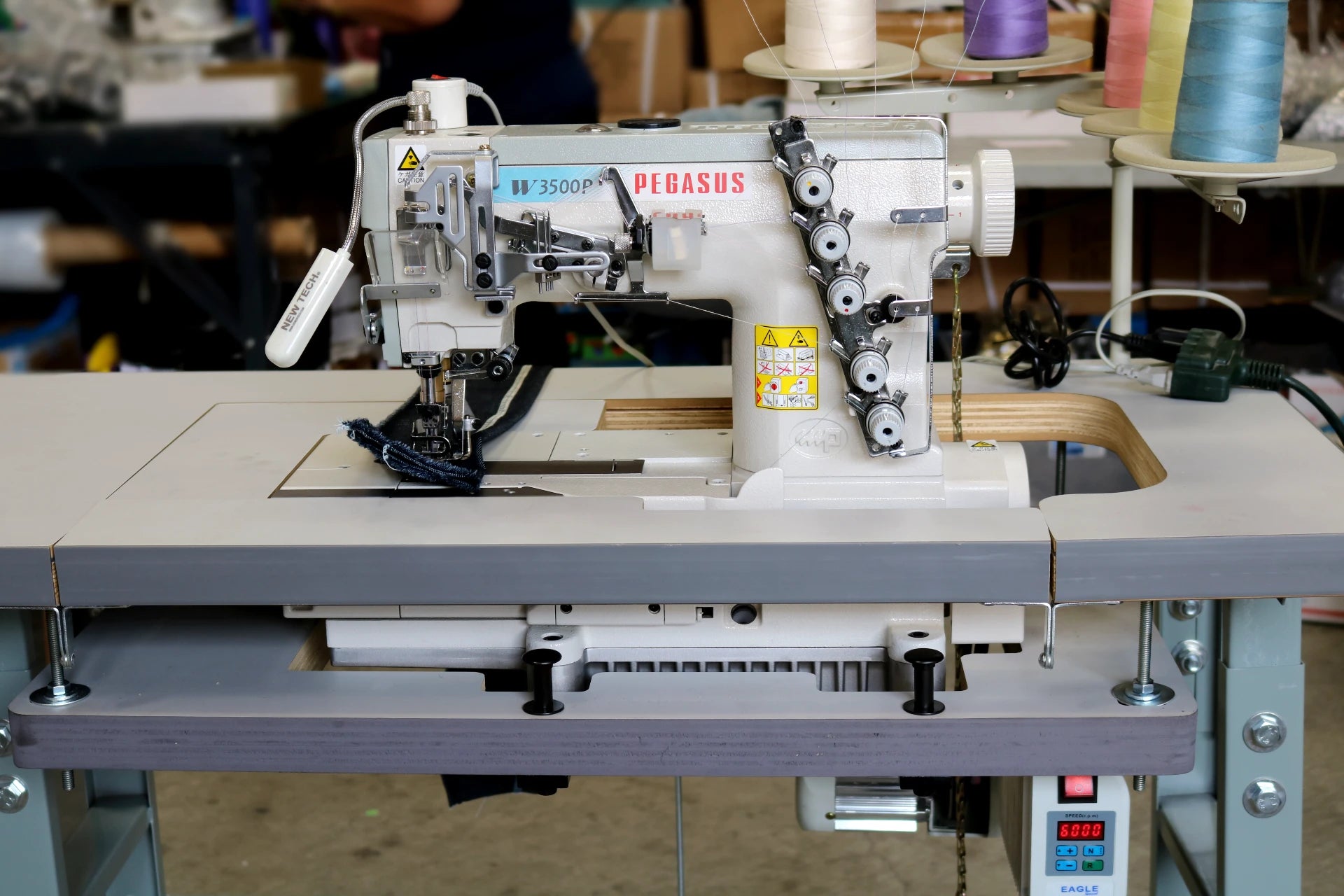

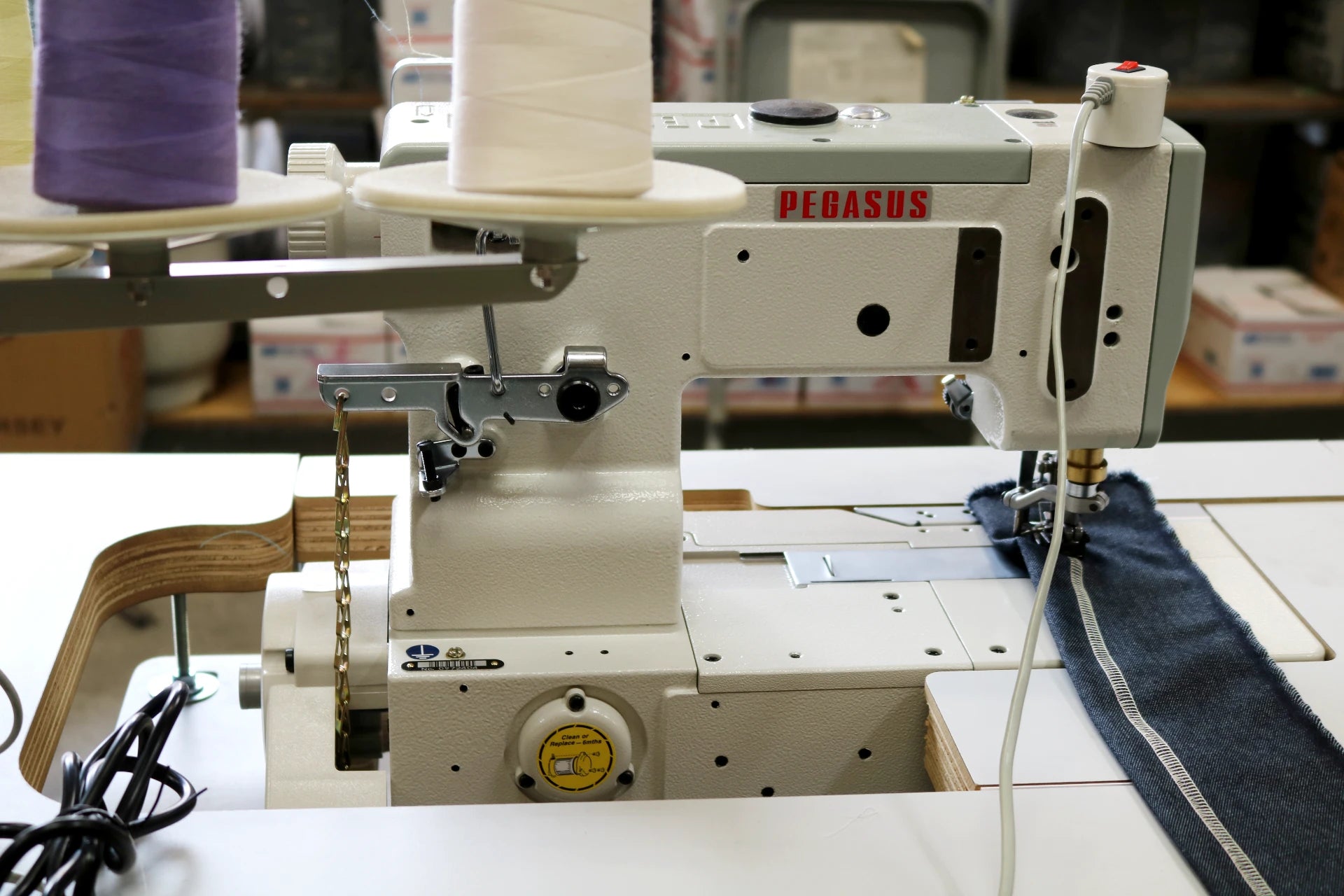

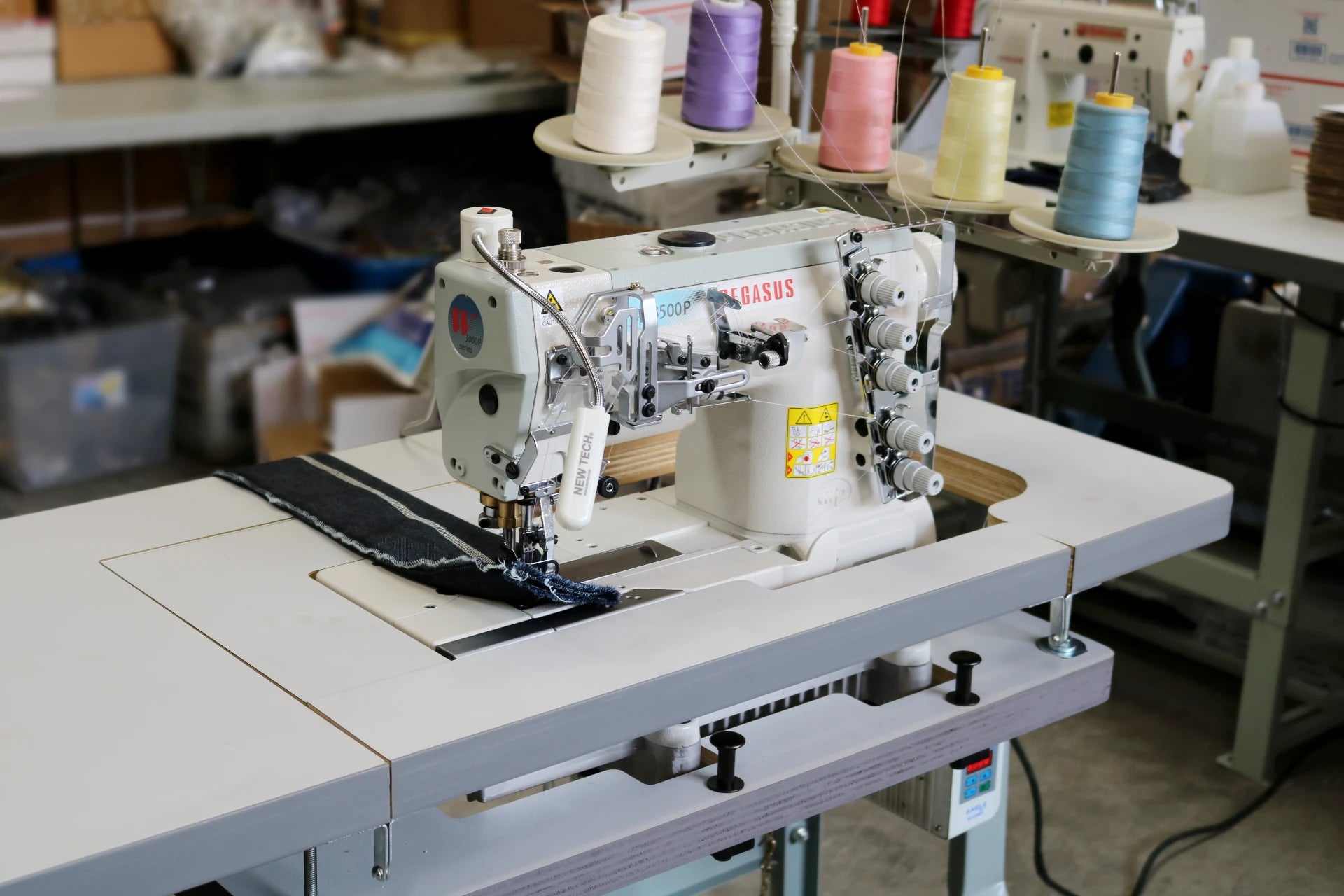

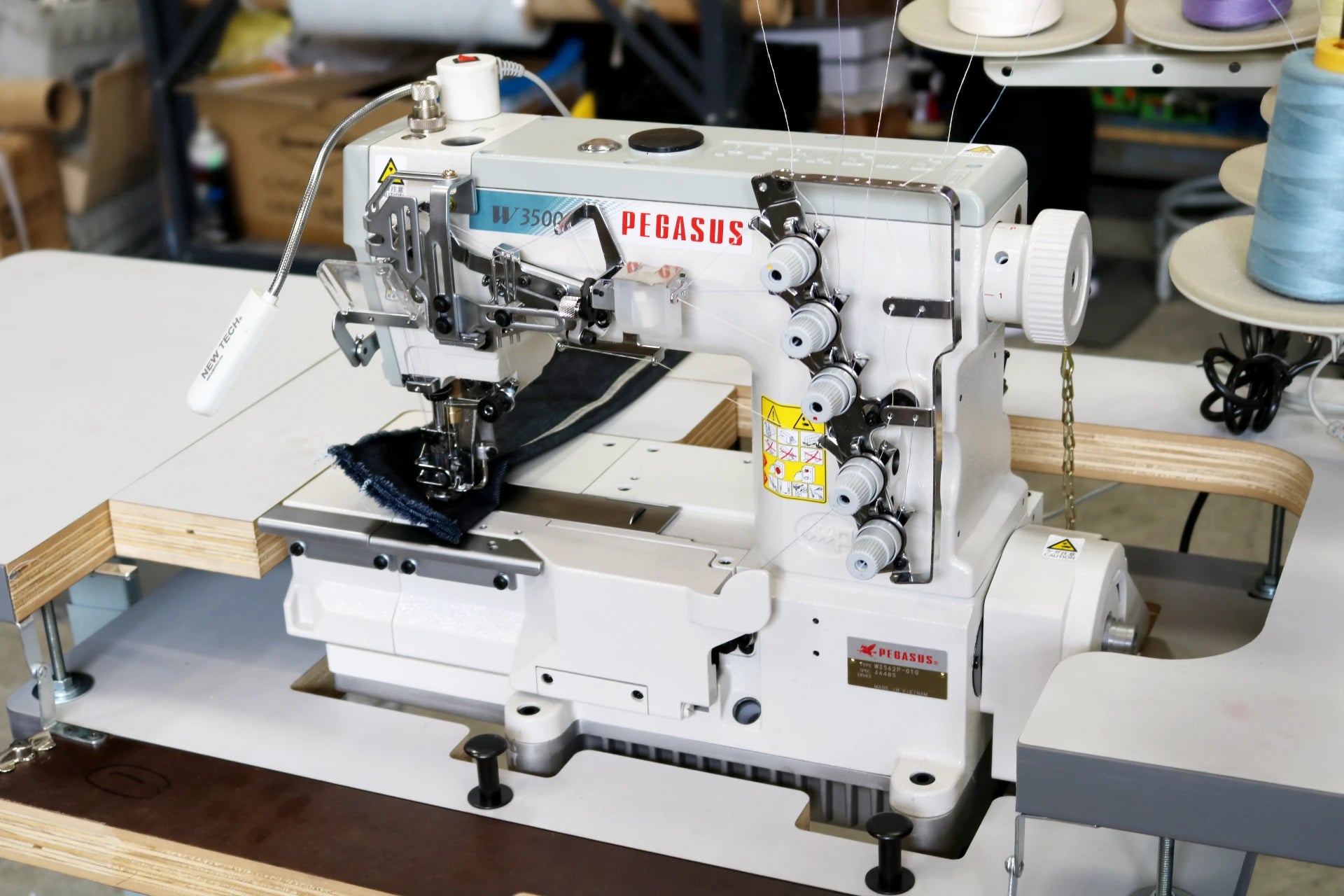

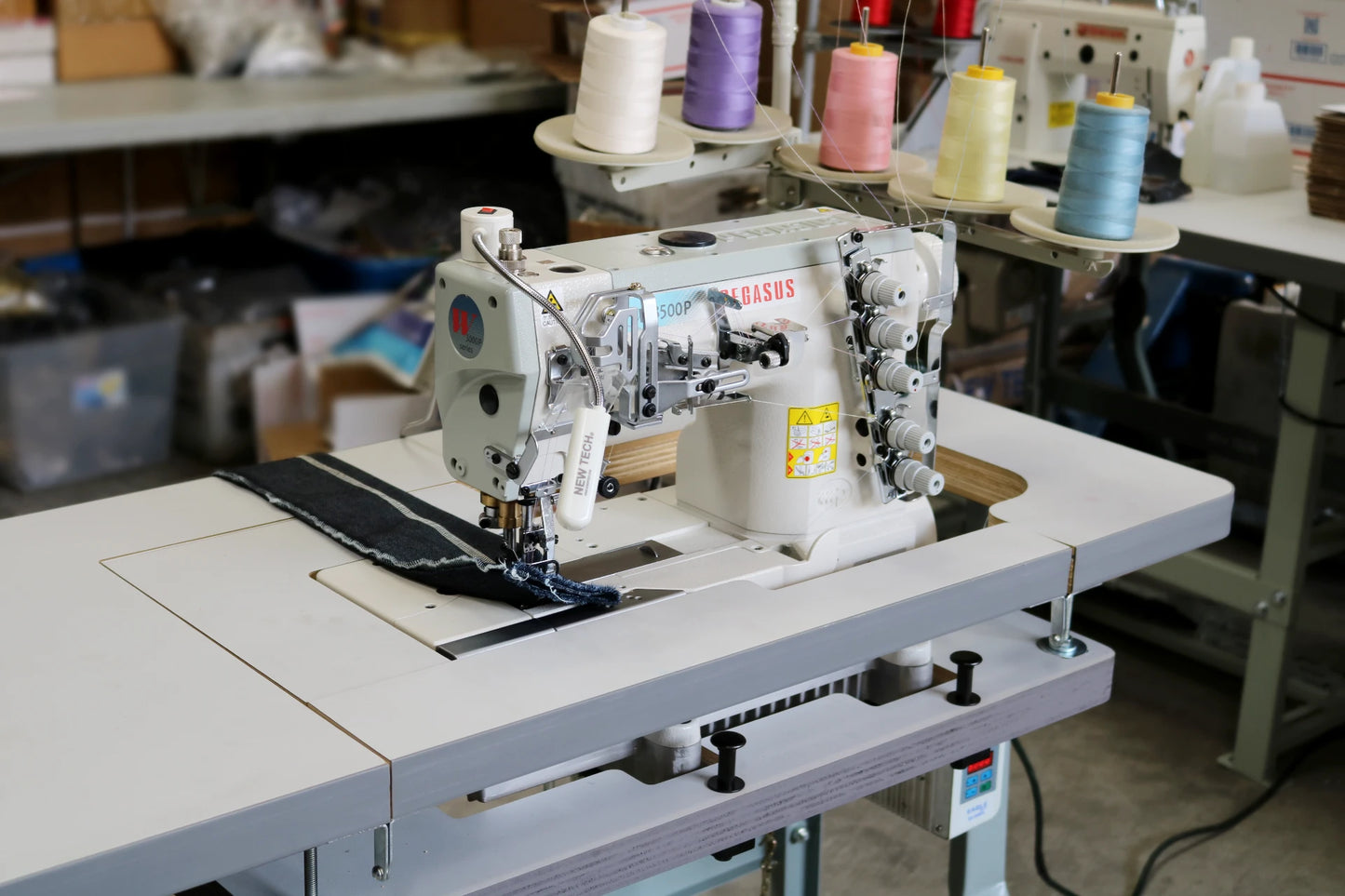

Pegasus W3562P-01 3-Needle 5-Thread Flatbed Coverstitch Industrial Sewing Machine

Pegasus W3562P-01 3-Needle 5-Thread Flatbed Coverstitch Industrial Sewing Machine

YHO_W3562P-01UT_127834967_127834969_127834971

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and Quiet Servo Motor

$3,895.00
$3,895.00 Market price: $4,256.00
Sale Sold out
Head Only
Regular Or Auto
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Pegasus W3562P-01

is a high-speed, industrial flatbed interlock stitch (coverstitch) machine built for professional hemming and decorative stitching. Unlike cylinder bed models, the flatbed design provides a large, stable workspace, making it ideal for sewing long, straight hems on T-shirts, knitwear, and activewear. This model features the legendary Oil Barrier Technology, which uses advanced seals to prevent oil leakage from the needle bar and looper, eliminating the risk of oil stains on expensive fabrics.

Why Choose the Pegasus W3500P Series?

When working with light-colored or delicate knit fabrics, a single oil spot can result in a rejected garment. The Pegasus W3562P-01 provides peace of mind by incorporating "Dry" technology into a high-speed industrial frame. It is the perfect blend of speed, reliability, and cleanliness for modern apparel factories.

  • Patented Oil Barrier Technology: Advanced "Oil-Block" seals at the needle bar and looper prevent oil from splashing or leaking onto the fabric, significantly reducing waste.
  • Large Flatbed Workspace: Provides a generous surface area for easy handling of large garment panels, ensuring consistent stitch alignment.
  • 3-Needle, 5-Thread Configuration: Offers maximum versatility—use it as a 3-needle coverstitch with top cover thread, or a 2-needle wide/narrow coverstitch.
  • Extreme High Speed: Capable of reaching up to 6,000 SPM, making it one of the fastest and most efficient coverstitch machines on the market.
  • Precision Differential Feed: Includes an easy-to-adjust differential feed ratio to prevent puckering on thin materials or stretching on heavy knits.
  • Energy-Efficient Servo Motor: The included 110V Servo Motor is silent when the pedal is not engaged and allows for precise speed control for intricate work.
  • Stitch Type: Interlock / Coverstitch (Stitch Type 605)
  • Number of Needles: 3
  • Number of Threads: 5
  • Max Sewing Speed: 6,000 SPM
  • Needle Gauge (Spacing): 5.6mm or 6.4mm (Standard options)
  • Stitch Length: 1.2mm to 4.4mm
  • Differential Feed Ratio: 1:0.5 to 1:1.3
  • Presser Foot Lift: 5.0mm (with top cover thread)
  • Needle System: UY128GAS
  • Lubrication: Fully Automatic (Oil Barrier System)

The W3562P is the workhorse for flat-surface coverstitching in the apparel industry:

  • T-Shirts & Polos: High-speed hemming of waistlines and long straight seams.
  • Activewear: Creating strong, flexible decorative seams on leggings, sports bras, and yoga gear.
  • Knitwear: Finishing hems on light to medium-weight sweaters and cardigans.
  • Loungewear: Comfortable, flat seams for pajamas and high-end jersey cotton items.
  • Underwear: Flat-stitching elastic and lace trims onto stretch fabrics.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Pegasus W3562P-01 Coverstitch Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
