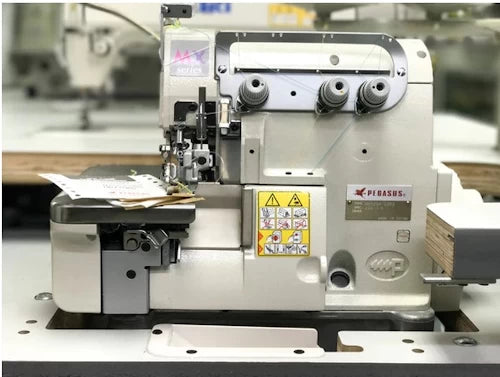

Pegasus MX5204-32R2/223L 1.5 Merrow High- Speed Turn Down Hemming Sewing Machine With Table and Servo Motor

Pegasus MX5204-32R2/223L 1.5 Merrow High- Speed Turn Down Hemming Sewing Machine With Table and Servo Motor

MX5204-32R2/223L

3-Thread Overlock System with Integrated Hemming Attachment

$1,999.99
$1,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

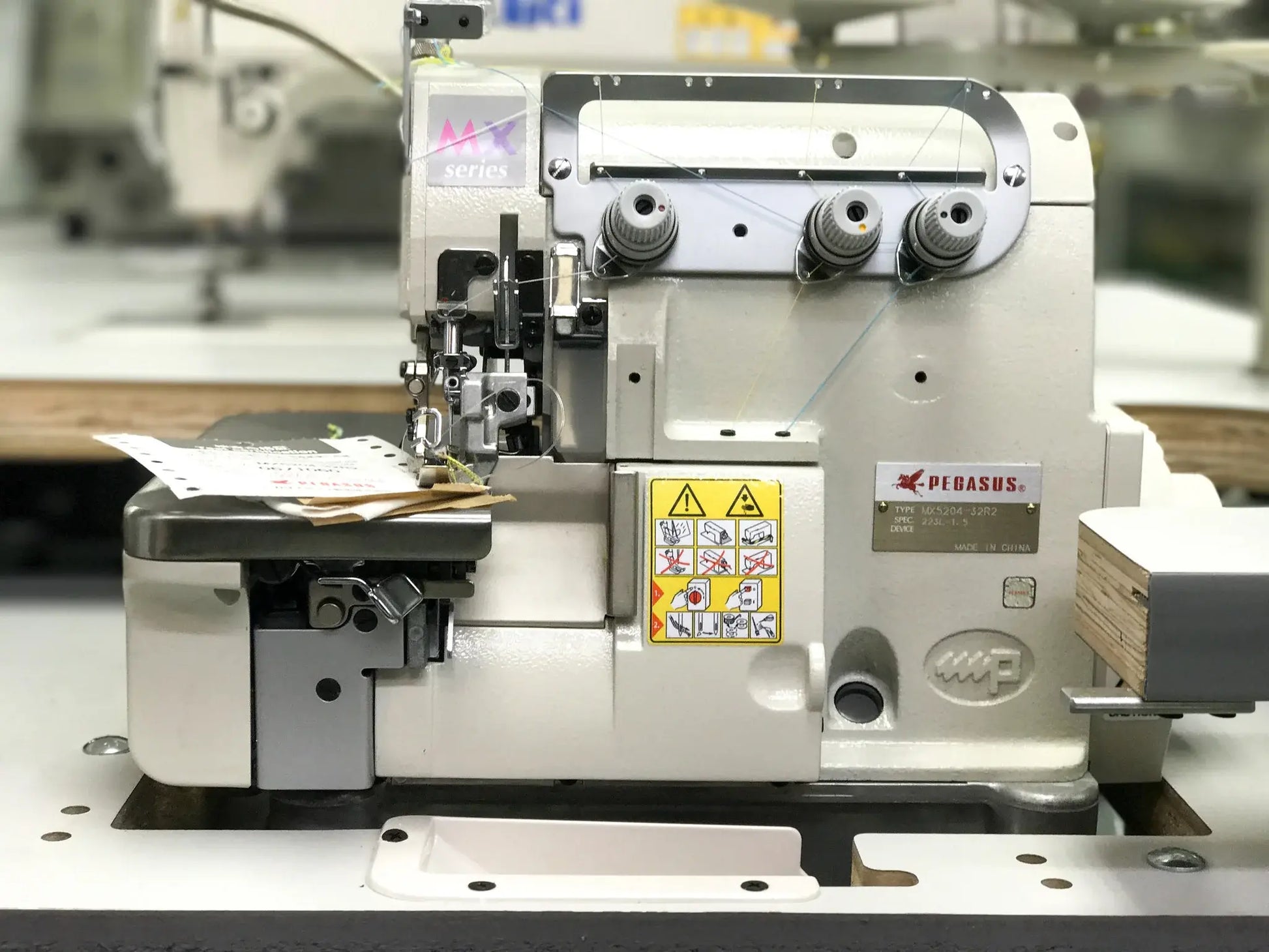

Pegasus MX5204-32R2/223L

is a high-performance 1-needle, 3-thread overlock machine optimized for light to medium-weight knit fabrics. This specific configuration includes a specialized Turn-Down Hemming attachment, allowing operators to create clean, professional folded hems on sleeves and bottoms in a single pass. Featuring Pegasus’s world-leading oil-blocking technology, this machine ensures your garments remain pristine and stain-free throughout the sewing process.

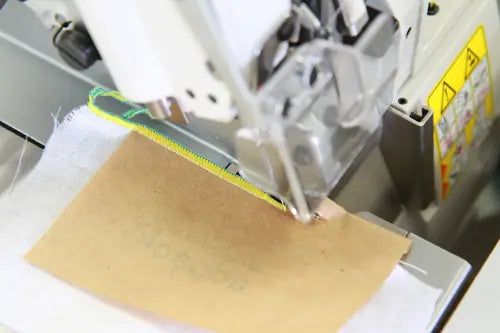

  • Specialized Hemming Attachment: Equipped with a precision folder that automatically turns down the fabric edge to create a uniform, high-quality hem.
  • Advanced Oil-Blocking (MX Series): Features a specialized oil seal in the needle bar and upper looper area to prevent oil splashes and leakage—crucial for light-colored and delicate knitwear.
  • High-Speed Performance: Capable of operating at speeds up to 7,000 stitches per minute, maximizing throughput in industrial environments.
  • Stainless Steel Fabric Plate: The surface is treated to ensure smooth fabric flow, preventing snagging or gathering during high-speed operation.
  • Easy Maintenance: Designed with a removable needle bar oil seal and simplified looper area for quick cleaning and adjustment.
  • Precision Differential Feed: Features a micro-adjustable differential feed ratio to prevent fabric waving or puckering on stretchy knit materials.

Fabric Weight: Light ~ Medium

  • Lubrication: Fully automatic
  • Max Speed: 8,000 sti/min
  • Stitch Length Adjustment: Push Button
  • Differential Feed Ratio Adjustment: Lever with micro-adjustment
  • Feed Mechanism: Bottom Feed
  • No. of Needles: 1
  • No. of Threads: 3
  • Overedge Width: 1.5
  • T-Shirts & Polos: Professional hemming on sleeves and bottom edges.
  • Underwear & Lingerie: Creating soft, non-irritating hems on delicate knits.
  • Activewear: High-speed assembly of moisture-wicking garments.
  • Children’s Wear: Uniform, durable hemming for high-stretch apparel.

DOWNLOADS:

Pegasus MX Series Catalog

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
