Parts Kit 9000CS-H Type-JUKI #40219027

Parts Kit 9000CS-H Type-JUKI #40219027

40219027

$59.99
$59.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

Parts Kit-JUKI #40219027

Part Number:  40219027

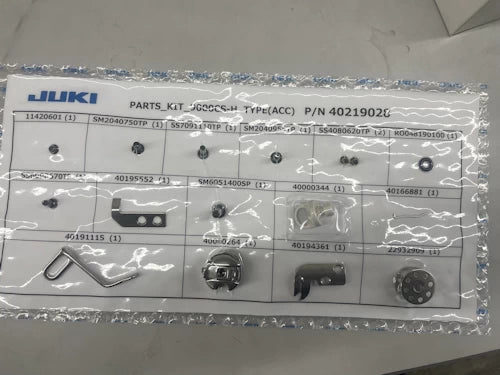

This kit includes the following items

    Part Number Description Quantity
    11420601 Fixed Knife Screw 1
    SM2040750TP Screw M4 L=7.4 1
    SS7091110TP Screw 9/64-40 L=10.5 1
    SM2040955TP Screw M4 L=8.5 1
    SS4080620TP Screw 1/8-44 L=6 2
    RO048190100 Rubber Ring 1
    SS6090670TP Screw 9/64-40 L=6 1
    40195552 Thread Trimmer Knife 1
    SM6051400SP Presser Guide Bracket Screw 1
    40000344 Lubricating Inlet Cap 1
    40166881 Bobbin Fixed Spring 1
    40191115 Bobbin Presser N 1
    40000264 Bobbin Case Assembly 1
    40194361 Handling Device Knife 1
    22932909 Bobbin 1

    JUKI DDL-8700 FAQs

    What kind of needles do you use in the DDL-8700?

    The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

    Where does the machine oil go?

    A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

    What kind of oil does this machine require?

    You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

    What size table can I get with this machine?

    Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

    Does the DDL 8700 make buttonholes?

    No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
