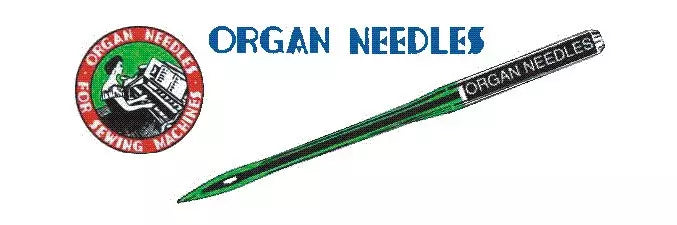

Organ - Industrial Sewing Machine Needle System 134R / 135×5 / 135×7

Organ - Industrial Sewing Machine Needle System 134R / 135×5 / 135×7

135x5

Organ - Industrial Sewing Machine Needles 134R /135×5 / 135×7

$4.99
$4.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

Organ - Industrial Sewing Machine Needle System 134R / 135×5 / 135×7

System 135×5 is generally used in single needle lockstitch industrial sewing machines. It is also known as 134R, 135×7, 135×25, 1901, DPx5, and DPx7.

Please note that 135×5 refers to the system, or type of needle; size (diameter) is denoted by the suffix. For example, 135×5-10 is the smallest, or thinnest size we offer in this brand; 135×5-23 is the largest, or thickest size. The eye of the needle increases with the thickness to allow for sewing heavier threads

Needles listed here are standard sharp point only.

A needle system is a group of needles made to fit specific sewing machines. All needles in a system are of the same length and shank size, but are of various diameters. Lower size numbers are narrower or thinner needles used for lighter materials. Higher size numbers indicate a needle of thicker diameter, used for heavier materials. Match your needle system to your machine, then the size of the needle to the product you are sewing.

MACHINE COMPATIBILITY:

  • Adler Models:  67, 69, 167, 267, 396, 971
  • Artisan Models:  20-53, 20-93, 196R-5, 518, 2220, 2240, 5110, 5550-H, ZH-305, ZJ-100-J, ZJ-8500-H
  • Bernina Models:  217N-04, 217N-06, 217N-08, 316
  • Brother Models:  B430, B431, B432, B433, B435, B518, B715, B781, B755, B781, B790, B814, B815, B830, B841, B842, B845, B847, B8450, B8750, B872, B875, BAS-301, BAS-310, BAS-320, BAS-330
  • Consew Models: 228R-11
  • Durkopp Models:  207, 211(most subclasses), 213, 215, 219(most subclasses), 220, 256, 263, 271, 272, 531, 551
  • GammillL Models:  QUILTERS
  • JUKI Models:  DLU-490, LBH-700 Series, LH-512, LH-515, LH-1152, LK-280, LK-980, LK-984, LK-987, LK-1850, LK-1852, LK-1853, LK-1854, AMS-505A, AMS-260A
  • Mitsubishi Models:  DB-120, DB-179, DB-327, DN-260, DN-275, DU-108, LT-200, LT2-220, LT2-230, LT2-250, LZ-200, LZ-750, LZ-760, PB-810-10, PB-820-10
  • Pfaff Models:  242, 244, 331, 441R, 442, 443, 461, 481, 483, 491, 493, 563, 1243, 1244, 1290, 1294, 1442, 3701, 3704, 3826, 3834
  • Singer Models:  20U, 61W, 107, 108W, 112, 120U, 121, 132W, 138, 143, 154, 167, 191D, 212, 212G, 220U, 312U, 366K, 371U, 457, 469U, 471U, 591, 660, 691, 770, 771, 2281, 2457, 3457, 3770, 3771, 4000
  • And many more !!

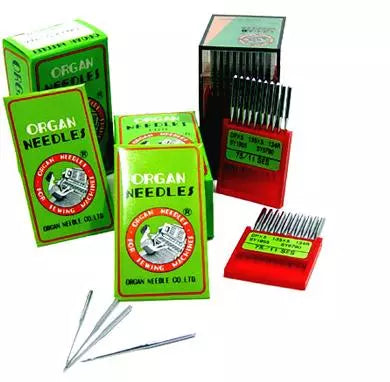

Sold in pack of 10, 50 and 100.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
