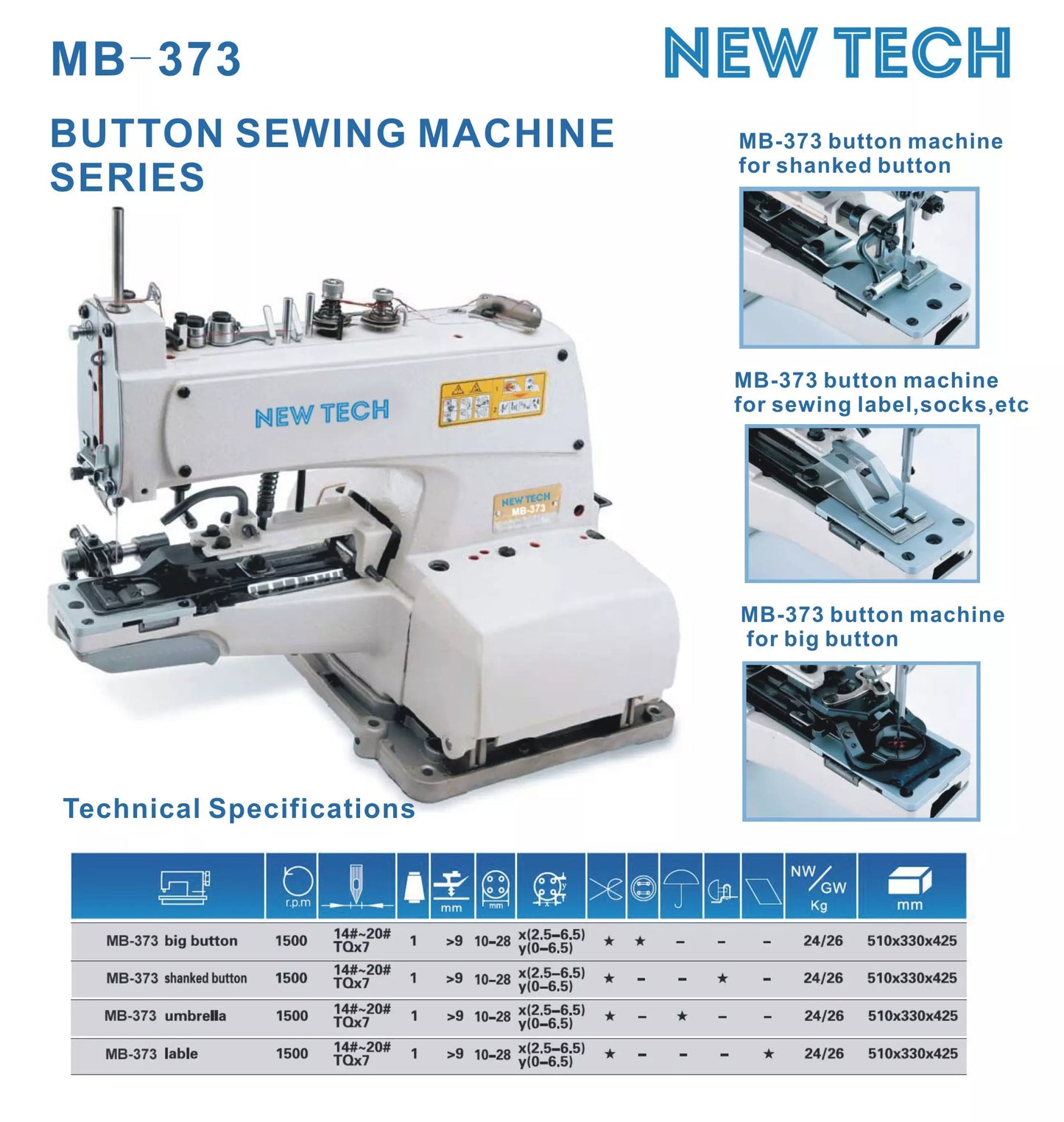

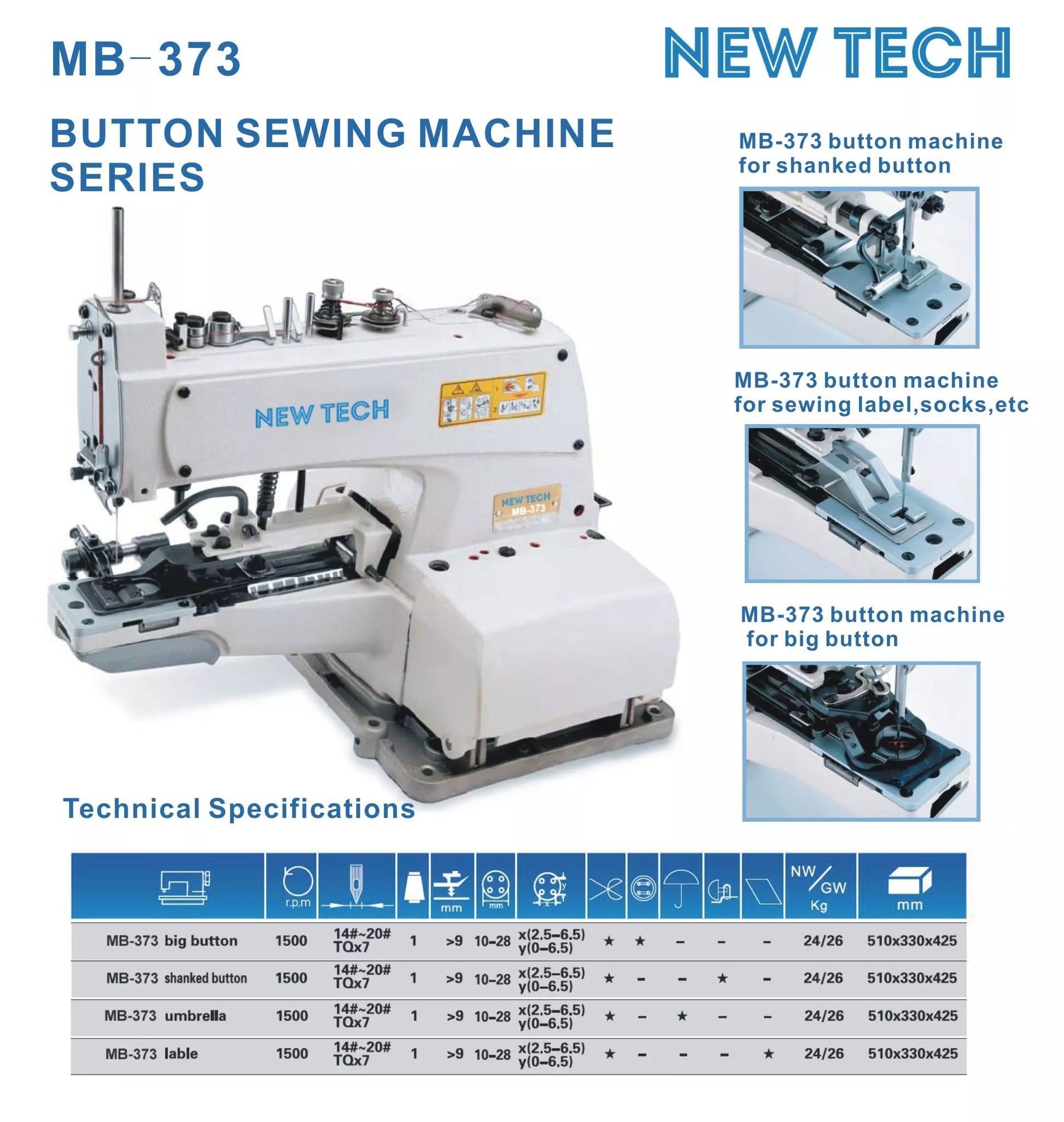

New-Tech MB-373 Industrial Chainstitch Button Attaching Sewing Machine

New-Tech MB-373 Industrial Chainstitch Button Attaching Sewing Machine

MB-373

High-Speed Single-Thread Button Sewer with Automatic Thread Trimmer, Table, and Servo Motor

$1,299.99
$1,299.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

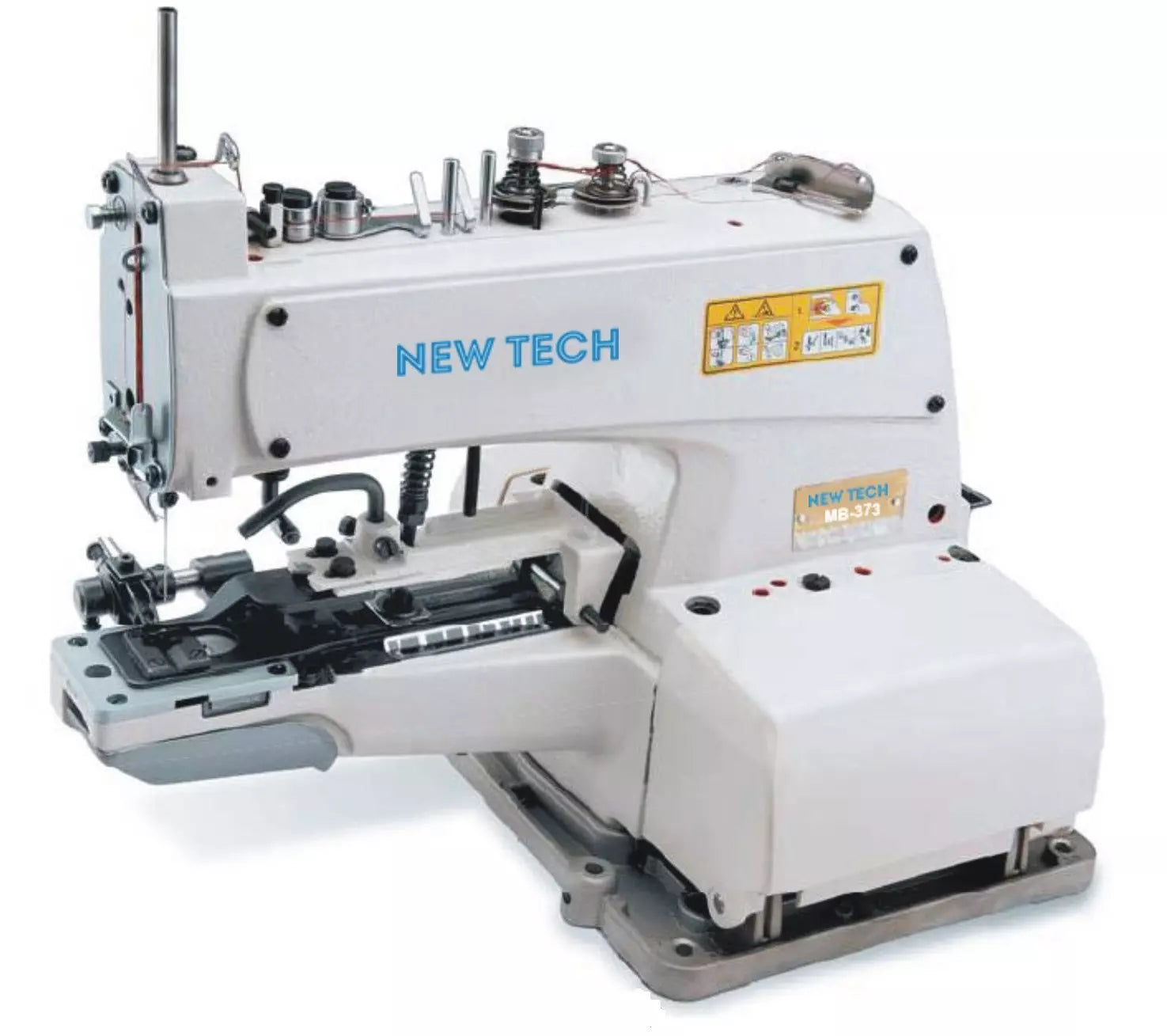

New-Tech MB-373

is a high-speed, single-thread chainstitch machine specifically engineered for attaching flat buttons to garments with precision and speed. Featuring an automatic thread trimmer and a vibration-free design, this machine ensures a secure stitch that prevents buttons from loosening. It is an essential tool for apparel manufacturers, tailoring shops, and high-volume dry cleaners looking to automate the button-sewing process.

  • Precision Button Clamping: The specialized clamping mechanism holds buttons securely in place, ensuring perfect alignment for 2-hole or 4-hole configurations.
  • Automatic Thread Trimmer: Includes an integrated under-bed thread trimmer that cuts the thread instantly at the end of the cycle, increasing productivity and reducing waste.
  • Stitch Shape Versatility: Easily switch between different stitch patterns to accommodate various button styles and hole spacings.
  • Vibration-Free Operation: Engineered with a balanced head to minimize noise and table vibration, even during high-speed operation.
  • Adjustable Speed Servo Motor: The energy-efficient servo motor allows for precise control over the sewing speed and runs silently when the machine is not in use.
  • Durable Chainstitch: Produces a secure single-thread chainstitch (ISO 101) that provides a professional finish and durable attachment.
  • Stitch Type: Single-thread, Chainstitch
  • Max. Sewing Speed: 1,500 Stitches per Minute (SPM)
  • Button Size Compatibility: 10mm – 28mm (Diameter)
  • Number of Stitches: 8, 16, or 32 stitches (Variable)
  • Shank Height: Up to 3.5mm
  • Needle System: TQx1 / TQx7 (#14 to #18)
  • Feed Length (Crosswise): 2.5mm – 6.5mm
  • Feed Length (Lengthwise): 0mm – 6.5mm
  • Motor Type: 550W High-Torque Servo Motor (110V)
  • Lubrication: Manual (With precision oiling points)

The MB-373 is optimized for attaching buttons to a variety of light-to-medium weight garments:

  • Menswear: Shirts, suit jackets, and waistcoats.
  • Womenswear: Blouses, cardigans, and dresses.
  • Workwear: Lab coats, uniforms, and light utility jackets.
  • Knitwear: Provides a secure hold on sweaters and polo shirts without damaging the fabric.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
