New-Tech GS-26-1AR Hand-Held Tape-Sew Portable Bag Closer Industrial Sewing Machine

New-Tech GS-26-1AR Hand-Held Tape-Sew Portable Bag Closer Industrial Sewing Machine

GS26-1AR

Industrial Portable Stitcher with Crepe Tape Attachment for Sift-Proof Sealing

$326.00
$326.00 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

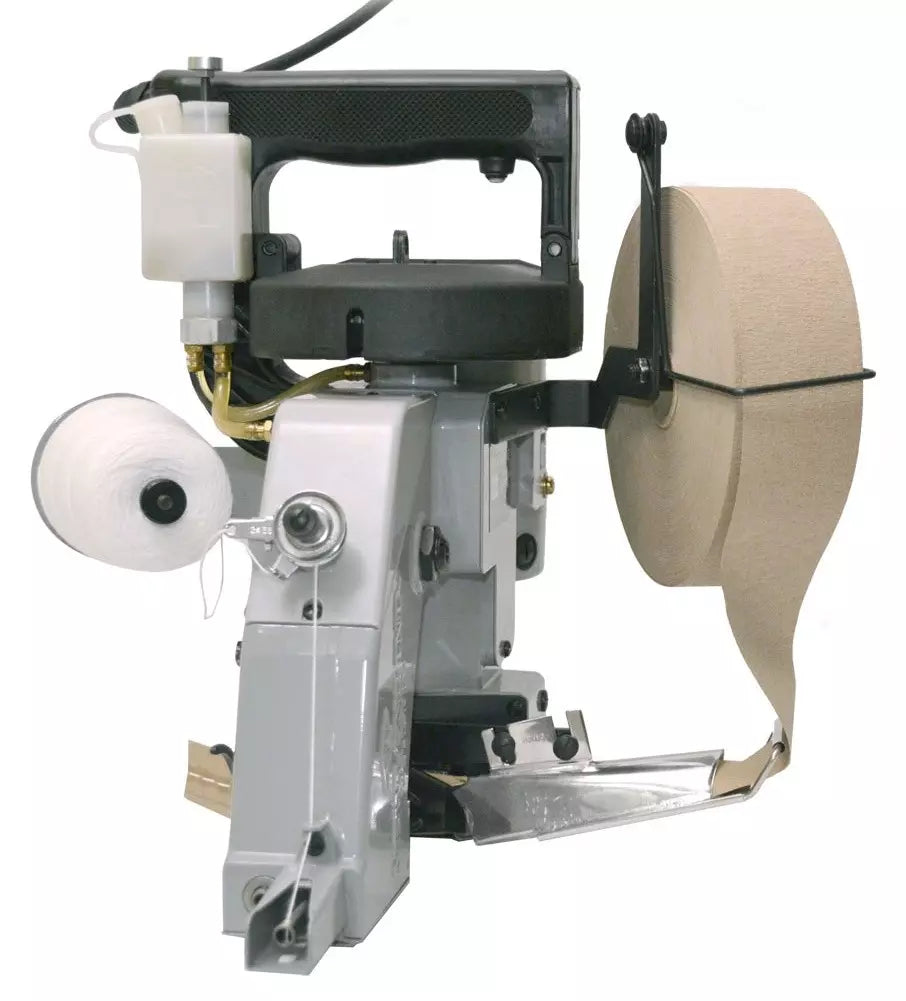

New-Tech GS-26-1AR

is a specialized, heavy-duty portable bag closer designed for high-integrity packaging. It features a unique Crepe Tape Attachment that folds tape over the top of the bag as it sews. This "tape-bound" closure is essential for preventing product leakage (sifting) and protecting contents from dust and moisture. Engineered for industrial environments, the GS-26-1AR is the professional choice for sealing bags containing fine powders, chemicals, or premium agricultural products.

    The GS-26-1AR is optimized for packaging fine-particle and sensitive goods:

    • Fine Powders: Flour, sugar, spices, and chemical additives.
    • Agricultural: Specialty seeds, fertilizers, and animal feed.
    • Industrial: Minerals, charcoal, and dry concrete mixes.
    • Food Grade: Any product requiring a professional "finished" look with added moisture protection.
    • Integrated Tape-Sew System: Automatically applies and sews crepe tape over the bag edge to create a secure, airtight, and sift-proof seal.
    • Single-Thread Chainstitch: Produces a durable ISO 101 chainstitch that is easy to open by the end-user while remaining secure during transport.
    • Automatic Thread & Tape Cutter: Features an enhanced mechanical cutter that slices through both the thread and the crepe tape simultaneously for a clean finish.
    • High-Speed Operation: Seals a standard bag in seconds, significantly increasing productivity in warehouse and farm settings.
    • Ergonomic Safety Handle: Equipped with a heat-resistant, plastic-insulated handle to ensure operator safety and comfort during extended use.
    • Reinforced Feed Mechanism: Designed to pull the bag and the tape through the machine synchronously, preventing bunching or uneven stitching.
    • Stitch Type: Single-Thread Chainstitch (with Crepe Tape)
    • Max. Sewing Speed: 1,500 – 1,800 Stitches per Minute (SPM)
    • Stitch Length: 7.2mm (Fixed)
    • Tape Width Compatibility: Standard 50mm - 60mm Crepe Tape
    • Max. Material Thickness: 8mm (approx. 5/16")
    • Needle System: DNx1 #25
    • Power Supply: 110V Standard Outlet
    • Motor Type: 90W High-Torque Industrial Motor
    • Lubrication: Manual (Semi-automatic oiling pump)

    U.S. WARRANTY:

    90 Days labor on defects in materials and workmanship.

    JUKI DDL-8700 FAQs

    What kind of needles do you use in the DDL-8700?

    The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

    Where does the machine oil go?

    A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

    What kind of oil does this machine require?

    You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

    What size table can I get with this machine?

    Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

    Does the DDL 8700 make buttonholes?

    No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
