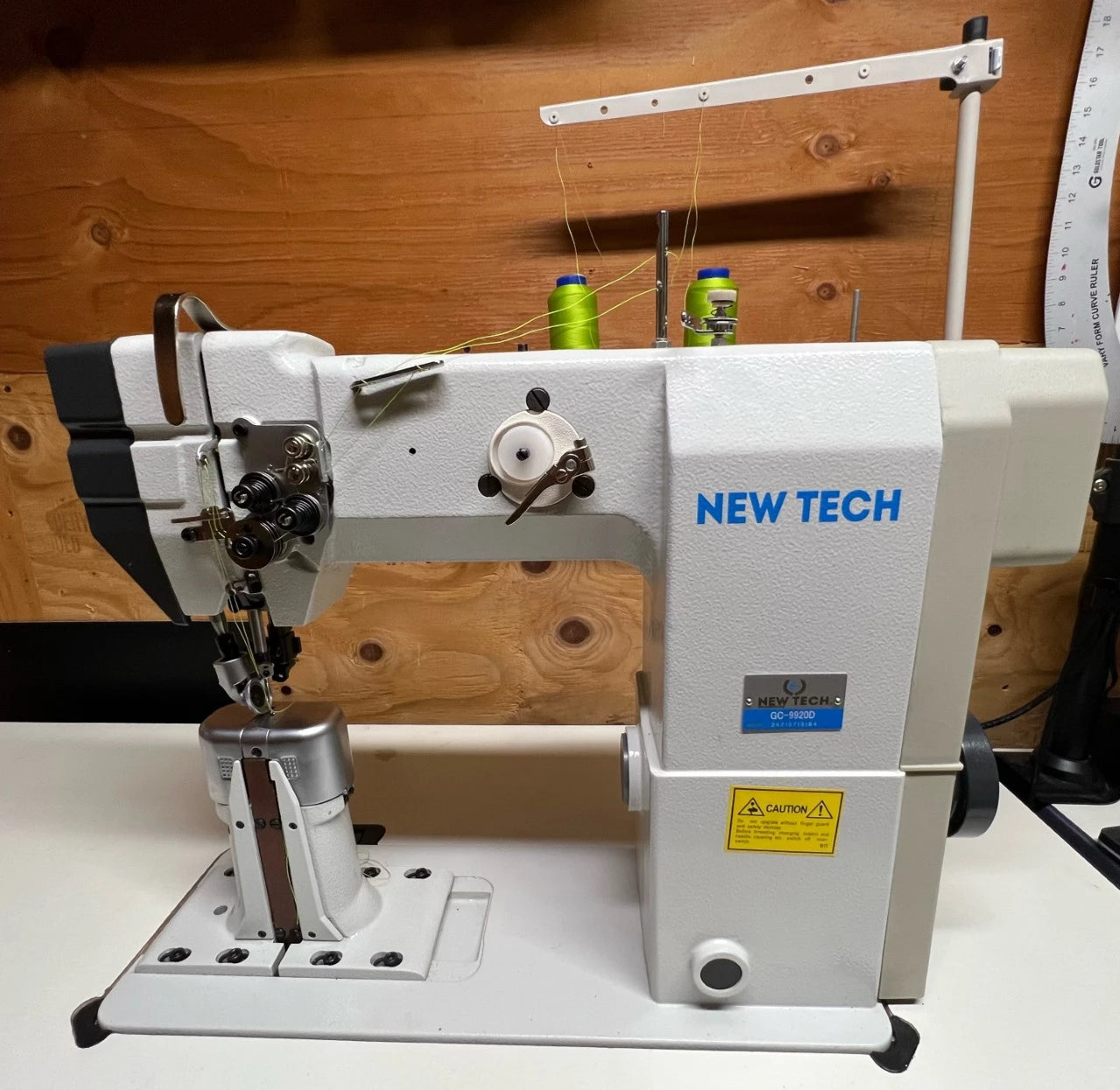

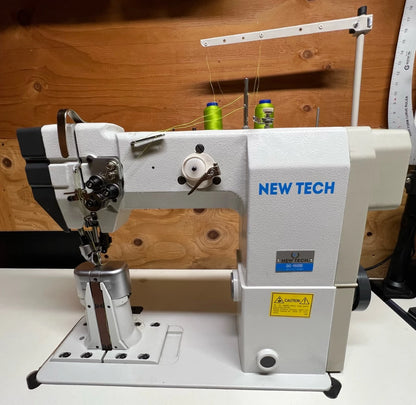

New-Tech GC-9920D High-Speed Post-Bed Industrial Sewing Machine

New-Tech GC-9920D High-Speed Post-Bed Industrial Sewing Machine

GC-9920D

2-Needle Roller Feed Lockstitch with Integrated Direct-Drive Servo Motor

$2,099.99
$2,099.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

NEW-TECH GC-9920D

is engineered for professionals working with curved, multi-layered, or three-dimensional assemblies. The Post-Bed design (rising from the table surface) allows the operator to rotate and maneuver items like boots, hats, and bags with ease. Unlike standard flatbed machines, the GC-9920D utilizes a top and bottom roller feed system, which ensures that slippery or tacky materials like leather and synthetic vinyl move through the machine without marking or shifting. The integrated Direct-Drive motor provides near-silent operation and incredible needle-stopping precision.

  • Double-Needle Precision: Produces two perfectly parallel rows of high-strength lockstitching, ideal for decorative and structural seams on high-end footwear.
  • Driven Roller Feed System: Both the top and bottom rollers are driven, providing powerful traction and preventing material "scuffing" or uneven feeding on delicate leathers.
  • Vertical Post-Bed Design: The slim post allows for effortless sewing of closed-loop or curved items that cannot be laid flat, such as boot shafts and automotive headrests.
  • Integrated Direct-Drive Motor: The motor is built directly into the machine head, offering instant start/stop response, 70% energy savings, and the elimination of drive belts.
  • Digital Control Panel: Easily adjust sewing speed and set the "needle-up/needle-down" position for precision cornering and maneuvering.
  • Large Vertical Rotary Hooks: Equipped with high-quality hooks designed to maintain consistent thread tension even at high speeds of up to 2,500 SPM.
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2500
  • Clearance Under Presser Foot: 8-13mm
  • Stitch Length: 4 s.p.i. (4mm)
  • Needle: With Roller Presser Foot DPXF22 or 134S. With Flat Presser Foot 135 x 7.
  • Bobbin: Metal 10656 Pre-wound G
  • Needle Bar Stroke: 41mm
  • Footwear: Boots, sneakers, sandals, and dress shoes.
  • Leather Accessories: Handbags, wallets, and curved briefcase sections.
  • Headwear: Structured hats, caps, and helmets.
  • Automotive: Steering wheel covers, headrests, and gear shift boots.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES, THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - New-Tech GC-9920D Post Bed Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
