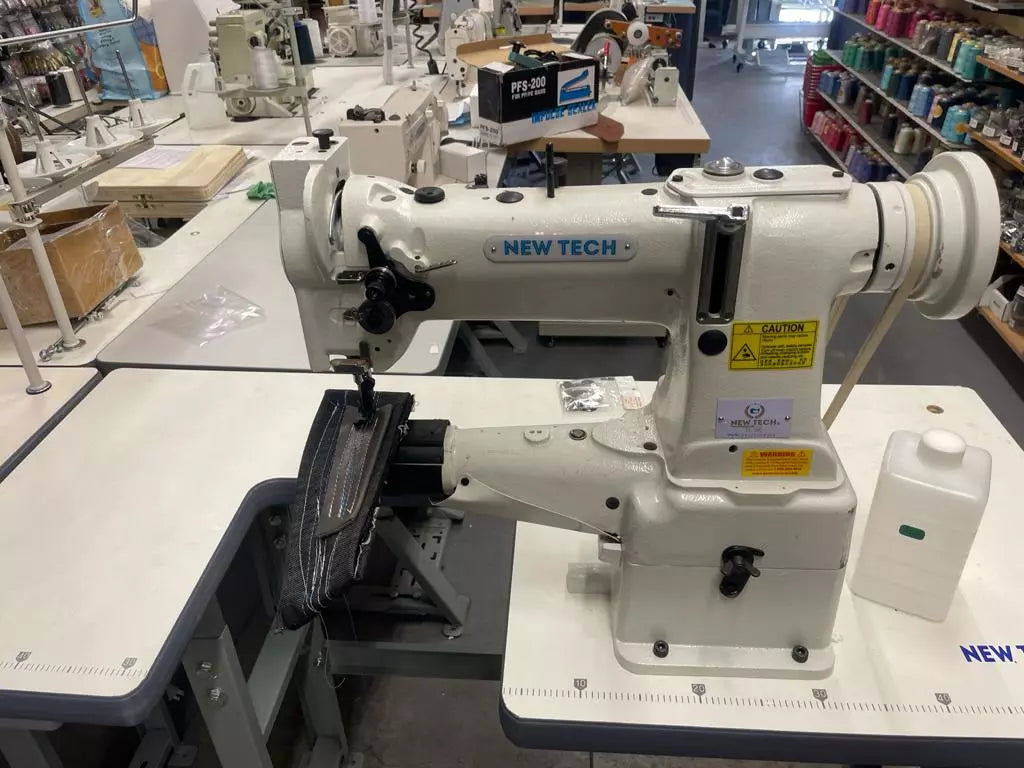

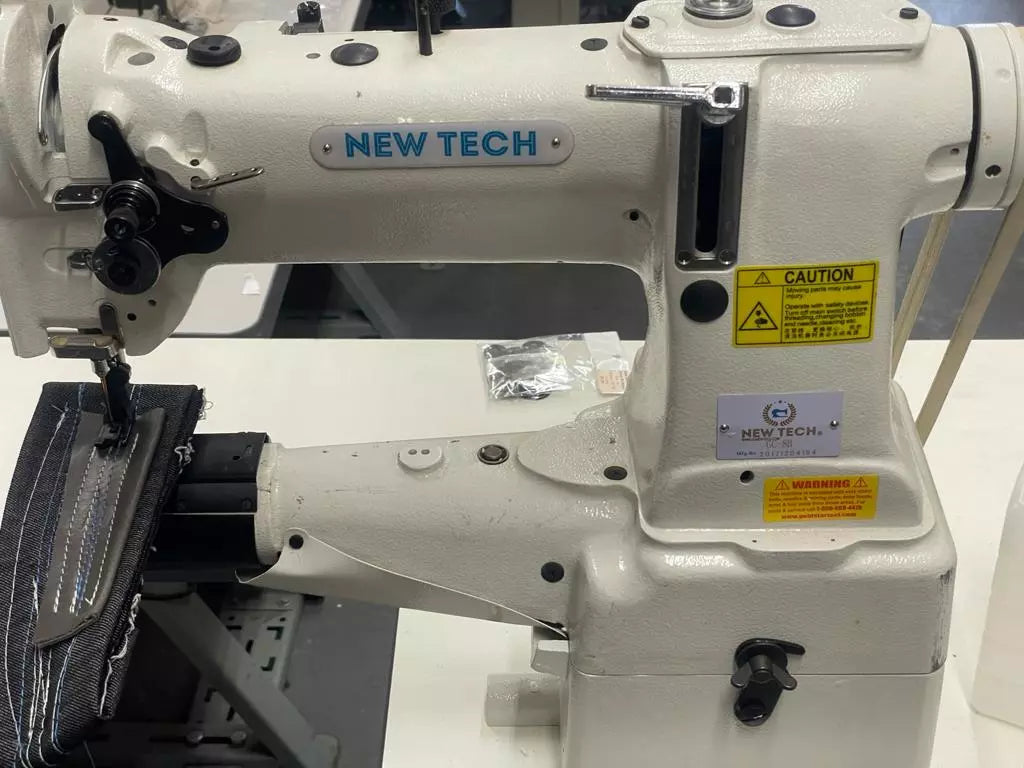

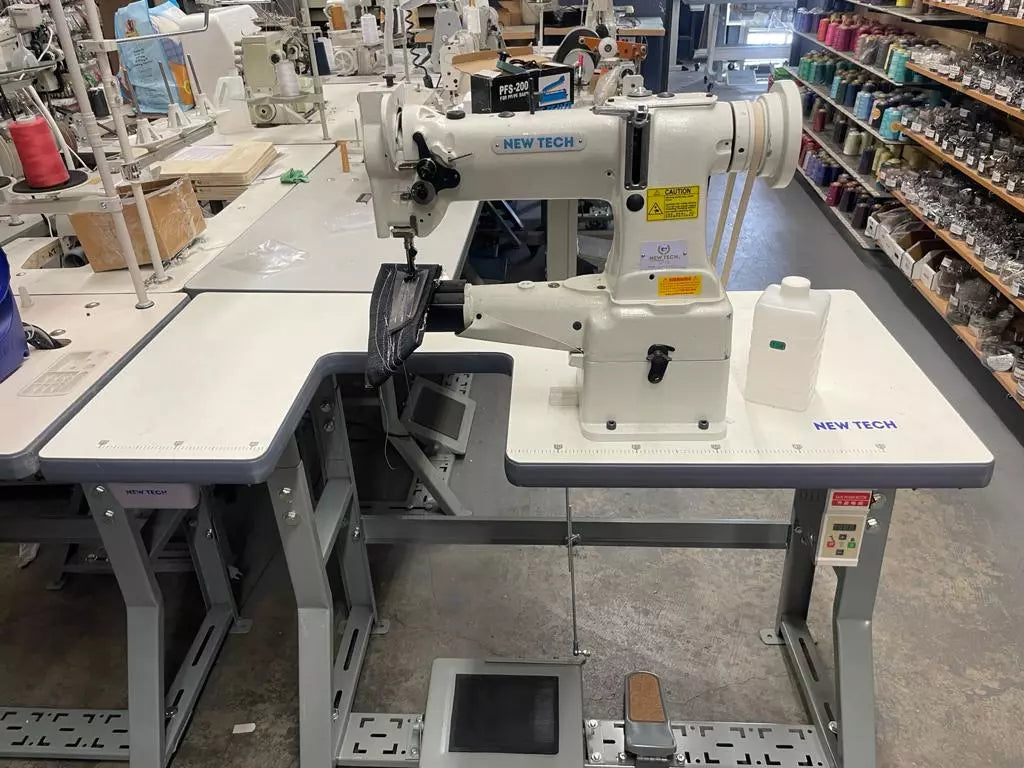

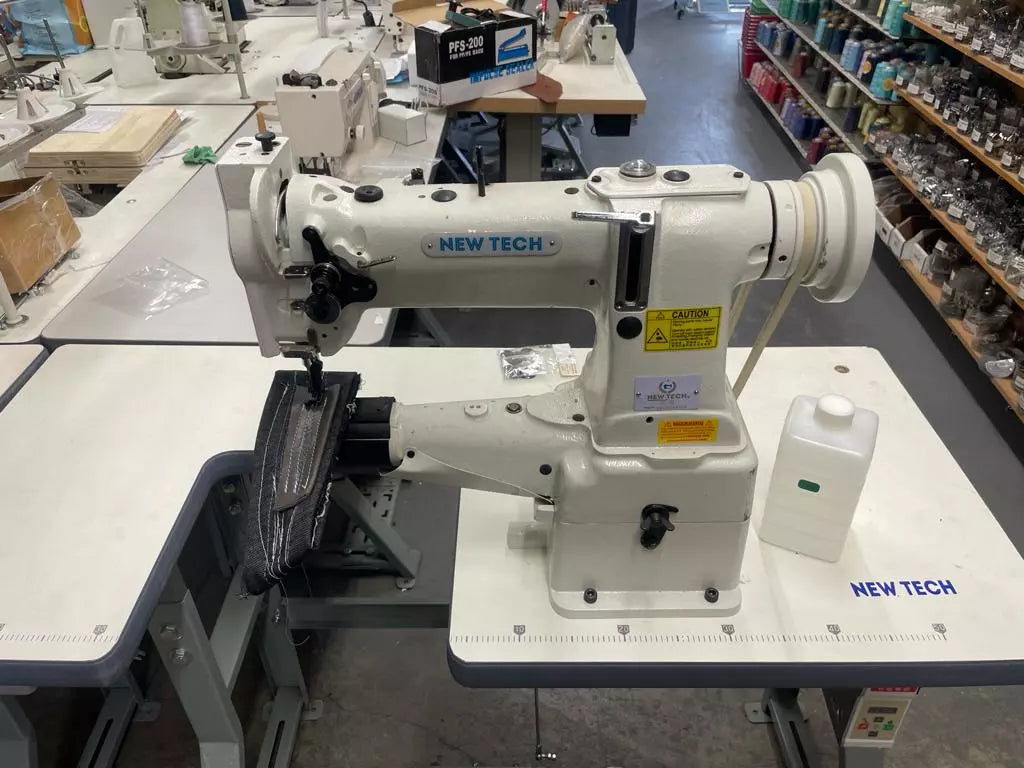

New-Tech GC-8B Cylinder Bed Compound Feed Industrial Sewing Machine

New-Tech GC-8B Cylinder Bed Compound Feed Industrial Sewing Machine

GC-8B

Heavy-Duty Walking Foot Lockstitch Machine with Table and High-Torque Servo Motor

$1,599.99
$1,599.99 Market price: $1,999.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

New-Tech GC-8B

is a specialized cylinder-bed sewing machine designed for maneuvering around curved edges and tubular shapes. Featuring a compound feed (triple feed) mechanism, it ensures the needle, feed dog, and presser foot move in unison to provide powerful traction on thick leathers and heavy synthetics. Its narrow-diameter cylinder arm is essential for professional leathercraft, allowing for precision stitching on bags, hats, and footwear where a standard flatbed machine is restricted.

  • Small Diameter Cylinder Arm: The narrow bed design allows for easy rotation and sewing of 3D objects, tubular pieces, and tight curves.
  • Compound Feed (Walking Foot): Prevents material layers from shifting by using a triple-action feeding system, ensuring consistent stitch length on slippery or heavy-duty materials.
  • Large Vertical-Axis Hook: Equipped with a high-capacity hook to accommodate thicker threads and reduce the frequency of bobbin changes.
  • Adjustable Speed Servo Motor: The included electronic motor offers silent operation and precise speed control, allowing for delicate detail work or high-speed production.
  • Simplified Tension Adjustment: Dual-tension controls allow for fine-tuning based on thread weight and material thickness for a perfectly balanced stitch.
  • Heavy-Duty Build: Designed for continuous industrial use with high-quality bearings and a cast-iron frame to minimize vibration.
  • Max. Sewing Speed: 2,000 – 2,500 Stitches per Minute (SPM)
  • Max. Stitch Length: 6.0mm
  • Needle Bar Stroke: 36mm
  • Cylinder Diameter: 65mm
  • Presser Foot Lift: 9mm (Hand) / 14mm (Knee)
  • Needle System: DPx17 (135x17) #18 to #24
  • Thread Sizes: Up to #138 (V138 / Bonded Nylon)
  • Lubrication: Manual (With oil wick system for hook)
  • Motor Type: 550W High-Torque Servo Motor (110V)

The GC-8B is the industry standard for sewing "shaped" or tubular goods, including:

  • Bags & Accessories: Attaching gussets to handbags, backpacks, and leather briefcases.
  • Footwear: Repairing and manufacturing shoes and boots.
  • Headwear: Precision stitching on hats and structured caps.
  • Specialty Gear: Holsters, knife sheaths, sports equipment, and small leather goods.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the NEW-TECH GC-8B</h2>
<div class="row">
<div class="col-lg-auto">



<p><strong>Needles:</strong>&nbsp;<a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong>&nbsp;<a href="https://www.goldstartool.com/metal-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-singer-203470.htm" target="_blank">#203470</a><br><strong>Needle Plate:</strong>&nbsp;<a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong>&nbsp;<a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br><br></a></p>

</div>
<div class="col-lg">


<p><strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K<br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a></p>
<p><br></p>


</div>
</div>

ACCESSORIES for the NEW-TECH GC-8B

Needles: Sewing Machine Needles 135x17Bobbins: #203470Needle Plate: Needle Plate - JUKI #214-10006Feed Dog: Feed Dog - JUKI #400-19908PRESSER FOOT KITWalking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONSWith Teeth Walking Presser Foot Set #10796T, 10795TWithout Teeth Walking Presser Foot Set #10796, 10795Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83Welting / Piping / Cording Walking Presser Foot Set #S31, S32Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795KZipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93Left Edge Guide Topstitch Industrial Walking Presser Foot #S585LRight Edge Guide Topstitch Industrial Walking Presser Foot #S585RLeft Triple Transport Walking Presser Foot Set #10796L, 10795LRight Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

New Product - New-Tech GC-8B Cylindrical Bed Industrial Machine- Goldstartool

Comparison - NEW TECH GC-8B VS NEW TECH HA-441 - Goldstartool

Product Showcase - New-Tech GC-8B Oil Drip Issue Resolution

Product Showcase- Flat Top Table for the New-Tech GC-8B Sewing Machine

Product Showcase -New-Tech Speed Reducer - Goldstartool.com

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
