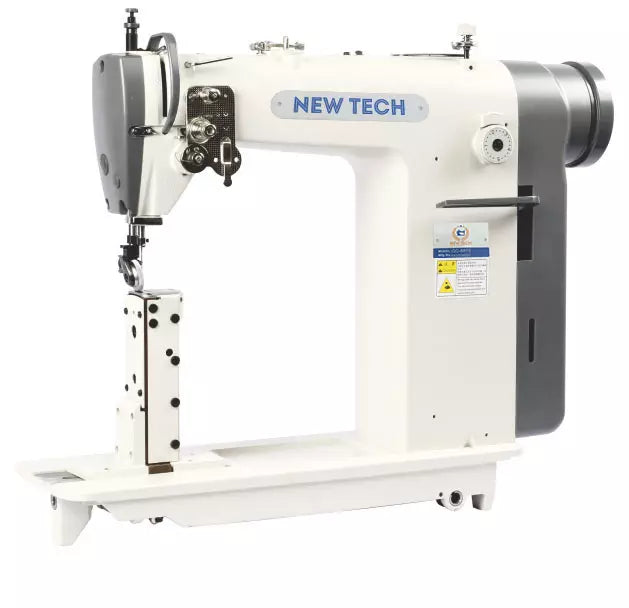

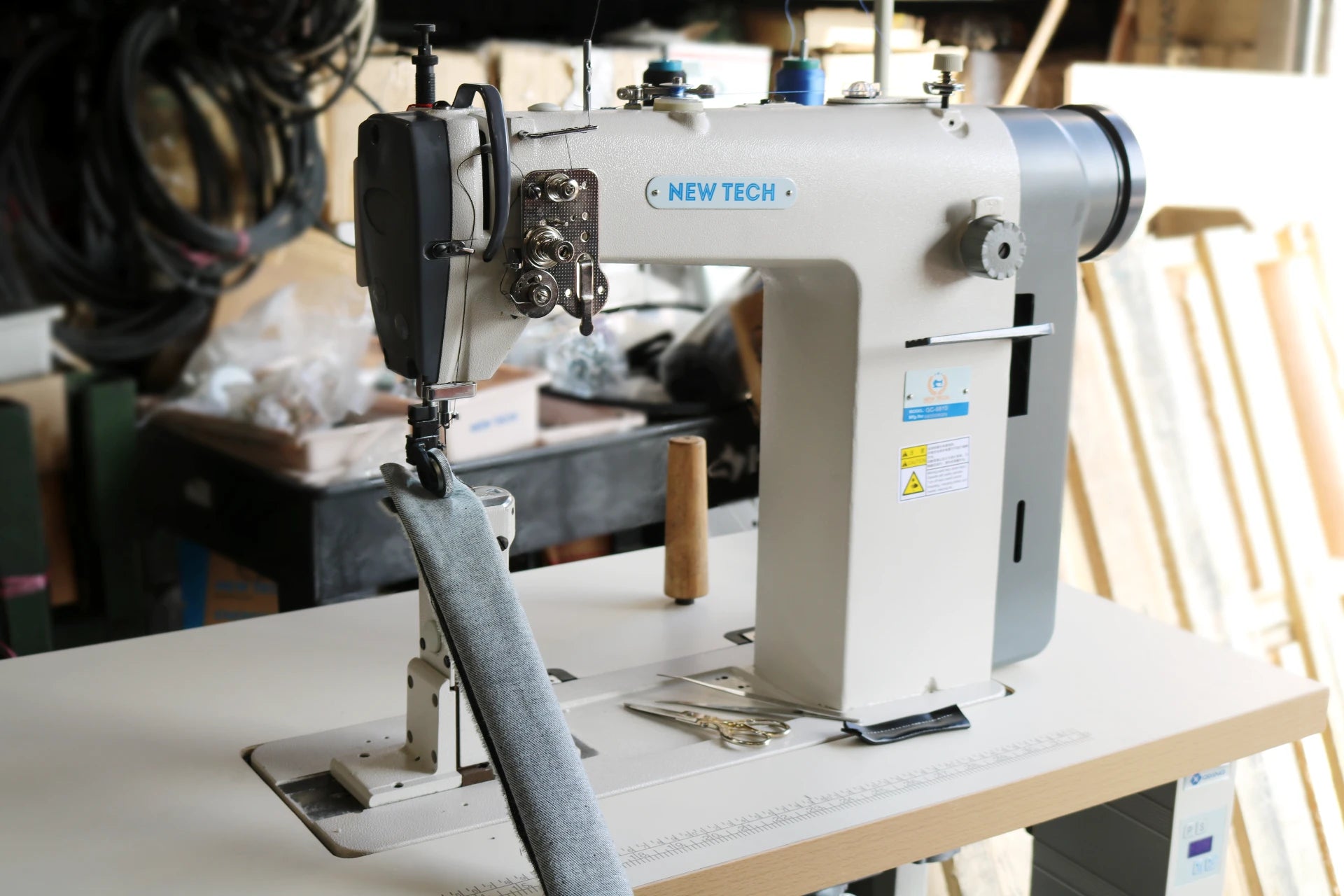

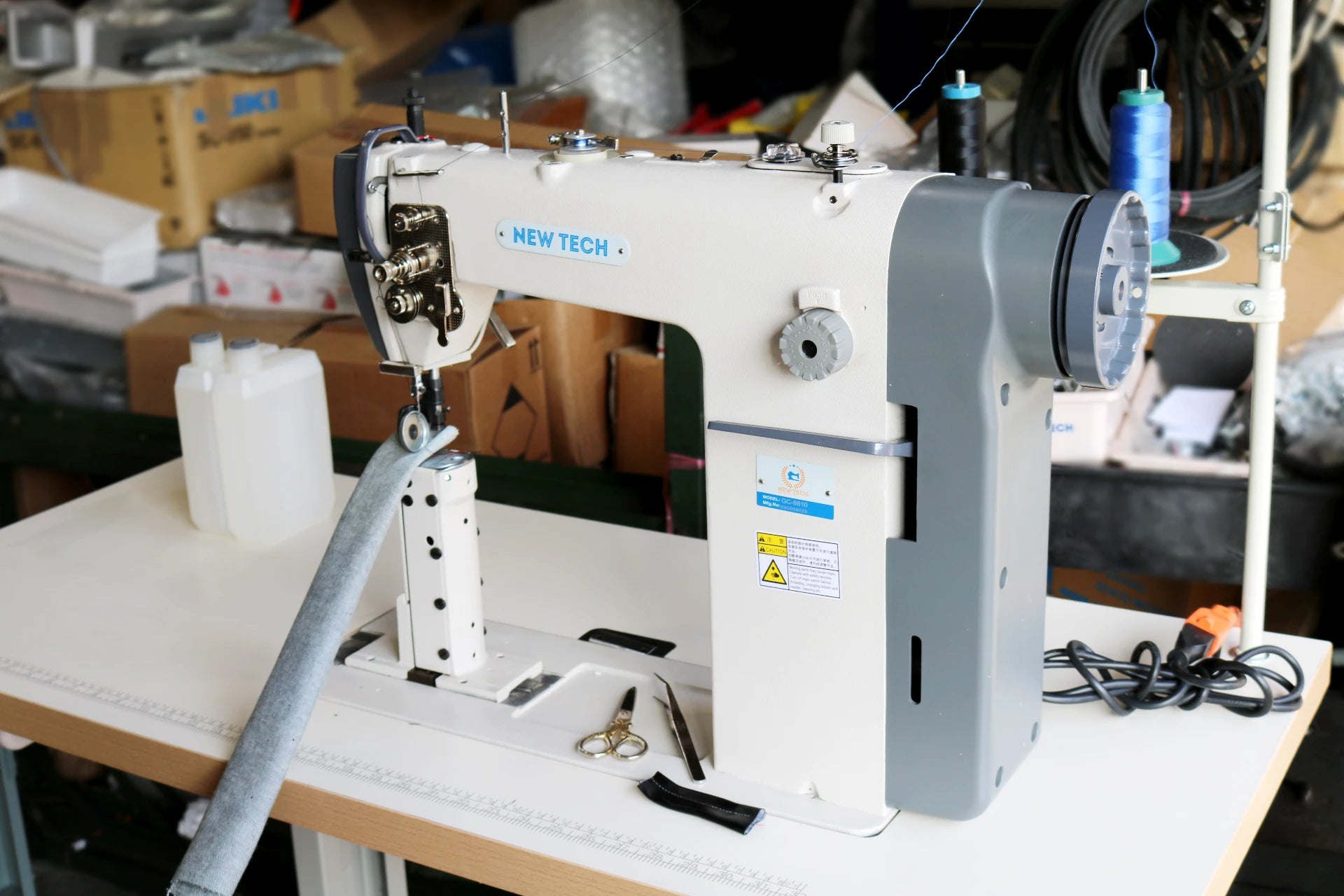

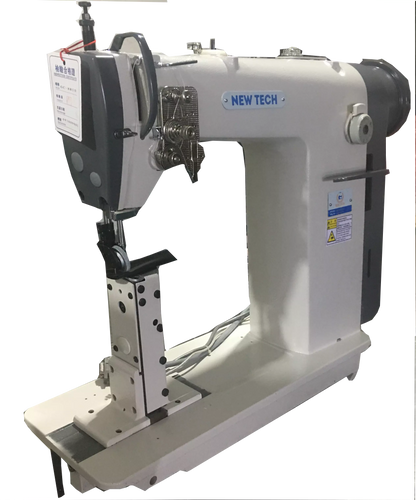

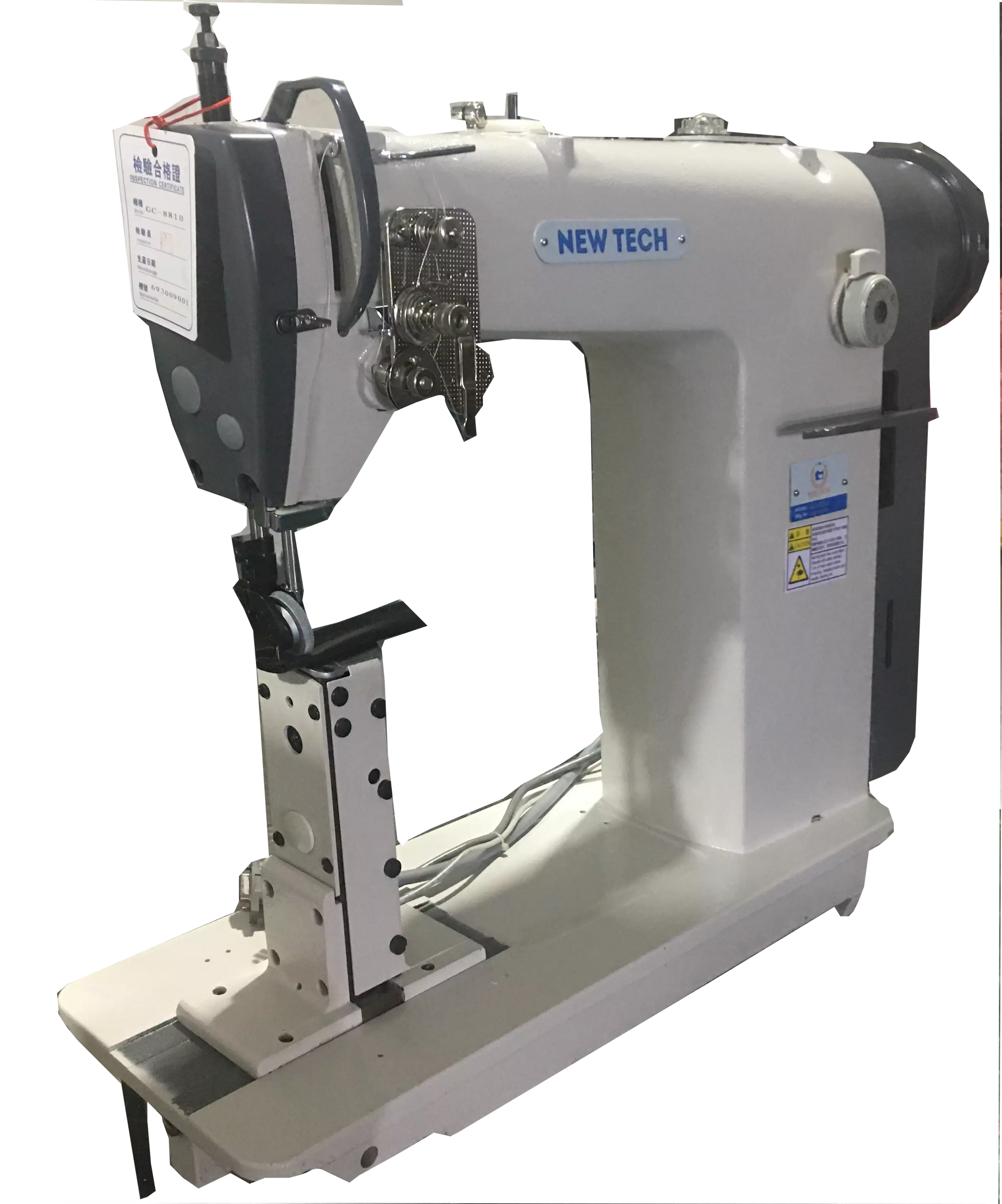

New-Tech GC-8810 Direct Drive Post Bed Industrial Sewing Machine

New-Tech GC-8810 Direct Drive Post Bed Industrial Sewing Machine

GC-8810

High-Speed Single Needle Lockstitch with Table and Integrated Servo Motor

$1,699.99
$1,699.99 Market price: $2,600.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-8810

is engineered for precision sewing of hollow, tubular, and curved articles. Its 7-inch post-bed design provides the necessary clearance to navigate tight corners and complex shapes that flat-bed machines cannot reach. This unit features a built-in Direct Drive Servo Motor, which eliminates the noise and vibration of external belts while providing instantaneous needle response and significant energy savings.



  • Integrated Direct Drive Motor: The servomotor is housed within the machine head, removing the need for a V-belt and providing up to 70% energy savings with virtually silent operation.
  • Post-Bed Configuration: A 178mm (7") post height allows for easy maneuvering of three-dimensional items like footwear, hats, and bags.

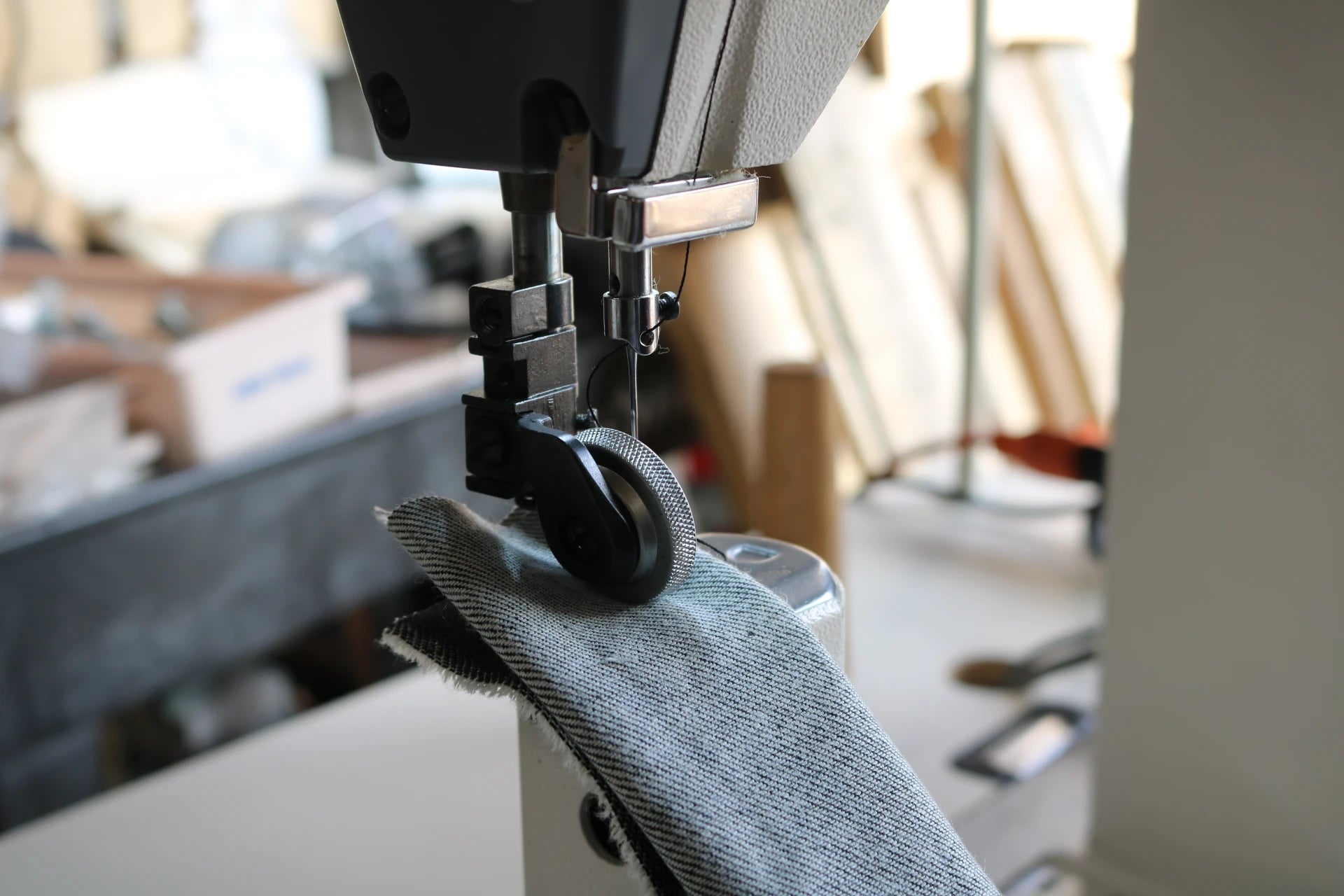

  • Needle Feed Mechanism: Synchronized needle and drop feed ensure a constant stitch length even when climbing over thick seams or multi-layered sections.
  • High-Speed Performance: Capable of speeds up to 3,500 stitches per minute, making it a high-productivity choice for manufacturing environments.
  • Vertical Axis Hook: Features a high-quality vertical rotating hook that provides stable stitch formation and reduces thread breakage.
  • Anti-Friction Engineering: Built with up to 29 ball and needle roller bearings for smoother operation and reduced long-term maintenance.
  • Simplified Lubrication: A centralized reservoir system ensures continuous lubrication to critical parts during high-speed sewing.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Needle Feed
  • Workspace Standard: Workspace
  • Standard or Full Function: Standard Functions
  • Stitch Per Minute Max: 3500
  • Clearance Under Presser Foot: 9/32" (7mm)
  • Stitch Length: 5 (5mm)
  • Needle: 135x7 (cat.1955)
  • Bed Size: 7"x20 3/8" (177x518mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 1/2" (38mm)
  • Hook: 38032
  • Post Height: 7" (178mm)
  • Work Surface: 2"x2 13/32" (52x61mm)

The GC-8810 is the industry standard for sewing "difficult-to-feed" and curved materials:

  • Footwear: Ideal for shoe uppers, athletic sneakers, and leather boots.
  • Headwear: Attaching patches to hats and stitching structured caps.
  • Leather & Vinyl: Perfect for wallets, small handbags, and automotive trim.
  • Tubular Goods: Navigating seams on sleeves, cuffs, and hollow apparel components.

DOWNLOADS:

Control Box Instruction Manual - NEW-TECH GC-8810

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

New-Tech-GC-8810-Industrial-Sewing-Machine

Testing 207 Thread With the New-Tech GC-8810 Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
