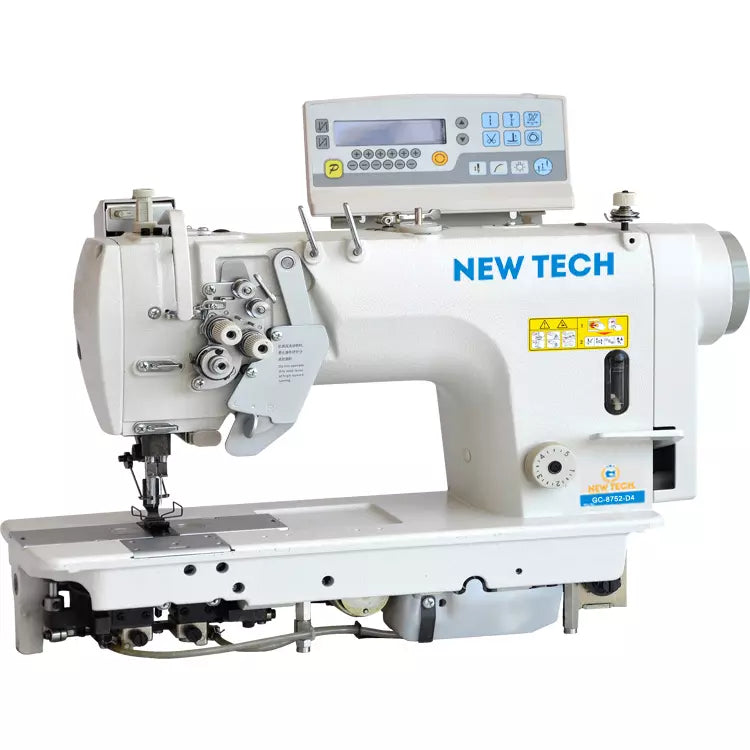

New-Tech GC-8752-04 Twin Needle Split Bar Lockstitch Machine with Automatic Thread Trimmer & Direct Drive

New-Tech GC-8752-04 Twin Needle Split Bar Lockstitch Machine with Automatic Thread Trimmer & Direct Drive

GC-8752-04

Equipped with Large Hooks for extended bobbin capacity and a Direct Drive Servo Motor

$3,499.99
$3,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-8752-04

is a high-performance, automated twin-needle lockstitch machine designed for precision and high-volume production. It features an Organized Split Needle Bar, allowing the operator to stop one needle independently—a critical function for sewing perfect 90-degree corners. Equipped with Large Hooks for extended bobbin capacity and a Direct Drive Servo Motor for silent, energy-efficient operation, this machine is engineered to handle medium-to-heavyweight fabrics like denim and upholstery with unmatched ease.

The GC-8752-04 is the industry standard for:

  • Denim & Jeans: Pocket setting, decorative yoke stitching, and waistband corners.
  • Upholstery: Automotive seats, marine cushions, and furniture where double-topstitching is required.
  • Uniforms & Workwear: Durable twin-needle reinforcement on pockets and collars.
  • Bags & Luggage: Heavy-duty decorative seams and structural joining.
  • Organized Split Needle Bar: A manual lever allows the operator to disengage the left or right needle instantly. This ensures sharp, clean corners on pockets and decorative topstitching without over-stitching or needle breakage.
  • Full Automatic Functions: Features an integrated automatic thread trimmer, auto-backtacking, and programmable needle positioning to significantly reduce manual labor and thread waste.
  • Large Capacity Hooks: The horizontal-axis hooks are designed to hold larger bobbins, providing nearly double the thread capacity of standard machines—ideal for long seams and thick threads.
  • Direct-Drive Technology: The motor is integrated into the machine head, providing 70% energy savings, reduced vibration, and a silent work environment.
  • Advanced Lubrication System: A fully automatic lubrication system ensures the hooks and needle bars are constantly oiled, preventing heat buildup during high-speed operation.
  • Dual Tension Control: Two independent tension dials allow for precision tuning of both threads, ensuring uniform stitch quality on both parallel lines.
  • Needle System : DP x 5 (135x5)
  • Number of Needles : 2 (Split Needle Bar)
  • Needle Gauge (Standard) : 1/4" (6.4mm) — Other gauges available
  • Max Sewing Speed : 3,000 Stitches Per Minute (SPM)
  • Max Stitch Length : 7.0 mm
  • Hook Type : Large Vertical-Axis Hook (Double Capacity)
  • Presser Foot Lift : 7 mm (Hand) / 13 mm (Knee/Auto)
  • Motor Type : Built-in 550W Direct-Drive Servo Motor (110V)
  • Lubrication : Fully Automatic

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
