New-Tech GC-8700-D Direct-Drive High-Speed Single Needle Lockstitch Industrial Sewing Machine – Complete Set with Table & Integrated Servo Motor

New-Tech GC-8700-D Direct-Drive High-Speed Single Needle Lockstitch Industrial Sewing Machine – Complete Set with Table & Integrated Servo Motor

GC-8700-D

Single Needle Lockstitch Industrial Sewing Machine With Table, Legs, Built-in Direct Drive Servo Motor, and LED Lamp

$799.99
$799.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

The New-Tech GC-8700-D

is a high-speed, professional-grade lockstitch machine designed for versatility and energy efficiency. By integrating a powerful Direct Drive Servo Motor directly into the machine head, it eliminates the need for external belts, providing a quieter, smoother, and more precise sewing experience. It is an excellent choice for tailors, designers, and high-volume garment factories.

  • Integrated Direct-Drive Motor: The motor is mounted directly to the machine shaft, reducing vibration and noise while offering up to 70% energy savings compared to traditional clutch motors.

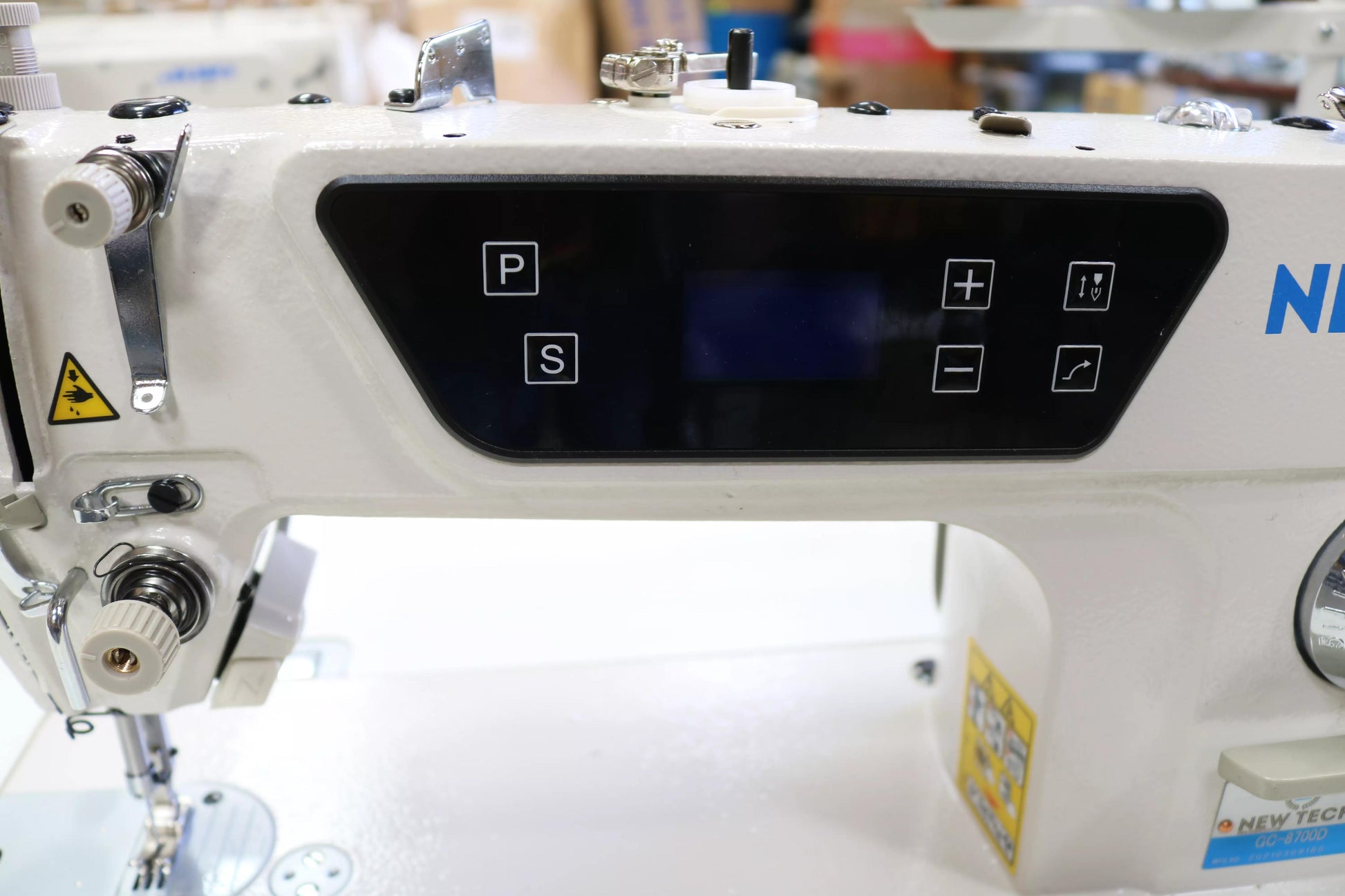

  • Programmable Speed Control: Easily adjust the maximum sewing speed via the built-in digital display to match your skill level or project requirements.
  • Needle Positioning Sensor: Automatically ensures the needle stops in the "up" or "down" position, streamlining workflow and cornering.
  • Advanced Lubrication System: Features a fully automatic oiling system that ensures all internal components are lubricated at high speeds, extending the machine's lifespan.
  • Quiet & Cool Operation: The lack of a motor belt and the efficiency of the direct-drive system keep the workspace cooler and significantly quieter.
  • Application: Medium-weight
  • Max. sewing speed: 5,500 Stitches per Minute
  • Max. stitch length: 5mm
  • Needle bar stroke: 30.7mm
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot: 13mm
  • Needle: DB×1 (#14) #9~#18 / 134 (Nm90)
  • Bobbins: #270010
  • Feed dog: 4-row (3-row)
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Automatic
  • Bed Size: 7" x 18 25/32"
  • Workspace: 10 1/4"
  • Motor: Direct-Drive
  • General Apparel: Perfect for shirts, dresses, uniforms, and blouses.
  • Tailoring & Alterations: Reliable for repairing various garment types with high precision.
  • Light Home Decor: Ideal for sewing curtains, pillowcases, and lightweight linens.
  • Synthetic Materials: Handles polyesters, rayons, and light knits with ease.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3><strong><u>AC</u><u></u><u>CESSORIES for the NEW-TECH GC-8700-D</u></strong></h3>
<div class="row"><div class="col-lg-6"><p><strong>Needles:</strong> <a href="https://www.goldstartool.com/standard-industrial-sewing-machine-needles.htm" target="_blank">Standard Industrial Needles (Size #9-#18)</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/metal-bobbins-for-single-needle-industrial-industrial-sewing-machines-270010.htm" target="_blank">Metal Bobbins for Single Needle Industrial #270010</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-class-95-52237.htm" target="_blank">Bobbin Case Metal Class 95 — Singer #52237</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-for-most-single-needle-industrial-sewing-machines.htm" target="_blank">Needle Plate /Throat Plate</a><br><strong>Needle Plate/Feed Dog Combo:</strong> <a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank">Needle Plate/Feed Dog Combo</a><a href="https://www.goldstartool.com/needle-plate-throat-plate-feed-dog-for-most-industrial-lockstitch-sewing-machines-combo.htm" target="_blank"><br></a></p>
<p><strong><em>ACCESSORY KITS</em><br></strong><a href="https://www.goldstartool.com/starter-kit-for-industrial-sewing-machines.htm" target="_blank">Starter Kit For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/deluxe-spare-parts-kit-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Deluxe Kit For Industrial Sewing Machines</a></p>
<p><strong><em>PRESSER FOOT KITS</em></strong><br><a href="https://www.goldstartool.com/5-pack-industrial-high-shank-presser-feet.htm" target="_blank">5 Pack Industrial High Shank Presser Feet</a><br><a href="https://www.goldstartool.com/glide-on-industrial-high-shank-presser-feet-5-pack.htm" target="_blank">Glide-On Industrial High Shank Presser Feet (5 Pack)</a></p>
<p><em><strong>SEWING GUIDES & GAUGES</strong></em><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/magnetic-sewing-machine-gauge.htm" target="_blank">Magnetic ​Sewing Machine Gauge Guide</a><br><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide</a><br><a href="https://www.goldstartool.com/industrial-sewing-machine-swing-gauge-5812.htm" target="_blank">Swing Gauge #5812</a><a href="https://www.goldstartool.com/sewing-machinest-gauge-2-1-2.htm" target="_blank"><br>T Gauge (2-1/2")</a><a href="https://www.goldstartool.com/adjustable-seam-guide-sewing-adjustable-seam-guide-for-industrial-single-needle-sewing-machine.htm" target="_blank"><br>Adjustable Seam Guide</a><a href="https://www.goldstartool.com/sewing-machine-3-corner-gauge-25873.htm" target="_blank"><br>Sewing Machine 3 Corner Gauge #25873</a></p>
<p></p>
<p></p><br><br>
<h3><strong>COMPATIBLE PRESSER FOOT OPTIONS</strong></h3>
<p><strong><em>ZIPPER/CORDING/WELTING/PIPING <br></em></strong><a href="https://www.goldstartool.com/invisible-zipper-presser-foot-s518.htm" target="_blank">Invisible Zipper Presser Foot #S518<br></a><a href="https://www.goldstartool.com/split-hinged-zipper-presser-foot-40322sh.htm" target="_blank">Split Hinged Zipper Presser Foot #40322SH<br></a><a href="https://www.goldstartool.com/narrow-right-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-12435hn.htm" target="_blank">Narrow Right Hinged Cording Foot #12435HN<br></a><a href="https://www.goldstartool.com/narrow-left-hinged-cording-foot-for-industrial-lockstitch-sewing-machines-31358hn.htm" target="_blank">Narrow Left Hinged Cording Foot #31358HN<br></a><a href="https://www.goldstartool.com/wide-left-hinged-cording-zipper-foot-31358hwl-p36l.htm" target="_blank">Wide Left Hinged Cording/Zipper Foot #31358HWL-P36L<br></a><a href="https://www.goldstartool.com/wide-right-hinged-cordingzipper-foot-12435hwr-p36r.htm" target="_blank">Wide Right Hinged Cording/Zipper Foot #12435HWR-P36<br></a><a href="https://www.goldstartool.com/high-shank-double-welting-piping-foot-for-industrial-single-needle-sewing-machines-36069dg.htm" target="_blank">High Shank Double Welting/Piping Foot #36069DG<br></a><a href="https://www.goldstartool.com/metal-piping-foot-high-shank-right-or-left.htm" target="_blank">Metal Piping Foot (Right Or Left) #36069L, 36069R<br></a><a href="https://www.goldstartool.com/welting-piping-cording-presser-foot-767415000-767414009.htm" target="_blank">Welting/Piping/Cording Presser Foot #767415000</a></p>
<p><strong><em>COMPENSATING</em></strong><a href="https://www.goldstartool.com/high-shank-double-welting-piping-foot-for-industrial-single-needle-sewing-machines-36069dg.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/left-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Left Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/right-compensating-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Right Compensating Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-binder-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Compensating Binder Presser Foot<br></a><a href="https://www.goldstartool.com/compensating-foot-211-14.htm" target="_blank">Compensating Foot 211-14</a></p>
<p><strong><em>SHIRRING/GATHERING<br></em></strong><a href="https://www.goldstartool.com/shirring-gathering-foot-for-industrial-lockstitch-sewing-machines.htm" target="_blank">Shirring/Gathering Foot #120828<br></a><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Shirring/Gathering With Adjustable Blocks #S950<br></a><a href="https://www.goldstartool.com/shirring-gathering-screw-adjusting-presser-foot-s952.htm" target="_blank">Shirring/Gathering Screw Adjusting Presser Foot #S952<br></a><a href="https://www.goldstartool.com/shirring-gathering-tape-guide-elastic-adjustable-presser-foot-for-industrial-sewing-machines-s537.htm" target="_blank">Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537</a></p>
<p><strong><em>GUIDE FOOT<br></em></strong><a href="https://www.goldstartool.com/industrial-sewing-machine-hinged-right-guide-foot.htm" target="_blank">Hinged Right Guide Foot</a></p>
</div>
<div class="col-lg-6">
<br>
<h3><strong><strong>COMPATIBLE PRESSER FOOT OPTIONS (continued)</strong></strong><br></h3>
<p><strong><em>HEMMER</em></strong><br><a href="https://www.goldstartool.com/shirring-gathering-with-adjustable-blocks-for-industrial-lockstitch-sewing-machines-s950.htm" target="_blank">Ball Hemmer Foot (Double Fold) #490358<br></a><a href="https://www.goldstartool.com/spring-hemmer-feet-high-shank.htm" target="_blank">Spring Hemmer Foot #490359<br></a><a href="https://www.goldstartool.com/hemming-presser-foot-and-folder-set-f502.htm" target="_blank">Hemming Presser Foot and Folder Set #F502</a></p>
<p><strong><em>CENTER TUBE</em></strong><br><a href="https://www.goldstartool.com/hinged-center-tube-presser-foot-for-industrial-sewing-machine.htm" target="_blank">Hinged Center Tube Presser Foot #S10C</a></p>
<p><strong><em>ROLLER<br></em></strong><a href="https://www.goldstartool.com/small-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Small Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/large-roller-foot-with-needle-plate-feed-dogs-singer.htm" target="_blank">Large Roller Foot With Needle Plate & Feed Dogs<br></a><a href="https://www.goldstartool.com/spk-high-shank-roller-foot-spk3.htm" target="_blank">SPK Roller Foot #SPK3</a></p>
<p><strong><em>BIAS<br></em></strong><a href="https://www.goldstartool.com/bias-tape-binding-presser-foot-6288.htm" target="_blank">Bias Tape Binding Presser Foot #6288</a></p>
<p><strong><em>STRAIGHT STITCH<br></em></strong><a href="https://www.goldstartool.com/hinged-straight-stitch-presser-foot-p351.htm" target="_blank">Hinged Straight Stitch Presser Foot #P351<br></a><a href="https://www.goldstartool.com/hinged-straight-stitching-foot-24983.htm" target="_blank">Hinged Straight Stitching Foot #24983<br></a><a href="https://www.goldstartool.com/hinged-narrow-presser-foot-for-industrial-sewing-machines.htm" target="_blank">Hinged Narrow Presser Foot #142058N<br></a><a href="https://www.goldstartool.com/heavyweight-straight-stitch-presser-foot-brother-sa173.htm" target="_blank">Heavyweight Straight Stitch Presser Foot - Brother #SA173<br></a><a href="https://www.goldstartool.com/straight-stitch-presser-foot-with-finger-guard-351.htm" target="_blank">Straight Stitch Presser Foot With Finger Guard #351</a></p>
<p><strong><em>GLIDE-ON/TEFLON<br></em></strong><a href="https://www.goldstartool.com/glide-on-invisible-zipper-presser-foot-s518nst.htm" target="_blank">Glide-On Invisible Zipper Presser Foot #S518NST<br></a><a href="https://www.goldstartool.com/glide-on-standard-extended-tail-hinged-presser-foot-mt-18.htm" target="_blank">Glide-On Standard Extended Tail Hinged Presser Foot #MT-18<br></a><a href="https://www.goldstartool.com/glide-on-welting-piping-cording-presser-foot-36069t.htm" target="_blank">Glide-On Welting/Piping/Cording Presser Foot #36069T<br></a><a href="https://www.goldstartool.com/non-stickteflon-foot-high-shank.htm" target="_blank">Non-Stick Glide-On Presser Foot #T-350<br></a><a href="https://www.goldstartool.com/universal-glide-on-narrow-zipper-presser-foot-t363.htm" target="_blank">Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363<br></a><a href="https://www.goldstartool.com/universial-glide-on-left-narrow-zipper-presser-foot-t36ln.htm" target="_blank">Universal Glide-On Left Narrow Zipper Presser Foot #T36LN<br></a><a href="https://www.goldstartool.com/universal-glide-on-right-narrow-zipper-presser-foot-t36n.htm" target="_blank">Universal Glide-On Right Narrow Zipper Presser Foot #T36N</a></p>
<p><strong><em>FOR QUILTING<br></em></strong><a href="https://www.goldstartool.com/quilters-swing-sewing-guide-for-industrial-sewing-machines.htm" target="_blank">Quilters Swing Sewing Guide For Industrial Sewing Machines<br></a><a href="https://www.goldstartool.com/1-4-inch-high-shank-clear-ruler-foot-for-free-motion-quilting.htm" target="_blank">1/4" High Shank Clear Ruler Foot For Free Motion Quilting</a><a href="https://www.goldstartool.com/1-4-high-shank-ruler-foot-for-free-motion-frame-quilting-sewing.htm" target="_blank"><br>1/4" High Shank Metal Ruler Foot For Free Motion Quilting</a><br><a href="https://www.goldstartool.com/metal-quilting-glide-foot-and-needle-plate-gs1kit.htm" target="_blank">Metal Quilting Glide Foot and Needle Plate​ #GS1Kit</a><br><br><br></p>
<h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank"><br></a></em><a href="https://www.goldstartool.com/raw-edge-binder-set-s64.htm" target="_blank">Raw Edge Binder Set #S64​</a><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><a href="https://www.goldstartool.com/right-angle-binder-set-s60.htm" target="_blank"><br>Right Angle Binder Set #S60</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>


</div>
</div>

ACCESSORIES for the NEW-TECH GC-8700-D

Needles: Standard Industrial Needles (Size #9-#18)Bobbins: Metal Bobbins for Single Needle Industrial #270010Bobbin Case: Bobbin Case Metal Class 95 — Singer #52237Needle Plate: Needle Plate /Throat PlateNeedle Plate/Feed Dog Combo: Needle Plate/Feed Dog Combo

ACCESSORY KITSStarter Kit For Industrial Sewing MachinesDeluxe Kit For Industrial Sewing Machines

PRESSER FOOT KITS5 Pack Industrial High Shank Presser FeetGlide-On Industrial High Shank Presser Feet (5 Pack)

SEWING GUIDES & GAUGESMagnetic ​Sewing Machine Gauge GuideQuilters Swing Sewing GuideSwing Gauge #5812T Gauge (2-1/2")Adjustable Seam GuideSewing Machine 3 Corner Gauge #25873

COMPATIBLE PRESSER FOOT OPTIONS

ZIPPER/CORDING/WELTING/PIPING Invisible Zipper Presser Foot #S518Split Hinged Zipper Presser Foot #40322SHNarrow Right Hinged Cording Foot #12435HNNarrow Left Hinged Cording Foot #31358HNWide Left Hinged Cording/Zipper Foot #31358HWL-P36LWide Right Hinged Cording/Zipper Foot #12435HWR-P36High Shank Double Welting/Piping Foot #36069DGMetal Piping Foot (Right Or Left) #36069L, 36069RWelting/Piping/Cording Presser Foot #767415000

COMPENSATINGLeft Compensating Presser FootRight Compensating Presser FootCompensating Binder Presser FootCompensating Foot 211-14

SHIRRING/GATHERINGShirring/Gathering Foot #120828Shirring/Gathering With Adjustable Blocks #S950Shirring/Gathering Screw Adjusting Presser Foot #S952Shirring/Gathering Tape Guide Elastic Adjustable Presser Foot #S537

GUIDE FOOTHinged Right Guide Foot

COMPATIBLE PRESSER FOOT OPTIONS (continued)

HEMMERBall Hemmer Foot (Double Fold) #490358Spring Hemmer Foot #490359Hemming Presser Foot and Folder Set #F502

CENTER TUBEHinged Center Tube Presser Foot #S10C

ROLLERSmall Roller Foot With Needle Plate & Feed DogsLarge Roller Foot With Needle Plate & Feed DogsSPK Roller Foot #SPK3

BIASBias Tape Binding Presser Foot #6288

STRAIGHT STITCHHinged Straight Stitch Presser Foot #P351Hinged Straight Stitching Foot #24983Hinged Narrow Presser Foot #142058NHeavyweight Straight Stitch Presser Foot - Brother #SA173Straight Stitch Presser Foot With Finger Guard #351

GLIDE-ON/TEFLONGlide-On Invisible Zipper Presser Foot #S518NSTGlide-On Standard Extended Tail Hinged Presser Foot #MT-18Glide-On Welting/Piping/Cording Presser Foot #36069TNon-Stick Glide-On Presser Foot #T-350Universal Glide-On Hinged Narrow Zipper Presser Foot #T-363Universal Glide-On Left Narrow Zipper Presser Foot #T36LNUniversal Glide-On Right Narrow Zipper Presser Foot #T36N

FOR QUILTINGQuilters Swing Sewing Guide For Industrial Sewing Machines1/4" High Shank Clear Ruler Foot For Free Motion Quilting1/4" High Shank Metal Ruler Foot For Free Motion QuiltingMetal Quilting Glide Foot and Needle Plate​ #GS1Kit

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Binder Set #S64​Raw Edge Plain Tape Binder Binding Attachment #100LSRight Angle Binder Set #S60Double Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
