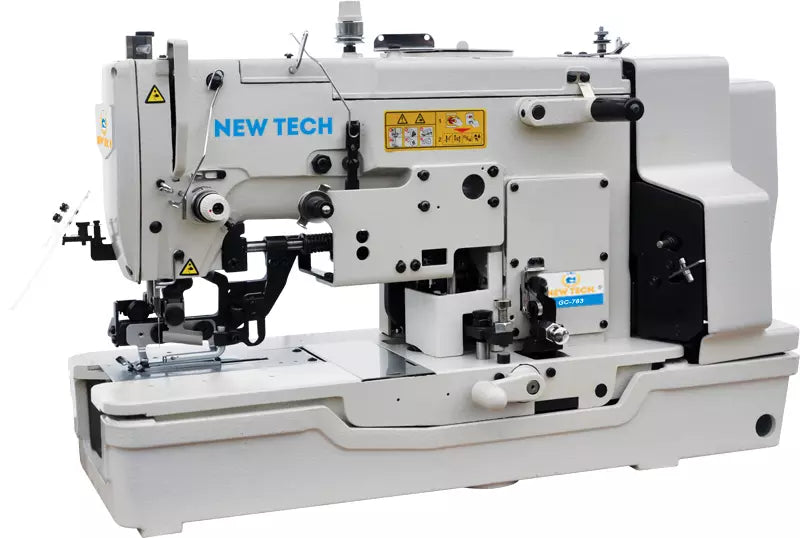

New-Tech GC-783DT Direct Drive Lockstitch Buttonholing Industrial Sewing Machine

New-Tech GC-783DT Direct Drive Lockstitch Buttonholing Industrial Sewing Machine

GC-783DT

1 Needle Lockstitch Buttonholing Industrial Sewing Machine Comes With Table, Legs, Built In Direct Drive Servo Motor and LED Lamp

$3,499.99
$3,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-783DT

is a high-speed industrial buttonholing solution designed to produce consistent, professional-grade seams on everything from delicate knits to heavy workwear. Featuring an integrated Direct Drive Servo Motor, this machine eliminates the noise and vibration of traditional belt-driven systems while offering superior energy efficiency. Its user-friendly design significantly reduces operator fatigue, making it the perfect choice for high-volume garment production.




  • Integrated Direct Drive Motor: The motor is housed directly within the machine head, removing the need for a V-belt. This results in a silent, vibration-free work environment and up to 70% energy savings.
  • Precision Positioning: Features an easily adjustable buttonholing position and a needle thread trimmer mechanism that ensures clean placement without interference.
  • High-Clearance Design: The redesigned face plate and a 12mm work clamp lift provide ample space for handling bulky knits and multi-layered heavy fabrics.
  • Reduced Operator Fatigue: Engineered with a lightweight pedal response and a smooth start/stop mechanism to ensure comfort during long production shifts.
  • Automatic Lubrication: A centralized, automatic system ensures all internal components stay lubricated, extending the machine's lifespan and reducing maintenance downtime.
  • Flexible Stitch Customization: Utilize the gear-change method to adjust the number of stitches (54 to 345) to meet specific garment requirements.
  • Max Sewing Speed : 3,600 SPM (Stitches Per Minute)
  • Buttonhole Length : 6.4mm – 38.1mm (1/4" to 1.5")
  • Work Clamp Lift : Max 12mm
  • Needle System : DPx5 #11J / 134 Nm75
  • Stitch Range : 54 – 345 stitches (Gear-change method)
  • Motor Type : Built-in 110V Direct Drive Servo Motor
  • Lubrication : Fully Automatic

The GC-783DT is optimized for creating high-quality buttonholes in:

  • Menswear & Ladies' Apparel: Dress shirts, blouses, and tailored jackets.
  • Workwear: Durable buttonholes for uniforms, aprons, and utility clothing.
  • Knitwear: Specialized handling for bulky knits and stretch fabrics.
  • Home Textiles: Pillowcases and high-end bedding closures.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

New-Tech GC-783DT Lockstitch Buttonholing Sewing Machine Showcase- Goldstartool.com

Product Showcase - New-Tech GC-783DT - Goldstartool.com

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
