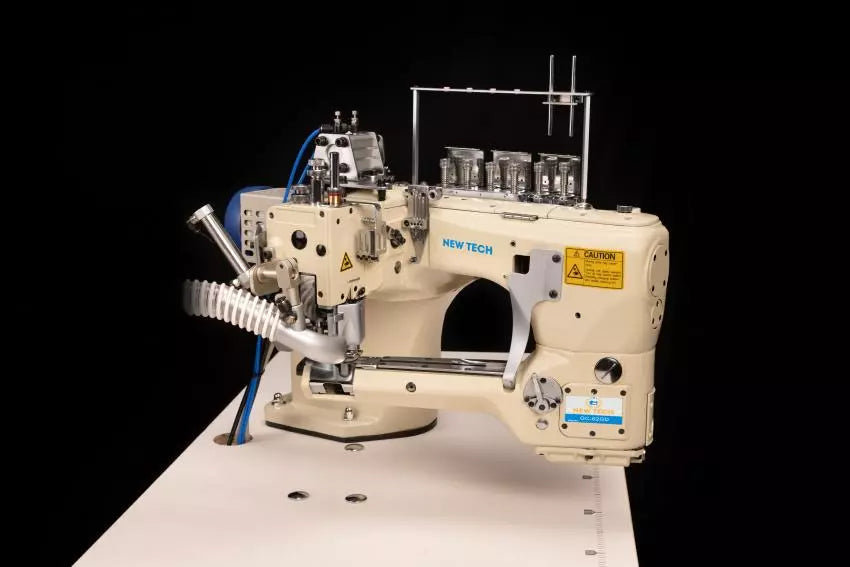

New-Tech GC-62GD Flat Seamer Industrial Sewing Machine

New-Tech GC-62GD Flat Seamer Industrial Sewing Machine

GC-62GD

4-Needle, 6-Thread Feed-Off-The-Arm with Integrated Vacuum & Direct Drive Motor

$3,999.99
$3,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-62GD

is an advanced flat-seaming solution engineered for joining elastic and stretch fabrics with a perfectly flat, irritation-free seam. Featuring a Feed-Off-The-Arm design and a dual-cut fabric trimmer, this machine is essential for producing professional-grade sportswear and intimate apparel. This all-in-one unit includes an integrated Direct Drive Servo Motor for silent, high-torque operation and a specialized vacuum suction system to keep the workspace free of fabric debris.

  • Precision Flat Seaming: Produces a 4-needle, 6-thread top and bottom coverstitch that is exceptionally strong, flat, and comfortable against the skin.
  • Direct Drive Motor: The built-in motor eliminates the need for a belt, providing instant start/stop response, reduced vibration, and up to 70% energy savings.
  • Integrated Vacuum System: Features a pneumatic suction device that automatically removes fabric trimmings, ensuring a clean work environment and preventing clogs.
  • Feed-Off-The-Arm Design: The slim, cantilevered arm allows operators to easily sew tubular items like sleeves, leggings, and cuffs.
  • Dual-Edge Fabric Trimmers: Equipped with high-speed cutters that trim both the upper and lower fabric edges simultaneously before seaming for a perfectly flush finish.
  • Advanced Needle Cooling: Designed for high-speed continuous use without thread breakage or material melting, even on synthetic performance fabrics.
  • Stitch Type : 4-Needle, 6-Thread Flat Seamer (ISO 607)
  • Max Sewing Speed : 4,200 SPM (Stitches Per Minute)
  • Needle Gauge : 5.2mm or 6.0mm
  • Stitch Length : 1.6mm – 2.5mm
  • Needle System : FLx118GCS / UY118GCS
  • Presser Foot Lift : 6mm
  • Differential Feed Ratio : 0.7 : 1.5 (Adjustable)
  • Suction Type : Pneumatic Vacuum (Requires Air Compressor)
  • Motor Type : Built-in 110V Direct Drive Servo

The GC-62GD is the industry standard for "seamless" feel construction in:

  • Activewear & Compression: Yoga pants, leggings, cycling jerseys, and rash guards.
  • Intimate Apparel: High-end underwear, bras, and shapewear.
  • Swimwear: Competitive racing suits and elastic beachwear.
  • Medical & Orthopedic: Elastic bandages, support sleeves, and compression socks.
  • Knitwear: High-quality t-shirt side seams and fleece joining.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
