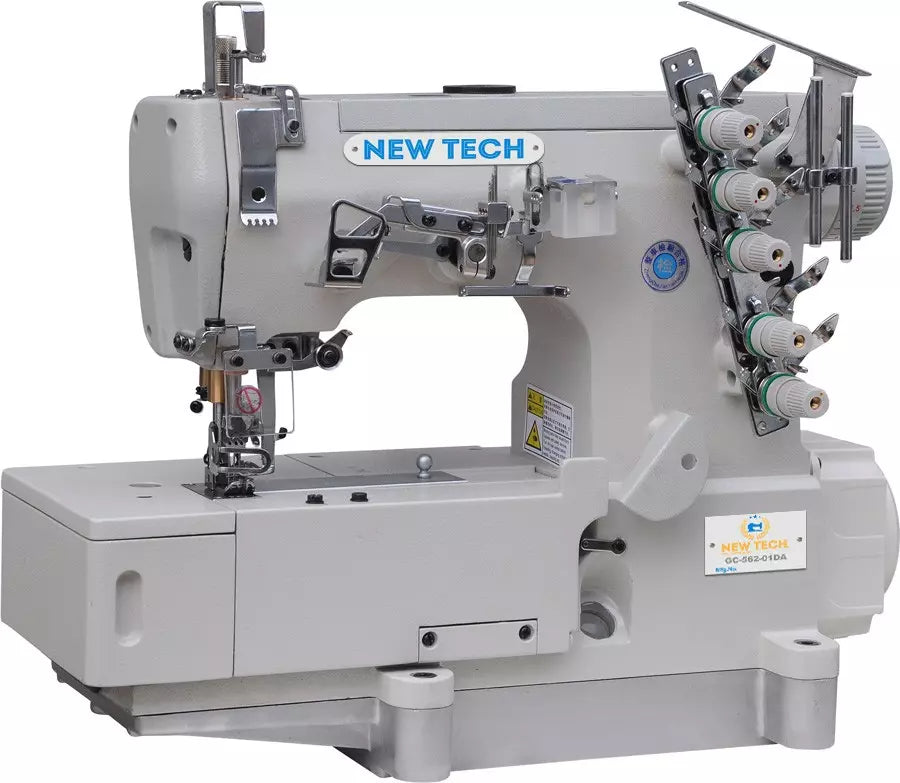

New-Tech GC-562-01DA 3-Needle 5-Thread Flatbed Coverstitch Industrial Sewing Machine

New-Tech GC-562-01DA 3-Needle 5-Thread Flatbed Coverstitch Industrial Sewing Machine

GC-562-01DA

High-Speed Industrial Interlock Machine with Built-in Direct Drive Servo Motor and Table

$1,199.99
$1,199.99 Market price: $1,499.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-562-01DA

is a high-speed flatbed coverstitch machine (interlock) designed for professional garment finishing. Unlike traditional belt-driven machines, this model features a Built-in Direct Drive Servo Motor, offering instantaneous needle response, lower noise levels, and up to 70% energy savings. It is the perfect solution for hemming, binding, and decorative topstitching on light-to-medium weight knit and stretch fabrics, providing the durability and elasticity required for modern apparel.

  • Direct Drive Integration: The motor is built directly into the machine head, eliminating the drive belt for a more stable, vibration-free sewing experience.
  • 5-Thread Versatility: Configured for a 3-needle top-and-bottom coverstitch, but can be easily adapted for 2-needle or 3-needle bottom-only stitching.
  • Adjustable Differential Feed: Includes a micro-adjustment dial to sync the material feed, preventing stretching on elastic knits or puckering on lightweight fabrics.
  • Top Spreader Mechanism: Produces a beautiful decorative finish on the top side of the seam while the looper secures the bottom, ideal for sportswear and activewear.
  • Digital Control Panel: Allows for easy adjustment of maximum sewing speeds and features an automatic needle positioner (Up/Down).
  • Automatic Lubrication: A closed-circuit oiling system ensures internal components remain lubricated at high speeds without the risk of oil staining the fabric.
  • LED Workspace Lighting: Built-in LED light provides clear visibility of the needle area to improve accuracy and reduce operator eye strain.
  • Stitch Type: 3-Needle, 5-Thread Coverstitch (Interlock)
  • Max. Sewing Speed: 6,000 Stitches per Minute (SPM)
  • Needle Spacing: 5.6mm (Standard) / 6.4mm
  • Stitch Length: 1.2mm – 4.4mm
  • Differential Feed Ratio: 0.5 – 1.3
  • Presser Foot Lift: 5mm
  • Needle System: UY128GAS (#9 to #14)
  • Motor Type: 550W Direct Drive Servo Motor (110V)
  • Bed Type: Flatbed

The GC-562-01DA is designed for high-efficiency sewing on flat panels:

  • Hemming: Creating professional hems on T-shirts, polo shirts, and casual wear.
  • Topstitching: Decorative and structural seams on yoga pants, leggings, and activewear.
  • Tape Binding: Attaching neck tape or shoulder reinforcement on knit garments.
  • Underwear & Lingerie: Soft, flat-seam construction for maximum comfort.

Downloads:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

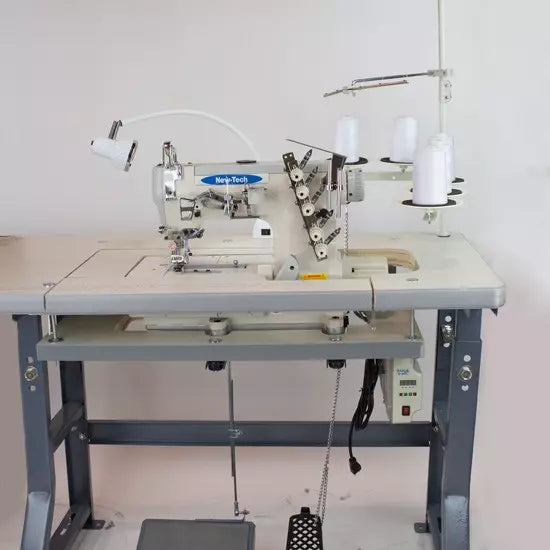

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - New-Tech GC-562-01DA

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
