New-Tech GC-243 Extra Heavy Duty Single Needle Lockstitch Machine With Table and Servo Motor

SKU:GC-243

$2,499.99

$2,499.99 Market price:

Sale Sold out

Head Only (No Table) No, Thank You. Yes, Please.

Delivery within 3-5 working days

View full details

Description
About
Features
Specifications
Application
Manuals & warranty
Servo Motor

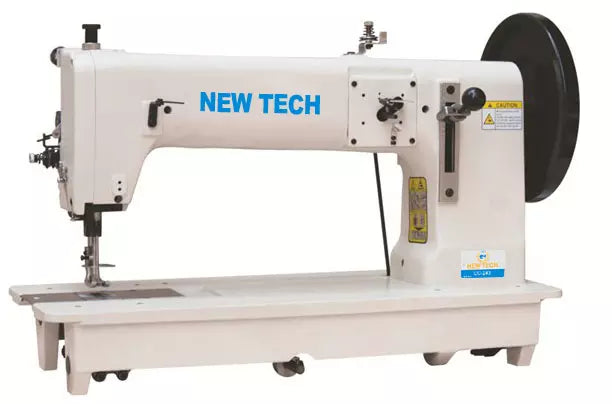

New-Tech GC-243 Extra Heavy Duty Single Needle Lockstitch Machine with Table and Motor

New-Tech GC-243

Extra Heavy Duty Single Needle Lockstitch Machine Comes With Table, Legs, Servo Motor and LED Lamp

Single needle, extra heavy duty lockstitch machine, unison-feed (needle-feed & drop-feed with alternating presser feet), extra-large oscillating shuttle hook and reverse feed.

MACHINE FEATURES:

Stitch length regulator locking system
Built-in bobbin winder
Silicon oil needle cooling system
For sewing extra-heavyweight materials such as canvas, vinyl, and various synthetic fabrics
Suitable for sewing such products as safety belts, tents, cushions, bags, sofas, etc

MACHINE SPECIFICATIONS:

Max. Sewing Speed: 800 spm (Depends on thread, material & type of operation)
Stitch Length Adjustment: 0 to 11mm
Presser Foot Lift:
By hand: 12mm
By pedal: 20mm
Needle System: 7x3
Needle Bar Stroke: 56mm
Feed Type: Unison feed
Hook type: Extra-large oscillating shuttle hook
Amount of Alternating Presser Foot Lift: 5 to 7mm (5mm standard)
Working Space: 420mm
Lubrication System: Manual

MACHINE APPLICATIONS:

For sewing heavy to extra heavy weight materials such as suedes, leather, vinyl, synthetics, laminated and coated products.

Also suitable for sewing such products as cargo handling belts, containers, saddles, covers, sails, tents, camping trailer covers, awnings, handbags, etc.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
