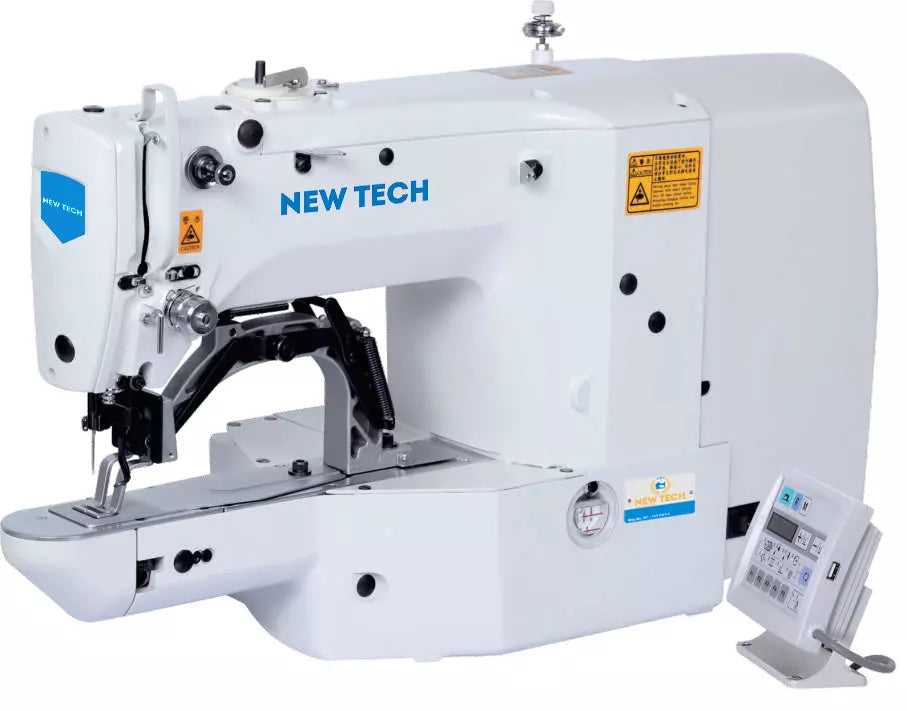

New-Tech GC-1900A Computer Controlled Bartacking Industrial Sewing Machine

New-Tech GC-1900A Computer Controlled Bartacking Industrial Sewing Machine

GC-1900A

High-Speed Electronic Reinforcement Machine with Table and Servo Motor

$3,999.99
$3,999.99 Market price: $4,999.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New Tech GC-1900A

is a state-of-the-art solution for high-volume garment manufacturing. Designed to automate and strengthen stress points, it features a Direct Drive Servo Motor that eliminates belt vibration and noise. With a library of 50 standard patterns and the ability to store up to 20,000 stitches in memory, this machine provides the versatility needed for everything from delicate foundation garments to heavy-duty denim.

  • Superior Productivity: Reaches speeds of up to 3,200 stitches per minute, significantly reducing cycle times for high-output production lines.
  • Active Tension System: Electronically sets and stores needle thread tension based on fabric type and speed, ensuring consistent seam quality across different materials.
  • Advanced Dry-Head Technology: The needle bar and thread take-up lever require no lubrication, completely eliminating the risk of oil stains on finished products.
  • Programmable Pattern Library: Comes pre-loaded with 50 patterns, including specialized tacks for umbrellas and decorative suit buttonholes.
  • Adjustable Sewing Start: Operators can shift the starting point in the X/Y direction through the control panel to align perfectly with the presser foot or garment edge.
  • Integrated Auto-Lifter: Features a stepping motor auto-lifter that can raise the presser foot up to 17mm for easy handling of bulky materials.
  • Application: Standard Eyelet Buttonhole Bartacking Machine
  • Max. sewing speed: 3,200 Stitches per Minute
  • Sewing Area: 30mm x 40mm
  • Needle Bar Stroke: 41.2mm
  • Lift of the Work Clamp Foot: 14mm (17mm when the reverse-rotation needle-up function)
  • Needle: (at the time of delivery) DPx5 (#14)
  • Hook: Standard Shuttle Hook
  • Number of Stitches that can be Stored in Memory Max.: 20,000 stitches
  • Number of Standard Patterns: 50 Patterns
  • Number of Data that can be Input: 200 Patterns (for up to 150 patterns, sewing data can be added.)
  • Lubrication Hook: Minute-Quantity Lubrication
  • Lubricating Oil: New Defrix Oil No.2 (equivalent to ISO VG32)
  • Weight of the machine head: 47.3kg
  • Weight of the Control Box: 11.3kg

The GC-1900A is optimized for reinforcing high-stress areas on:

  • Apparel: Pocket corners, belt loops, and zipper ends on jeans, trousers, and suits.
  • Intimate Apparel: Attaching shoulder straps to brassieres and reinforcing foundation garments.
  • Outdoor Gear: Strengthening stress points on backpacks, webbing, and heavy-duty straps.
  • Specialty Items: Umbrella circular tacks and decorative buttonhole reinforcements.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
