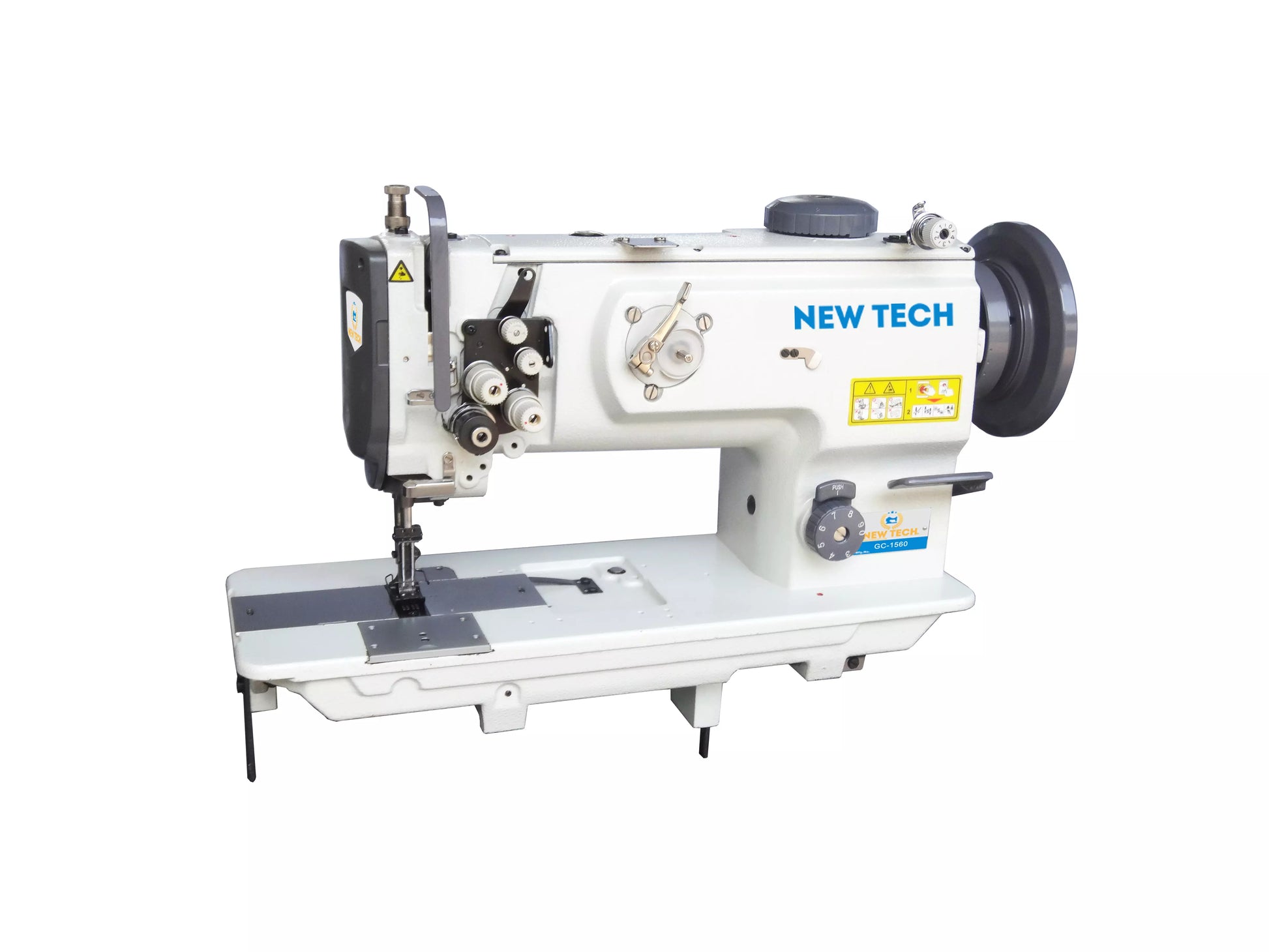

New-Tech GC-1560 Twin-Needle Unison Feed Industrial Sewing Machine

New-Tech GC-1560 Twin-Needle Unison Feed Industrial Sewing Machine

GC-1560

Heavy-Duty Lockstitch with Table and Servo Motor

$1,999.99
$1,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

New-Tech GC-1560

is an essential tool for manufacturers requiring precise, parallel stitching on extra-heavy materials. Featuring a rectangular feeding motion, this machine prevents stitch gathering and ensures uniform feeding even on the thickest seams. This complete workstation includes a heavy-duty industrial table and an energy-saving Servo Motor for ultimate speed control and silent operation.

  • Twin-Needle Precision: Standard 1/4" needle gauge (others available) allows for perfectly parallel decorative and structural seams in a single pass.
  • Unison Feed (Triple Feed): Combines needle feed, walking foot, and feed dog to eliminate "ply shift" and ensure consistent feeding of slippery or heavy fabrics.
  • Rectangular Feed Locus: A specialized feeding motion that provides a consistent feed stroke, significantly reducing stitch gathering compared to traditional elliptical feeds.
  • Large Vertical-Axis Hook: Equipped with a double-capacity hook that accommodates large bobbins, reducing downtime by minimizing bobbin changes.
  • High-Torque Servo Motor: The included electronic motor provides silent operation and precise speed adjustment, using up to 90% less energy than traditional clutch motors.
  • Climbing Height Adjustment: Easily adjust the walking foot lift to navigate over thick cross-seams and varying material thicknesses.
  • Application: Heavy-Weight
  • Max. sewing speed: 2,500 Stitches per Minute
  • Max. stitch length: 9mm (forward/backward)
  • Needle bar stroke: 38mm
  • Lift of the presser foot: By hand 9mmBy knee 18mm
  • Needle Gauge: 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2)
  • Alternating Vertical Movement: 2.5~6.5mm
  • Thread Take-Up: Slide Type
  • Hook: Vertical-Axis Double-Capacity Hook
  • Needle: (at the time of delivery) 135x17 (Nm160) Nm125~Nm180
  • Lubrication: Automatic
  • Lubricating Oil: New Defrix Oil No.2 (equivalent to ISO VG32)
  • Bed Size: 517 mm x 178mm

This machine is highly recommended for the manufacturing of:

  • Automotive Upholstery: Parallel topstitching for car seats, dashboards, and door panels.
  • Furniture & Leather: Leather sofas, heavy canvas cushions, and luggage construction.
  • Marine & Aviation: Boat covers, sails, and aircraft interior upholstery.
  • Heavy-Duty Goods: Tents, awnings, safety harnesses, and tactical gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
