New-Tech GC-1541S Heavy Duty Walking Foot Industrial Sewing Machine

New-Tech GC-1541S Heavy Duty Walking Foot Industrial Sewing Machine

GC-1541S_127834759_127834762

Single Needle, Unison Feed Lockstitch with Safety Clutch, Table, and Servo Motor

$1,449.98
$1,449.98 Market price:
Sale Sold out
Head Only
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

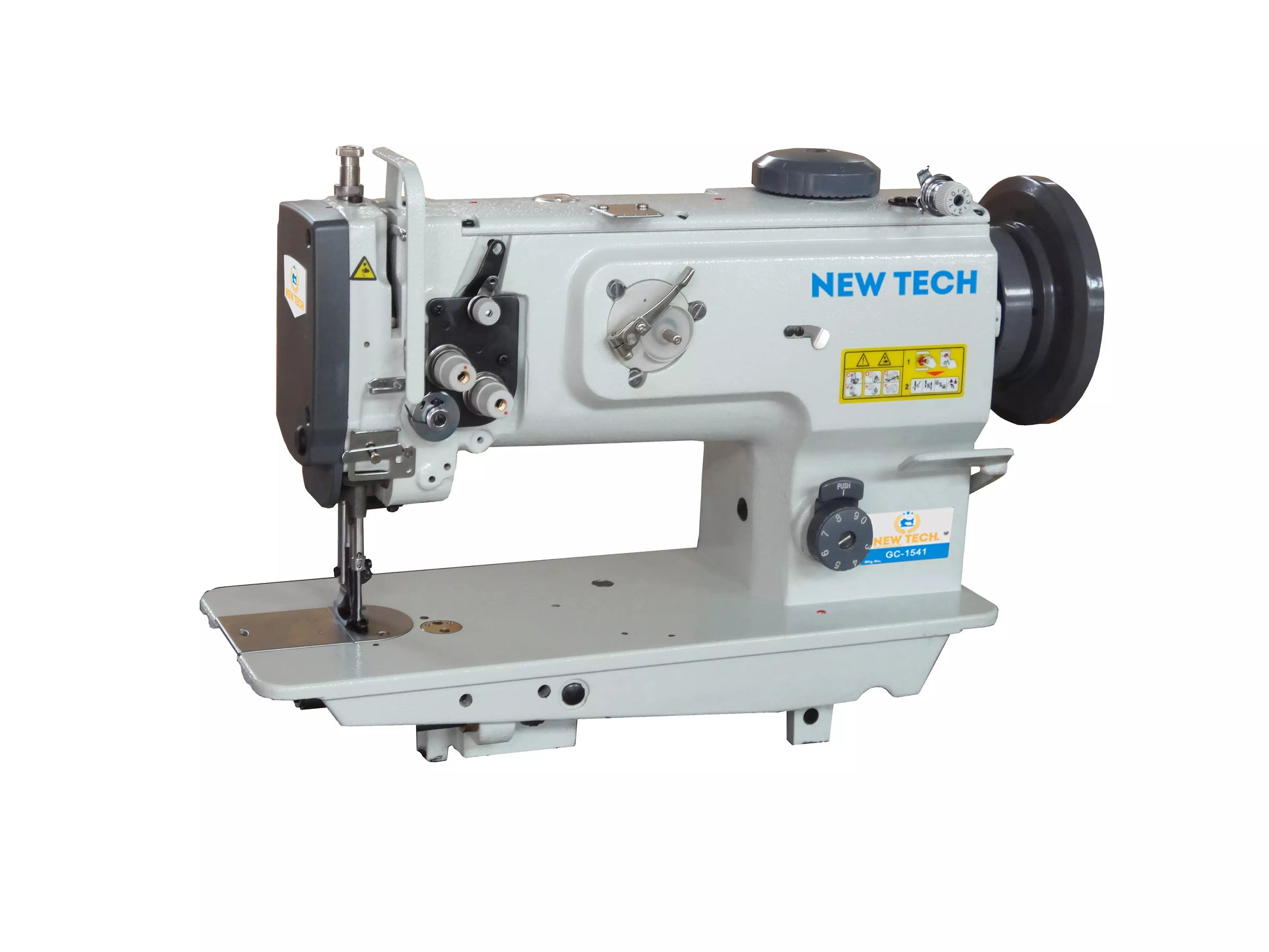

New-Tech GC-1541S

is an industrial-grade powerhouse designed for high-performance sewing on medium to extra-heavyweight materials. Built as a high-quality alternative to the Juki DNU-1541S, it features a unison-feed (triple-feed) mechanism and a rectangular feeding motion that ensures consistent, beautiful seams without material shifting or stitch gathering. This complete unit comes fully equipped with a heavy-duty table and an energy-efficient Servo Motor, making it the ideal choice for upholstery, automotive, and leather fabrication.


  • Unison Feed (Triple Feed): Combines needle feed, walking foot, and feed dog to move heavy or multi-layered fabrics evenly, preventing "ply shift."
  • Safety Clutch Mechanism: Built-in "S" model safety clutch automatically disengages the hook during thread jams, protecting the machine from internal timing damage.
  • Rectangular Feed Locus: Utilizes a specialized rectangular feed motion (rather than elliptical) to provide consistent feeding across all material thicknesses.
  • Dual Tension System: Features a double-tension mechanism that supports high-tension sewing with thick threads, ensuring excellent stitch quality on heavy goods.
  • Climbing Height Adjustment: A top-mounted dial allows you to easily adjust the walking foot's vertical stroke (up to 6.5mm) to clear thick seams or transitions.
  • Large Horizontal-Axis Hook: Includes a double-capacity hook that accommodates large "M" style bobbins, significantly reducing downtime for bobbin changes.
  • Adjustable Servo Motor: Provides silent operation and 0–3,450 RPM speed control, using up to 90% less energy than traditional clutch motors.
  • Max. Sewing Speed: 2,500 Stitch per Minute
  • Max. Stitch Length: 9mm (forward / backward)
  • Needle Bar Stroke: 36mm
  • Lift of the Presser Foot by Hand: 9mmFoot by Knee: 16mm
  • Thread Take-Up: Slide Type
  • Amount of Altering Vertical Movement: 2.5~6.5mm
  • Hook: Horizontal-Axis Full-Rotary Double-Capacity Hook
  • Needle (at time of delivery): 135x17 (Nm160) Nm125~Nm180
  • Bobbin Case: #18045
  • Bobbins: #18034
  • Thread: #30~#5, B46~B138, Nm=60/3~15/3
  • Pitch Changing Method: By Dial
  • Lubrication: Centralized Oil Wick
  • Lubricating Oil: ISO VG32
  • Distance from Needle to Machine Arm: 264mm
  • Bed Size: 477x178mm
  • Motor Output: 750W

The New-Tech GC-1541S is the industry standard for manufacturing high-durability items:

  • Automotive & Marine: Car upholstery, boat covers, convertible tops, and seat covers.
  • Leather Goods: Heavy handbags, luggage, belts, holsters, and wallets.
  • Upholstery: Vinyl, leather, and heavy canvas furniture covers.
  • Outdoor Gear: Tents, awnings, sails, tarpaulins, and camping equipment.
  • Specialty Items: Cargo straps, tactical gear, and heavy denim construction.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the NEW-TECH GC-1541S</h2>
<div class="row">
<div class="col-lg-auto">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-m-style-bobbins-18034.htm" target="_blank">Large "M" Style Bobbins #18034</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Bobbin Case - Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a>
<a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a></p></div>
<div class="col-lg">

<strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K</a><br><a href="https://www.goldstartool.com/cut-out-welting-presser-foot-set.htm" target="_blank">Cut Out Welting Presser Foot Set #S68</a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a>&nbsp;<strong><br><br></strong><h3><strong>OTHER ATTACHMENTS</strong></h3>
<p><em><strong>BINDERS/FOLDERS</strong></em><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p></div>
<p></p>
<p></p>
<p></p>
<p></p>
</div>

ACCESSORIES for the NEW-TECH GC-1541S

Needles: Sewing Machine Needles 135x17
Bobbins: Large "M" Style Bobbins #18034
Bobbin Case: Bobbin Case - Metal "M" Size #18045
Needle Plate: Needle Plate - JUKI #214-10006
Feed Dog: Feed Dog - JUKI #400-19908

PRESSER FOOT KIT
Walking Foot Presser Foot Kit - 18 Sets of Feet


COMPATIBLE PRESSER FOOT OPTIONSWith Teeth Walking Presser Foot Set #10796T, 10795TWithout Teeth Walking Presser Foot Set #10796, 10795Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83
Welting / Piping / Cording Walking Presser Foot Set #S31, S32Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795KCut Out Welting Presser Foot Set #S68
Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L
Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R
Left Triple Transport Walking Presser Foot Set #10796L, 10795L
Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERS
Raw Edge Plain Tape Binder Binding Attachment #100LS
Double Fold Binder / Binding Attachment Folder #508L
Top Mount Collarette Binder Top Clean
Table Mount Coverstitch Collarette Binder #S124A

HEMMER
Single Fold Up Turn Hemmer #S75U

BUTTONHOLER
Buttonholer Attachment #YS-4455

RUFFLER
Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
