New-Tech GC-1508NH Extra Heavy Duty Walking Foot Industrial Sewing Machine

New-Tech GC-1508NH Extra Heavy Duty Walking Foot Industrial Sewing Machine

GC-1508NH

Single Needle, Unison Feed Lockstitch with Large Vertical Hook, Table, and Servo Motor

$1,999.99
$1,999.99 Market price: $2,800.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

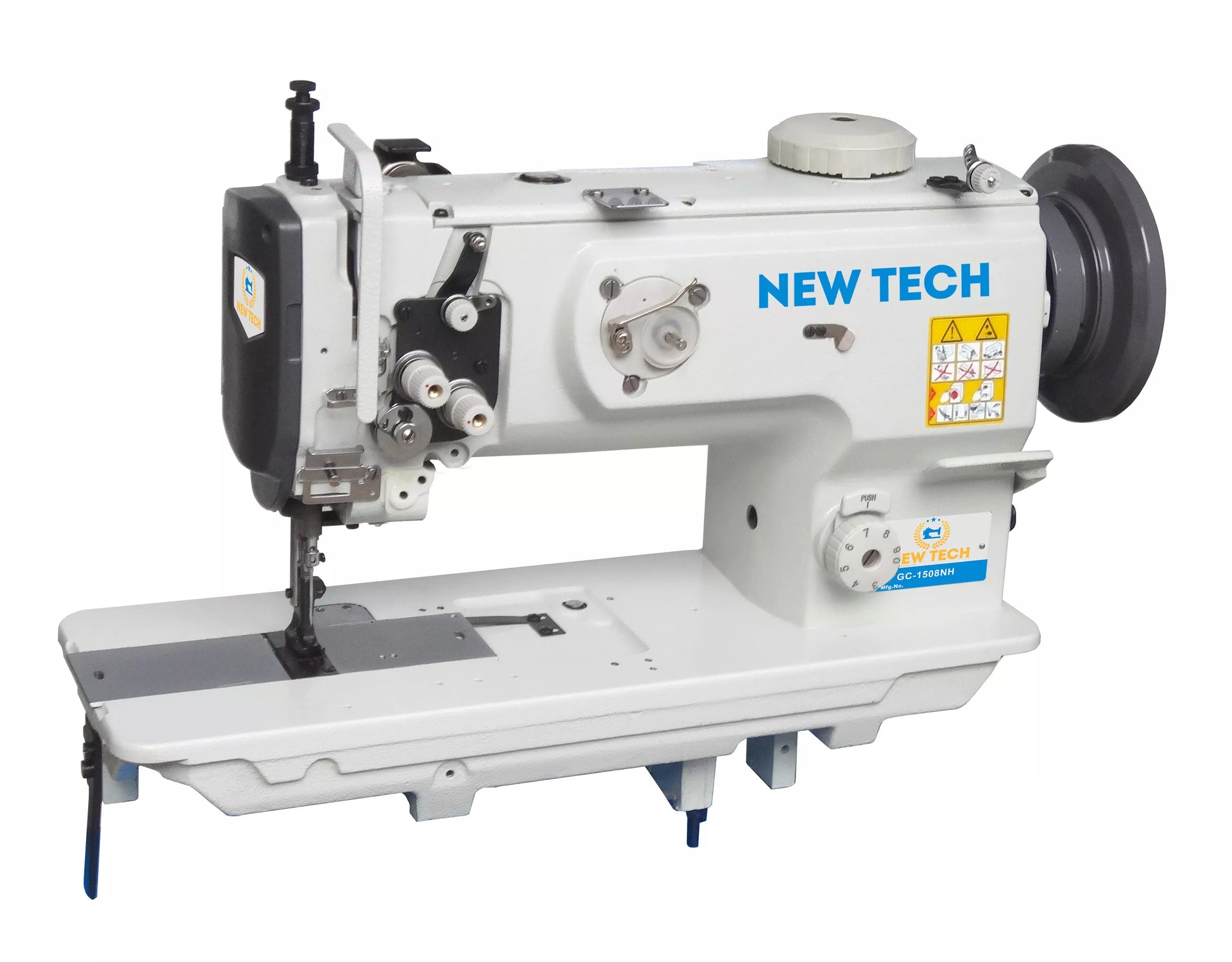

New-Tech GC-1508NH

is an industrial workhorse designed for high-tension sewing on extra-heavyweight materials. Built with a unison-feed (triple-feed) system, it utilizes a specialized rectangular feeding motion that ensures consistent stitch quality and prevents material gathering, even when navigating bulky seams. This complete workstation includes a heavy-duty table and an adjustable-speed Servo Motor, offering the precision and power required for professional upholstery, automotive, and leather fabrication.



  • Superior Unison Feed System: Combines needle feed, walking foot, and bottom feed to eliminate fabric shifting and ensure smooth movement of heavy, multi-layered materials.
  • Rectangular Feed Locus: Unlike traditional elliptical feeds, the rectangular motion provides a consistent feed stroke, significantly reducing stitch gathering and maintaining precise pitch.
  • Extra-Large Steel Handwheel: Equipped with a high-torque 175mm diameter handwheel, providing manual power and control for ultra-thick sections.
  • Extended Needle Stroke: Features a 38mm needle bar stroke and uses long 190R needles to penetrate the toughest industrial fabrics.
  • Vertical-Axis Double Capacity Hook: Reduces bobbin changes by 50% compared to standard hooks, increasing efficiency during long production runs.
  • Safety Clutch Mechanism: Automatically protects the hook from damage if a thread jam occurs, easily resettable with a single button.
  • Adjustable Walking Foot Height: A convenient dial on top of the machine allows you to adjust the foot's climbing height to clear thick seams without snagging.
  • Application: Extra Heavy-Weight
  • Max. Sewing Speed: 2,000 Stitches per Minute
  • Max. Stitch Length: 10mm (forward/backward)
  • Needle Bar Stroke: 38mm
  • Lift of the Presser Foot by Knee: 16mm
  • Alternating Vertical Movement: 2.5~6.5mm
  • Thread: #20～#1, B69～B207, Nm=40/3～8/3
  • Thread Take-Up: Slide Type
  • Needle (at the time of delivery): Standard 190R or 135x17(Nm180) Nm125~Nm200
  • Locus Feed: Complete Rectangular Feed
  • Lubrication: Centralized oil wick lubrication (hook: automatic)
  • Lubrication Oil: ISO VG32
  • Distance from needle to machine arm: 255mm
  • Bed Size: 517mm x 178mm

The GC-1508NH is optimized for the most demanding heavy-duty tasks:

  • Automotive & Aviation: Car seats, seatbelts, airbags, and aircraft interiors.
  • Furniture Upholstery: Leather sofas, heavy canvas cushions, and vinyl coverings.
  • Marine & Outdoor: Boat covers, sails, tents, awnings, and tarpaulins.
  • Technical Textiles: Webbing, safety harnesses, lifting straps, and heavy-duty bags.
  • Leathercraft: Luggage, heavy-duty belts, and footwear construction.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2>ACCESSORIES for the NEW-TECH GC-1508NH</h2>
<div class="row">
<div class="col-lg-auto">
<p><strong>Needles:</strong> <a href="https://www.goldstartool.com/sewing-machine-needles-135x17.htm" target="_blank">Sewing Machine Needles 135x17</a><br><strong>Bobbins:</strong> <a href="https://www.goldstartool.com/large-capacity-bobbin-for-walking-foot-double-needle-industrial-sewing-machine-b9117-563-000.htm" target="_blank">Large Capacity Bobbin #B9117-563-000</a><br><strong>Bobbin Case:</strong> <a href="https://www.goldstartool.com/bobbin-case-metal-m-size-18045.htm" target="_blank">Bobbin Case - Metal "M" Size #18045</a><br><strong>Needle Plate:</strong> <a href="https://www.goldstartool.com/needle-plate-juki-214-10006.htm" target="_blank">Needle Plate - JUKI #214-10006</a><br><strong>Feed Dog:</strong> <a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank">Feed Dog - JUKI #400-19908<br></a><br><em><strong>PRESSER FOOT KIT<br></strong></em><a href="https://www.goldstartool.com/walking-foot-presser-foot-kit-18-sets-of-feet.htm" target="_blank">Walking Foot Presser Foot Kit - 18 Sets of Feet</a>
<a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a><a href="https://www.goldstartool.com/feed-dog-juki-400-19908.htm" target="_blank"><br></a></p></div>
<div class="col-lg">

<strong><em>COMPATIBLE PRESSER FOOT OPTIONS</em><br></strong><a href="https://www.goldstartool.com/with-teeth-walking-presser-foot-set-10796t-10795t.htm" target="_blank">With Teeth Walking Presser Foot Set #10796T, 10795T</a><br><a href="https://www.goldstartool.com/without-teeth-walking-presser-foot-set-10796-10795.htm" target="_blank">Without Teeth Walking Presser Foot Set #10796, 10795</a><br><a href="https://www.goldstartool.com/zcording-welting-piping-industrial-walking-presser-foot-set-s84-s83-.htm" target="_blank">Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83<br></a><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-s31-s32.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #S31, S32</a><br><a href="https://www.goldstartool.com/welting-piping-cording-walking-presser-foot-set-10796k-10795k.htm" target="_blank">Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795K<br></a><a href="https://www.goldstartool.com/zipper-cording-welting-piping-industrial-walking-presser-foot-set-s94-s93-.htm" target="_blank">Zipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93</a><br><a href="https://www.goldstartool.com/left-edge-guide-topstitch-industrial-walking-presser-foot-s585l.htm" target="_blank">Left Edge Guide Topstitch Industrial Walking Presser Foot #S585L<br></a><a href="https://www.goldstartool.com/right-edge-guide-topstitch-industrial-walking-presser-foot-s585r.htm" target="_blank">Right Edge Guide Topstitch Industrial Walking Presser Foot #S585R<br></a><a href="https://www.goldstartool.com/left-triple-transport-walking-presser-foot-set-10796l-10795l.htm" target="_blank">Left Triple Transport Walking Presser Foot Set #10796L, 10795L<br></a><a href="https://www.goldstartool.com/right-triple-transport-industrial-walking-presser-foot-set-10796r-10795r.htm" target="_blank">Right Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R</a><br><br>
<p></p><h3>OTHER ATTACHMENTS</h3>
<p><em><strong>BINDERS/FOLDERS</strong></em><a href="https://www.goldstartool.com/raw-edge-plain-tape-binder-binding-attachment-100ls.htm" target="_blank"><br>Raw Edge Plain Tape Binder Binding Attachment #100LS</a><br><a href="https://www.goldstartool.com/double-fold-binder-binding-attachment-folder-508l.htm" target="_blank">Double Fold Binder / Binding Attachment Folder #508L</a><a href="https://www.goldstartool.com/collarette-binder-top-mount-1864.htm" target="_blank"><br>Top Mount Collarette Binder Top Clean</a><br><a href="https://www.goldstartool.com/table-mount-coverstitch-collarette-binder.htm" target="_blank">Table Mount Coverstitch Collarette Binder #S124A</a></p>
<p><strong><em>HEMMER</em></strong><a href="https://www.goldstartool.com/single-fold-up-turn-hemmer-s75u.htm" target="_blank"><br>Single Fold Up Turn Hemmer #S75U</a></p>
<p><strong><em>BUTTONHOLER</em></strong><a href="https://www.goldstartool.com/buttonholer-attachment-ys-4455.htm" target="_blank"><br>Buttonholer Attachment #YS-4455</a></p>
<p><strong><em>RUFFLER</em></strong><a href="https://www.goldstartool.com/deluxe-ruffler-attachment-for-industrial-sewing-machines-g900e.htm" target="_blank"><br>Deluxe Ruffler Attachment for Industrial Sewing Machines #G900E</a></p>
<p><strong><em>GUIDES<br></em></strong><a href="https://www.goldstartool.com/practical-suspended-edge-guide-gb-6-juki-mah-15201-0a0.htm" target="_blank">Practical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0</a></p>


</div>
</div>

ACCESSORIES for the NEW-TECH GC-1508NH

Needles: Sewing Machine Needles 135x17Bobbins: Large Capacity Bobbin #B9117-563-000Bobbin Case: Bobbin Case - Metal "M" Size #18045Needle Plate: Needle Plate - JUKI #214-10006Feed Dog: Feed Dog - JUKI #400-19908PRESSER FOOT KITWalking Foot Presser Foot Kit - 18 Sets of Feet

COMPATIBLE PRESSER FOOT OPTIONSWith Teeth Walking Presser Foot Set #10796T, 10795TWithout Teeth Walking Presser Foot Set #10796, 10795Cording / Welting / Piping Industrial Walking Presser Foot Set #S84, S83Welting / Piping / Cording Walking Presser Foot Set #S31, S32Welting / Piping / Cording Walking Presser Foot Set #10796K, 10795KZipper / Cording / Welting / Piping Industrial Walking Presser Foot Set #S94, S93Left Edge Guide Topstitch Industrial Walking Presser Foot #S585LRight Edge Guide Topstitch Industrial Walking Presser Foot #S585RLeft Triple Transport Walking Presser Foot Set #10796L, 10795LRight Triple Transport Industrial Walking Presser Foot Set #10796R, 10795R

OTHER ATTACHMENTS

BINDERS/FOLDERSRaw Edge Plain Tape Binder Binding Attachment #100LSDouble Fold Binder / Binding Attachment Folder #508LTop Mount Collarette Binder Top CleanTable Mount Coverstitch Collarette Binder #S124A

HEMMERSingle Fold Up Turn Hemmer #S75U

BUTTONHOLERButtonholer Attachment #YS-4455

RUFFLERDeluxe Ruffler Attachment for Industrial Sewing Machines #G900E

GUIDESPractical Suspended Edge Guide GB-6 - JUKI #MAH-15201-0A0

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
