New-Tech GC-1377D Direct-Drive Chainstitch Button Attaching Industrial Sewing Machine

New-Tech GC-1377D Direct-Drive Chainstitch Button Attaching Industrial Sewing Machine

GC-1377D

This machine is suitable for two-hole and four-hole flat button attachments.

$1,499.99
$1,499.99 Market price: $2,499.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

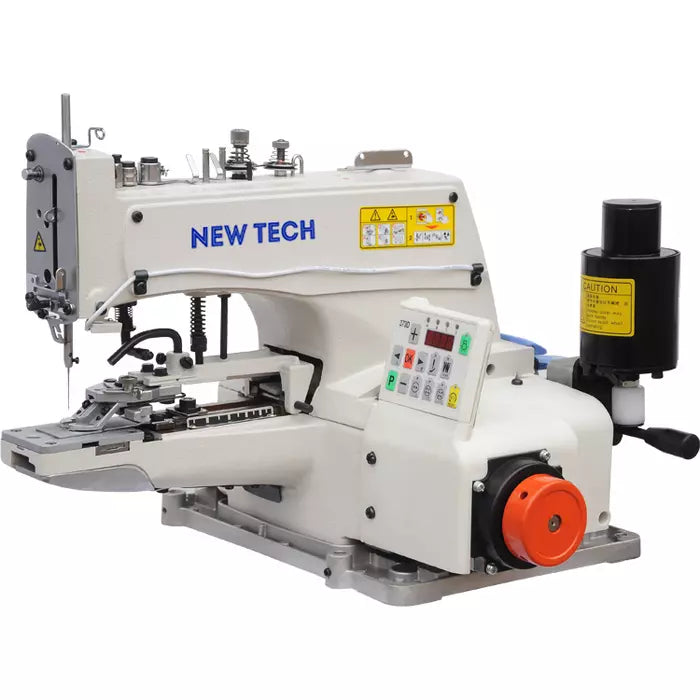

New-Tech GC-1377D

is a high-speed, specialized industrial button sewer designed for maximum efficiency in apparel production. Featuring an integrated Direct-Drive Servo Motor, this machine eliminates the noise and vibration of belt-driven systems while providing instant start/stop response. It is engineered to attach 2-hole, 4-hole, or shank buttons with a secure single-thread chainstitch, ensuring a professional finish on everything from delicate blouses to heavy work shirts.

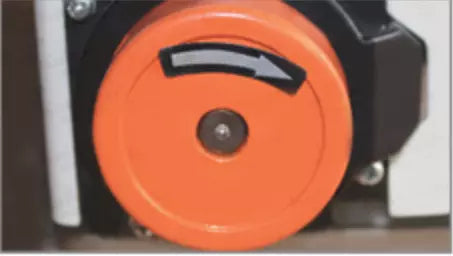

  • Integrated Direct-Drive Motor: The motor is built directly into the machine head, offering silent operation, energy savings of up to 70%, and precise needle positioning.
  • Versatile Stitch Patterns: Easily switch between 2-hole and 4-hole button configurations with a simple lever adjustment. It can also sew in "C" or "X" patterns for 4-hole buttons.
  • Automatic Thread Trimmer: Increases productivity by automatically cutting the thread at the end of each cycle, reducing manual labor and thread waste.

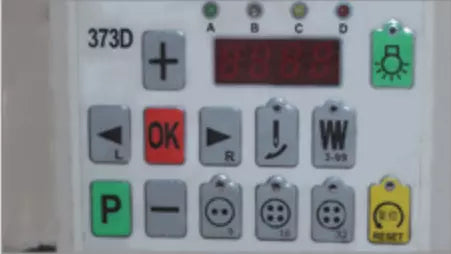

  • Speed Control & Accuracy: The digital control panel allows the operator to set the exact sewing speed, ensuring consistent quality even on difficult materials.

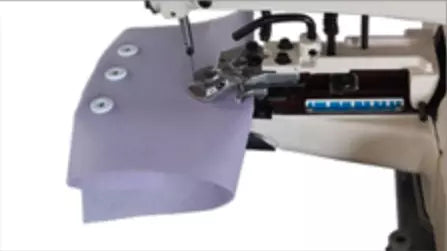

  • Compact Cylinder Bed: Designed to allow easy access for sewing buttons on shirt cuffs, collars, and waistbands.
  • Vibration Reduction: The modern internal balancing system ensures the machine remains stable at high speeds, reducing operator fatigue.
  • Max. sewing speed: 1,500rpm
  • Number of stitches: 8, 16, and 32 stitches
  • Feed length (crosswise feed): 2.5～6.5mm
  • Feed length (lengthwise feed): 0～6.5mm
  • Applicable button: Shank button, Wrapped-around button, Snap, Label, Metal button, Stay button (exclusive attachments have to be used)
  • Button size: φ10～28mm (thickness of button: 1.8～3.5mm)
  • Needle: TQ×1 (#16) #14～20

The GC-1377D is a vital asset for finishing departments in:

  • Dress Shirt Manufacturing: Attaching standard 4-hole front buttons and 2-hole cuff buttons.
  • Workwear & Uniforms: Securing heavy-duty buttons on utility shirts and trousers.
  • Blouses & Knitwear: Gentle enough for delicate fabrics while maintaining a secure hold.
  • Labels & Snap Fasteners: Can be adapted for sewing certain types of flat snaps or small labels.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
