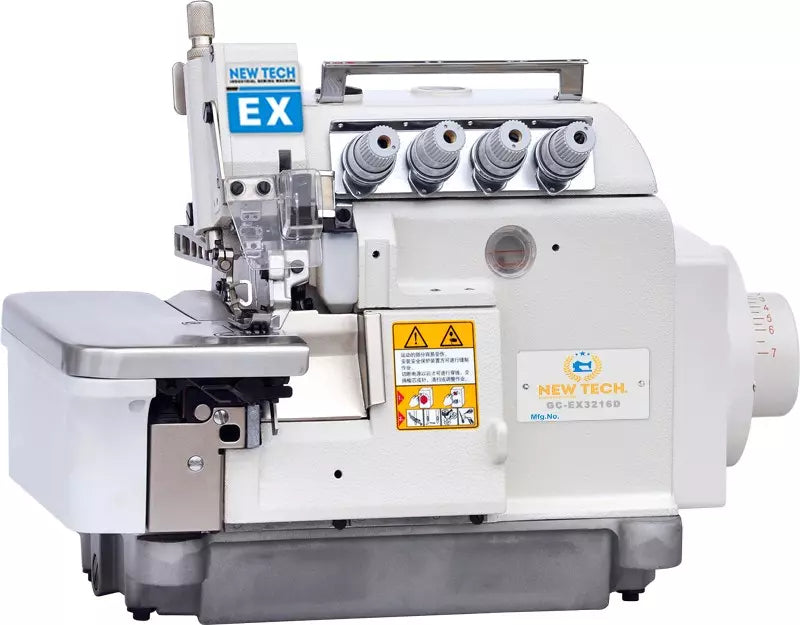

New-Tech EX-3216D High-Speed 5-Thread Direct Drive Overlock Industrial Sewing Machine

New-Tech EX-3216D High-Speed 5-Thread Direct Drive Overlock Industrial Sewing Machine

EX-3216-D

Industrial Safety Stitch Serger with Integrated Servo Motor and Fully Assembled Table

$1,199.99
$1,199.99 Market price: $1,650.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

New-Tech EX-3216D

is a high-performance industrial 5-thread overlock machine designed for high-speed seaming and edge finishing. By utilizing a Built-in Direct Drive Servo Motor, this machine eliminates the need for a drive belt, resulting in a quieter workspace, reduced vibration, and significant energy savings. The 5-thread configuration provides a strong "safety stitch," making it the industry standard for apparel that requires both a professional overlock edge and a durable structural seam.

  • Direct Drive Technology: The motor is mounted directly onto the machine head, providing instantaneous start/stop response and eliminating belt-slip.
  • Energy Efficient: Consumes up to 70% less electricity compared to traditional clutch motors and operates silently when not in use.
  • Integrated Control Panel: Easily adjust sewing speeds and needle positioning (Up/Down) directly on the machine head to suit different skill levels and fabric types.
  • High-Speed Versatility: Capable of reaching up to 6,500 SPM, significantly increasing production output for light to medium-heavy fabrics.
  • Advanced Lubrication System: Features a fully automatic oiling system with a high-efficiency oil filter to ensure longevity during continuous industrial use.
  • Differential Feed Adjustment: Fine-tune the feed ratio to prevent fabric puckering on thin materials or "waving" on stretch fabrics.
  • LED Workspace Lighting:Integrated LEDlamp illuminatesthe needle area for improved accuracy and reduced eye strain.
  • Stitch Type: 5-Thread Safety Stitch (504+401)
  • Max. Sewing Speed: 6,500 Stitches per Minute (SPM)
  • Stitch Width: 5mm (Overlock width)
  • Stitch Length: 0.5mm – 3.8mm
  • Needle Gauge: 3mm
  • Differential Feed Ratio: 0.7 – 2.0
  • Presser Foot Lift: Up to 5.5mm
  • Needle System: DCx27 (B-27)
  • Motor Type: 550W Direct Drive Servo Motor (110V)
  • Lubrication: Fully Automatic

The EX-3216D is the primary tool for high-volume garment construction, including:

  • Apparel: Woven shirts, blouses, trousers, and skirts.
  • Denim & Workwear: Light to medium-weight jeans and durable uniforms.
  • Home Textiles: Bedding, pillowcases, and lightweight curtains.
  • Knitwear: Provides a secure, flexible seam for jerseys and sportswear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h2><u>PARTS & ACCESSORIES for the JUKI DDL-8700</u></h2>
<p><strong>Needles:</strong>&nbsp;<a href="https://www.goldstartool.com/overlock-sewing-machine-needles-b27.htm" target="_blank">Overlock Sewing Machine Needles B27</a><br><strong>Upper Knife (flat)</strong>:&nbsp;<a href="https://www.goldstartool.com/upper-knife-juki-700-00229.htm">Upper Knife - JUKI #700-00229​​/201121A</a><strong><br>Upper Knife (angled)</strong>:&nbsp;<a href="https://www.goldstartool.com/upper-knife-juki-118-45807.htm">Upper Knife - JUKI #118-45807​​/210755</a><strong><br>Lower Knife:</strong>&nbsp;<a href="https://www.goldstartool.com/lower-knife-juki-700-00399.htm">Lower Knife - JUKI #700-00399/202295</a></p>
<p></p>

PARTS & ACCESSORIES for the JUKI DDL-8700

Needles: Overlock Sewing Machine Needles B27
Upper Knife (flat): Upper Knife - JUKI #700-00229​​/201121A
Upper Knife (angled): Upper Knife - JUKI #118-45807​​/210755
Lower Knife: Lower Knife - JUKI #700-00399/202295

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
