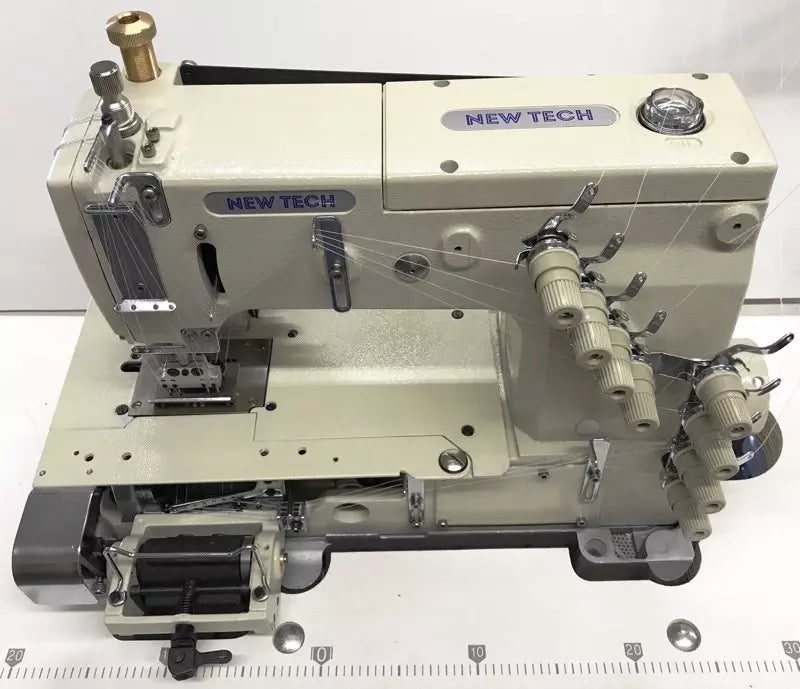

New-Tech 1404-PMD 4-Needle Flatbed Double Chain Stitch Industrial Sewing Machine

New-Tech 1404-PMD 4-Needle Flatbed Double Chain Stitch Industrial Sewing Machine

1404-PMD

Industrial Multi-Needle Machine with Metering Device, Rear Puller, Table, and Servo Motor

$2,999.99
$2,999.99 Market price: $3,600.00
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty
  • More accessories

New-Tech 1404-PMD

is a high-speed, multi-needle double chain stitch machine engineered for professional garment reinforcement and decorative stitching. Featuring a Flatbed design and a synchronized Rear Puller (PMD), this machine provides exceptional feeding power for heavy-weight materials. Its double chain stitch mechanism ensures high-elasticity seams that will not snap under tension, making it the industry standard for attaching waistbands, sewing lap seams, and applying decorative tapes.

  • 4-Needle Multi-Stitching: Allows for four parallel rows of perfectly spaced chain stitching in a single pass, significantly increasing production speed.
  • PMD Rear Puller System: Equipped with a mechanical rear puller that assists in feeding thick or bulky fabrics, ensuring consistent stitch length and preventing material slippage.
  • Metering Device: Features an integrated metering system to provide uniform tension for elastic or tape attachments, essential for high-quality waistbands.
  • Double Chain Stitch (ISO 401): Produces a durable, flexible stitch that is stronger and more elastic than a standard lockstitch, ideal for high-stress seams.
  • Adjustable Needle Gauges: Easily configurable to different needle spacings to meet specific design or structural requirements.
  • High-Torque Servo Motor: The included adjustable-speed motor runs silently, consumes 70-90% less energy than clutch motors, and allows for precise stitch-by-stitch control.
  • Automatic Lubrication: A fully enclosed pump-driven oiling system ensures smooth operation and a long lifespan during continuous industrial use.
  • Number of Needles: 4
  • Stitch Type: Double Chain Stitch (401)
  • Max. Sewing Speed: 3,500 – 4,000 Stitches per Minute (SPM)
  • Standard Needle Gauge: 1/4" (Other sizes available)
  • Stitch Length: 2mm – 5mm
  • Needle System: UOx113GS / DVx57
  • Presser Foot Lift: 12mm
  • Puller Type: Synchronized Mechanical Rear Puller
  • Motor Type: 550W High-Torque Servo Motor (110V)
  • Lubrication: Fully Automatic

The 1404-PMD is specialized for the heavy-duty construction of:

  • Denim & Workwear: Attaching waistbands to jeans and heavy canvas trousers.
  • Uniforms: Creating decorative side-stripes and reinforced lap seams.
  • Sportswear: Applying elastic and tape to waistbands and tracksuits.
  • Heavy Fabrics: Decorative and structural stitching on bags, upholstery trim, and canvas gear.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

<h3>MACHINE ACCESSORIES:</h3>
<ul><li>Oiler</li><li>T-Wrench</li><li>Screw Driver</li><li>Needle</li><li>Tweezers</li><li>Allen Key, (1.3mm)</li><li>Allen Key (1.5)</li><li>Allen Key ( 2.5)</li><li>Allen Key (3mm)</li><li>Allen Key (5mm)</li><li>Oil Can,</li><li>Oil Funnel</li></ul>

MACHINE ACCESSORIES:

  • Oiler
  • T-Wrench
  • Screw Driver
  • Needle
  • Tweezers
  • Allen Key, (1.3mm)
  • Allen Key (1.5)
  • Allen Key ( 2.5)
  • Allen Key (3mm)
  • Allen Key (5mm)
  • Oil Can,
  • Oil Funnel

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
