New Generation Penumatic Cutting Machine-Jema #JM-120PH

New Generation Penumatic Cutting Machine-Jema #JM-120PH

JM-120PH

$2,449.99
$2,449.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

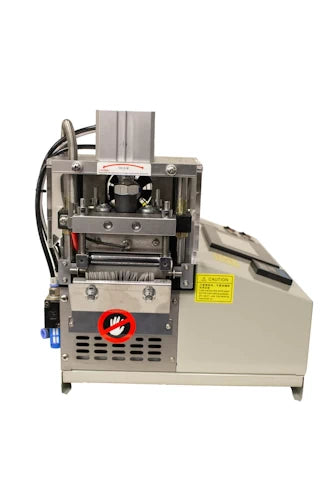

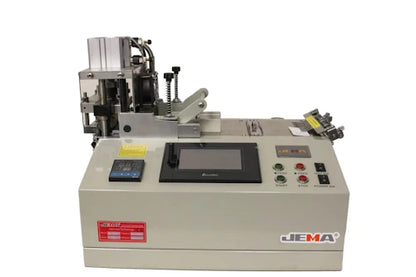

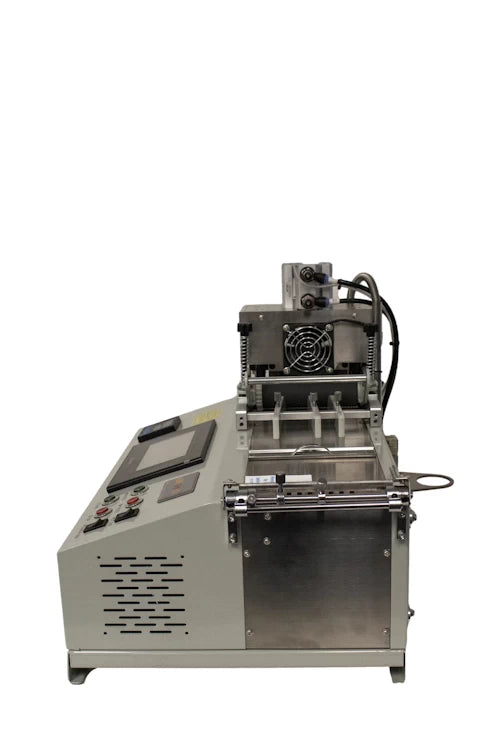

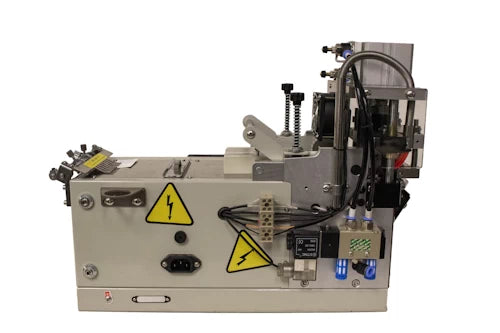

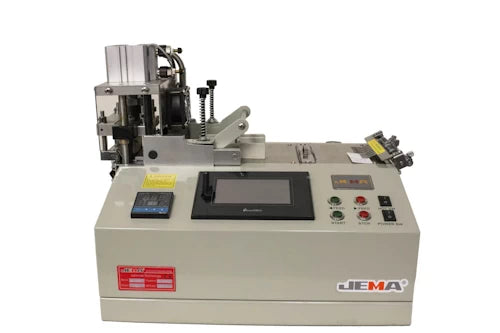

New Generation Penumatic Cutting Machine-Jema #JM-120PH

This New generation hot cutting machine works automatically by only setting speed, length, quantity, and temperature. It will stop automatically if the material runs out during operation.

It can cut a wide variety of materials, such as

  • Strip Tape
  • Ribbon Tape
  • Bag Band
  • Small Webbing

MACHINE FEATURES:

  • High Speed: Cut 170 Pieces Per Minute (50MM LONG )
  • Accuracy: Faster and accurate cut by the sensor and software
  • Cutting Type: Melting and cutting by hot knife, woven label, is cut neatly without trying and installed with an anti-static electricity device
  • Cutting Times: It can set the quantity of cutting times to achieve a good quality cut
  • Cutter Speed: It can set the cutter speed for some thick and strong materials to achieve effective cutting
  • Touch Panel Control System: Adopt PLC system, multilingual conversion by the touch panel. The page of function is intuitive and easy to operate, and the setting is convenient
  • Compensation: After the actual length of data is inputted accurately, cut out the length to meet the system settings
  • Fault Self Check: Cutting sensor error, no supply. The error  would show on the system panel directly if the fault happened
  • Automatic Operation: Automatic Stopper works automatically only by setting speed length, quantity, and temperature. It stops automatically if materials run out during operation.

      JUKI DDL-8700 FAQs

      What kind of needles do you use in the DDL-8700?

      The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

      Where does the machine oil go?

      A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

      What kind of oil does this machine require?

      You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

      What size table can I get with this machine?

      Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

      Does the DDL 8700 make buttonholes?

      No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
