Metal Bobbin For Walking Foot & Double Needle Industrial Sewing Machine - Singer #203470

Metal Bobbin For Walking Foot & Double Needle Industrial Sewing Machine - Singer #203470

GS-203470

Metal Bobbin For Walking Foot & Double Needle Industrial Sewing Machine - Singer #203470

$1.49
$1.49 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

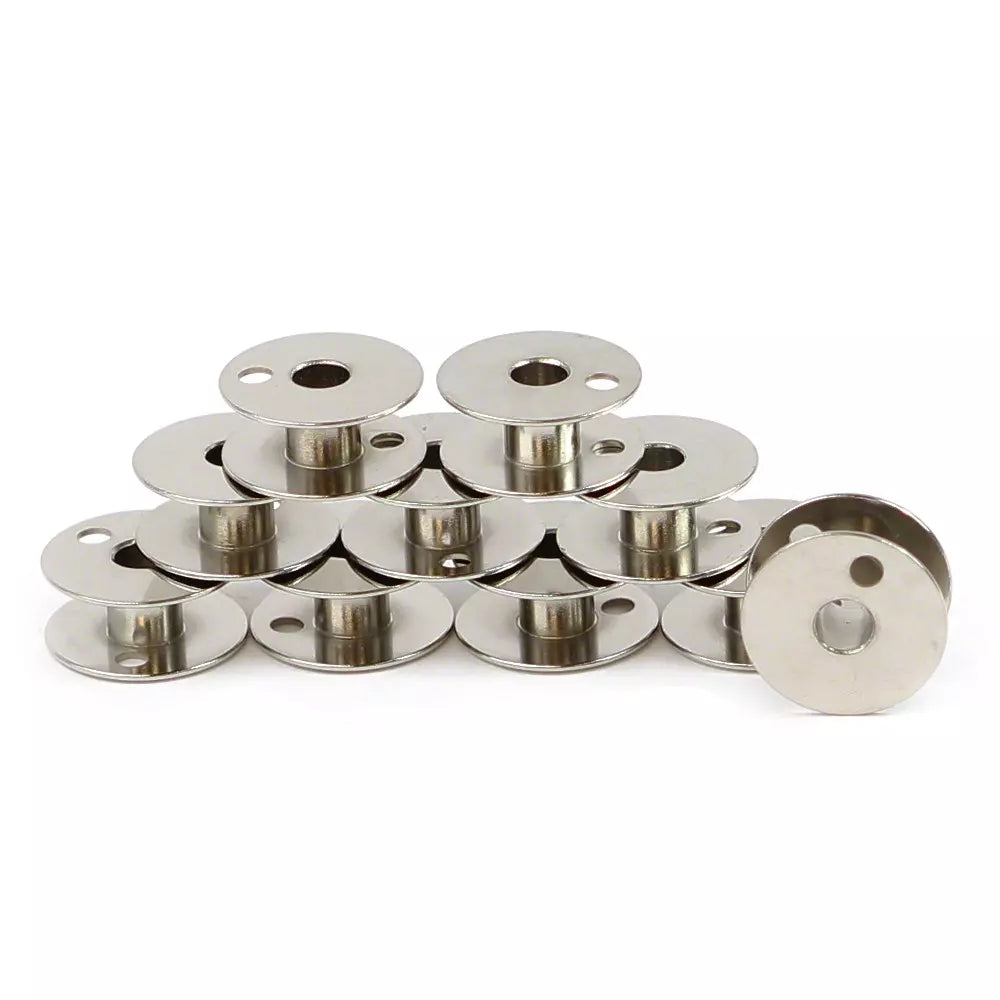

Metal Bobbin For Walking Foot & Double Needle Industrial Sewing Machine - Singer #203470​

Part Number: 203470
Alternate Part Number: SMP203470-10, 10656, B9117-051-000, B-9117-051-000, B9117051000

Bobbin measurement: 22mm diameter X 9mm tall

Please note that these bobbins may come in either silver or black.

Please check your manual to verify which bobbin style is right for your machine.

MACHINE COMPATIBILITY:

  • Brother Models: B831, B832, B835
  • Consew Models: 139, 207, 223, 224, 225, 226, 227, 228, 229, 239, 238, 239, 256, 282, 289, 327R-1, 332, 357, 358, 359, 382, 388, 389, 10656
  • Durkopp Models: 241
  • JUKI Models: 226, LH-512, LH-515, LH-517, LH-1152, LU-562
  • Mitsubishi Models: DB-286, DB-286-10, DF-200, DN-200, DN-260, DN-265, DN-275, DU-100, DU-105, DU-120, DU-125, PB-810, PB-820, LT2-200-MOB, LT2-240-MOB
  • Seiko Models: CW all class, LPW-6, LPW-7, LPW-8, lPW-26, LPW-27, LPW-28, LTW all class, PW all class, STW all class
  • Singer Models: 246W, 47W, 51W, 52K, 52W, 110W102, 110W103, 110W115, 110W117, 110W120, 110W121, 110W122, 110W124, 110W125, 110W126, 110W127, 110W128, 110W151, 111G156, 111W, 111W100, 111W103, 111W104, 111W105, 111W107, 111W114, 111W115, 111W116, 111W117, 111W150, 111W152, 111W153, 111W154, 111W155, 112G127, 112W, 112W110, 112W119, 112W120, 112W126, 112W136, 112W137, 112W138, 112W139, 112W140, 112W145, 112W146, 117W5, 117W8, 119W1, 119W5, 131W, 131W103, 131W104, 134W3, 134W4, 134W7, 134W8, 136W110, 139W101, 151W, 153K, 153W, 153W100, 153W104, 154W100, 211G, 211G155, 211G156, 211W155, 211W, 212G, 212W, 212W101, 21W, 21W162, 21W52, 22W111, 22W113, 22W125, 22W133, 22W156, 22W158, 22W156, 22W166, 22W167, 22W168, 22W169, 22W170, 22W172, 22W173, 22W206, 22W23, 22W25, 22W34, 22W38, 22W39, 22W40, 22W57, 22W59, 22W60, 23W, 24W, 29W, 45W51, 45W52, 45W53, 46W61, 46W62, 46W63, 47W66, 47W68, 47W70, 49W51, 51W45, 51W46, 51W47, 51W51, 51W52, 51W53, 51W59, 52W100, 52W12, 52W13, 52W18, 52W19, 52W31

And many more!

Bobbin Class: Uncommon
Bobbin Material: Metal

Sold in a Single Piece and 100 Pack.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
