Meistergram GEM XL 1512 | 12-Head Professional Embroidery Machine

Meistergram GEM XL 1512 | 12-Head Professional Embroidery Machine

GEM-XL-1512

The Industry Standard for High-Volume Commercial Production
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

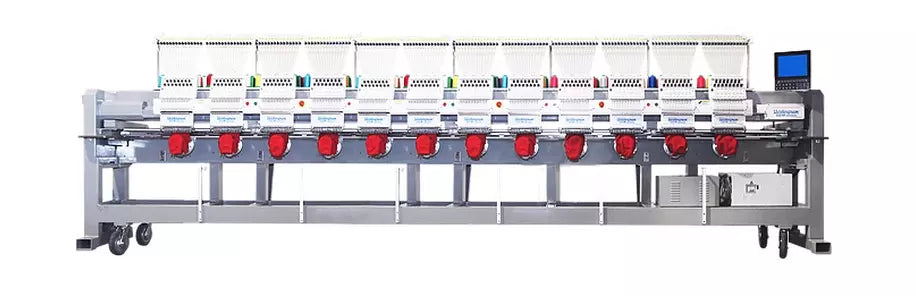

Meistergram GEM XL 1512

is a powerhouse 12-head, 15-needle commercial embroidery machine engineered for businesses ready to scale. With a massive sewing field and a rigid bridge-style frame, this machine delivers industrial-grade precision at speeds up to 1,000 SPM. Whether you are processing bulk corporate apparel or heavy-duty headwear, the GEM XL 1512 provides the reliability and stitch quality required for high-end output.

  • Bulk Apparel: Ideal for high-volume polo shirts, hoodies, and corporate uniforms.
  • Professional Headwear: Engineered for structured caps, beanies, and visors.
  • Outerwear & Bags: Easily handles heavy-duty jackets, backpacks, and golf bags.
  • Large Flat Goods: Perfect for towels, blankets, and table runners using the bridge-style clearance.
  • Patches & Appliques: Efficiently mass-produces uniform patches and complex decorative appliques.
  • High-Output 12-Head Array: Synchronized production allows you to finish orders 12 times faster than a single-head unit.
  • 15 Needles Per Head: Offers a vast color palette for complex designs with significantly fewer manual thread changes.
  • Bridge-Style Architecture: Provides a stable, vibration-free platform for superior stitch registration on heavy fabrics.
  • 10" HD Touchscreen: An intuitive interface featuring a 100-million-stitch memory and real-time design previews.
  • 270° Cap System: Specialized wide-field drivers for seamless, ear-to-ear embroidery on finished headwear.
  • Automated Precision: Features automatic thread trimming, color changes, and thread break detection to minimize downtime.
  • Heads: 12
  • Needles: 15 per head
  • Max Sewing Speed: 1,000 SPM
  • Max Sewing Field: 450mm x 400mm (Approx. 17.7" x 15.7")
  • Memory Capacity: 100,000,000 Stitches (800 Designs)
  • Cap Field: 270° Wide Field
  • Stitch Format: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor)
  • Power Requirements: 110V/230V Interchangeable
  • Machine Dimensions: 175” L x 35.5” W x 68.75” H
  • Weight: 4,180 lbs

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
