Meistergram GEM XL 1502 | 2-Head Professional Embroidery Machine

Meistergram GEM XL 1502 | 2-Head Professional Embroidery Machine

GEM-XL-1502

The Industry Standard for High-Efficiency Multi-Head Production
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

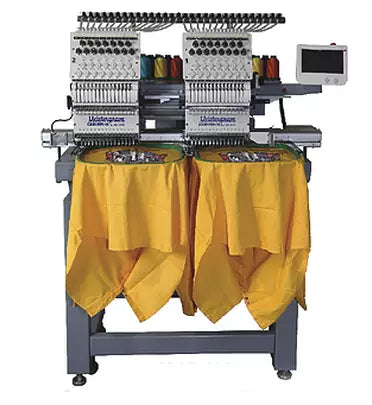

Meistergram GEM XL 1502

is a powerhouse 2-head, 15-needle commercial embroidery machine engineered to double your production capacity without doubling your footprint. Designed for high-volume shops and growing businesses, the "XL" series features an expanded sewing field and an ultra-stable bridge-style frame. Whether you are embroidering finished caps, heavy-duty outerwear, or large-scale flat goods, the GEM XL 1502 delivers industrial speed (up to 1,200 SPM) with the precision and quiet operation Meistergram is famous for.

The "XL" designation signifies a more robust build and a larger sewing field compared to standard compact models. By utilizing high-quality Japanese components and brass-inserted tensioners, the GEM XL 1502maintainsits value and performance over years of rigorous commercial use, making it the smartest investment for shops looking to scale.

  • Corporate & Promotional Apparel: High-speed production of logos on polos, dress shirts, and uniforms.
  • Professional Headwear: Mass-scale 270-degree embroidery on structured caps, beanies, and visors.
  • Heavy-Duty Goods: Ideal for backpacks, duffel bags, and leather jackets thanks to the deep bridge clearance.
  • Home Decor: Precision stitching on linens, towels, blankets, and table runners.
  • Custom Patches: Efficiently produce uniform and promotional patches with high detail and consistency.
  • Dual-Head Efficiency: Synchronized 2-head system allows you to embroider two items simultaneously with perfect consistency.
  • 15 Needles Per Head: Offers a vast color palette with fewer thread changes, optimizing workflow for complex multi-color designs.
  • XL Bridge-Style Frame: The reinforced bridge architecture provides a stable, vibration-free platform for superior stitch quality on heavy fabrics.
  • Advanced 10" HD Touchscreen: A user-friendly control panel featuring an on-board help menu, design preview, and 100-million-stitch memory.
  • 270° Wide-Field Cap System: Specifically engineered for ear-to-ear embroidery on finished headwear using specialized drivers and frames.
  • Intelligent Automation: Features automatic thread trimming, automatic color changes, and high-sensitivity thread break detection.
  • Precision Drive System: Equipped with Panasonic Servo motors and encoder-controlled stepper motors for world-class accuracy and durability.
  • Heads: 2
  • Needles: 15 per head
  • Maximum Speed: 1,200 Stitches Per Minute (SPM)
  • Maximum Sew Field: 450mm x 400mm (Approx. 17.7" x 15.7") per head
  • Memory Capacity: 100 Million Stitches / 800 Designs
  • Cap System: 270° Wide Field Cap Driver (Ear-to-Ear)
  • Supported Formats: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor); Encoder-controlled Stepper Motors (X/Y)
  • Voltage: 110V/230V Interchangeable Input
  • Machine Dimensions: 61” L x 39” W x 65.5” H
  • Machine Weight: 484 lbs

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
