Meistergram GEM XL 1500/800 | Single-Head Professional Embroidery Machine

Meistergram GEM XL 1500/800 | Single-Head Professional Embroidery Machine

GEM-XL-1500-800

The Industry Leading Solution for Oversized Commercial Embroidery
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

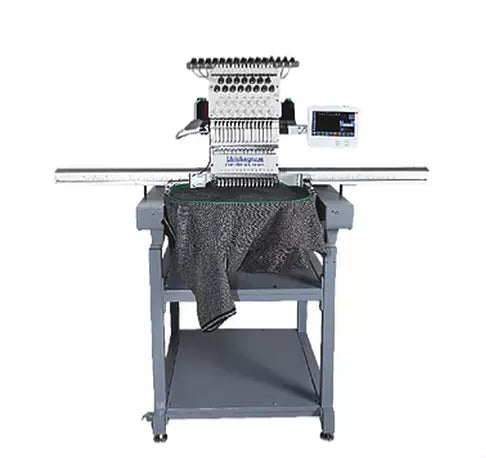

Meistergram GEM XL 1500/800

is a powerhouse single-head, 15-needle commercial embroidery machine engineered for businesses that require an expanded sewing field without sacrificing the precision of a high-speed unit. Featuring a massive 800mm x 500mm (31.5" x 19.7") work area and a stable bridge-style frame, this machine is specifically designed to handle oversized items like jacket backs, banners, and heavy-duty bags. Equipped with an intuitive 10" HD touchscreen and reaching speeds up to 1,200 SPM, the XL 1500/800 is the ultimate tool for scaling your custom embroidery production.

The GEM XL 1500/800 stands out by offering "Bridge Architecture," which allows bulky items to lie flat on the table rather than hanging, preventing fabric distortion and birdnesting. Combined with high-quality Japanese components and brass-inserted tensioners, it provides the most reliable uptime for commercial shops looking to tackle large-scale projects.

  • Oversized Apparel: Perfect for full-back embroidery on leather jackets, hoodies, and varsity coats.
  • Large Format Goods: Ideal for banners, tablecloths, blankets, and towels.
  • Professional Headwear: Efficient ear-to-ear embroidery on structured caps, beanies, and visors.
  • Industrial Gear: Easily handles bulky items like duffel bags, backpacks, and tactical vests thanks to the bridge clearance.
  • Custom Patches: Mass-produce large uniform patches or intricate applique work with high repeatability.
  • Expanded XL Sewing Field: Boasts a massive 31.5" x 19.7" area, providing the clearance needed for large-format designs that standard machines cannot handle.
  • 15-Needle Configuration: Allows for complex, multi-color designs with 15 independent needles, drastically reducing manual thread changes and downtime.
  • Industrial Bridge Frame: The heavy-duty bridge architecture offers superior structural integrity, minimizing vibration and ensuring crisp stitch quality at high speeds.
  • 10" HD Touchscreen Panel: A user-friendly interface featuring on-board lettering, real-time design tracking, and a massive 100-million-stitch memory.
  • 270° Wide-Field Cap System: Enables seamless, ear-to-ear embroidery on finished headwear using specialized wide-field drivers.
  • Intelligent Automation: Features automatic thread trimming, automatic color changes (up to 500 per file), and precise thread break detection.
  • Panasonic Servo Drive: Powered by a world-class servo motor for smooth, quiet operation and long-term industrial reliability.
  • Heads: 1
  • Needles: 15
  • Max Sewing Speed: 1,200 SPM
  • Max Sewing Field: 800mm x 500mm (Approx. 31.5" x 19.7")
  • Memory Capacity: 100,000,000 Stitches (up to 800 Designs)
  • Cap Field: 270° Wide Field
  • Stitch Format: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor)
  • Power Requirements: 110V/230V Interchangeable
  • Machine Weight: 396 lbs (180 kg)
  • Control Panel: 10" High-Definition Touchscreen

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
