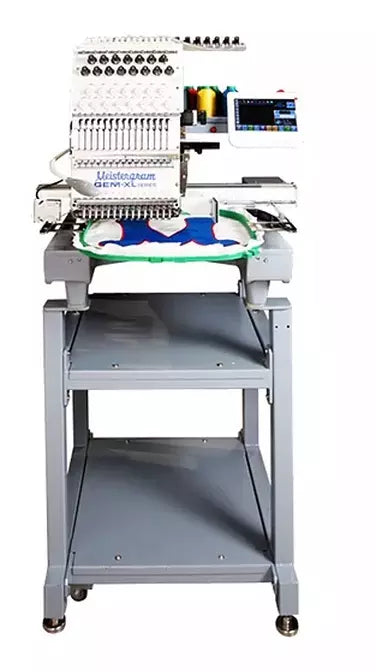

Meistergram GEM XL 1500/510 | Single-Head Professional Embroidery Machine

Meistergram GEM XL 1500/510 | Single-Head Professional Embroidery Machine

GEM-XL-1500-510

Industrial Performance in a Space-Saving Commercial Design
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Meistergram GEM XL 1500/510

is a powerhouse single-head, 15-needle commercial embroidery machine designed for high-efficiency production. Engineered for businesses that require industrial-grade reliability without the massive footprint of a multi-head unit, the XL 1500/510 features a generous 510mm x 420mm (20" x 16.5") sewing field and a high-speed capacity of up to 1,200 SPM. Whether you are scaling a boutique shop or adding a versatile sampling unit to a large factory, this machine delivers premium stitch quality on everything from delicate garments to heavy-duty headwear.

  • Corporate & Finished Apparel: Ideal for high-speed branding on polos, hoodies, dress shirts, and uniforms.
  • Custom Headwear: Professional-grade embroidery for structured caps, beanies, and visors using the wide-field cap system.
  • Large Format Goods: Perfect for backpacks, duffel bags, blankets, and towels thanks to the expanded 510mm field.
  • Personalized Accessories: Quick turnaround for monograms, name tapes, and custom patches.
  • Sampling & Prototypes: The perfect high-speed unit for R&D in large-scale embroidery facilities.
  • 15-Needle Configuration: Supports complex, multi-color designs with 15 independent needles, drastically reducing manual thread changes and downtime.
  • Large 20" x 16.5" Sew Field: Provides ample space for large jacket backs, tote bags, and banners while maintaining a compact machine chassis.
  • 10" HD Touchscreen Interface: Features an intuitive 4-step programming process (Design > Color > Frame > Confirm) and an on-board help menu for seamless operation.
  • Versatile 270° Cap System: Engineered for ear-to-ear embroidery on finished headwear using specialized wide-field drivers and frames.
  • Intelligent Automation: Equipped with automatic thread trimming, automatic color changes, and high-sensitivity thread break detection.
  • Precision Drive Technology: Powered by a Panasonic Servo motor and 48V stepper motors with encoders for world-class stitch accuracy and quiet operation.
  • Multi-Tasking OS: An advanced operating system that allows the operator to set up the next job while the machine is actively embroidering.
  • Heads: 1
  • Needles: 15
  • Maximum Sewing Speed: 1,200 SPM
  • Maximum Sewing Field: 510mm x 420mm (Approx. 20" x 16.5")
  • Memory Capacity: 100,000,000 Stitches (up to 500 Designs)
  • Cap Field: 270° Wide Field
  • Motor Type: Panasonic Servo (Main Motor) / 48V Stepper Motors (X/Y)
  • File Compatibility: .DST, .DSB, .ZSK, .FDR
  • Power Requirements: 110V/220V Self-Adjusting Input
  • Machine Dimensions: 30.5” L x 30” W x 65.5” H
  • Weight: 264 lbs (120 kg)

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
