Meistergram GEM 1508 | 8-Head Professional Multi-Head Embroidery Machine

Meistergram GEM 1508 | 8-Head Professional Multi-Head Embroidery Machine

GEM-1508

High-Performance Industrial Production for Mid-Sized Embroidery Businesses
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

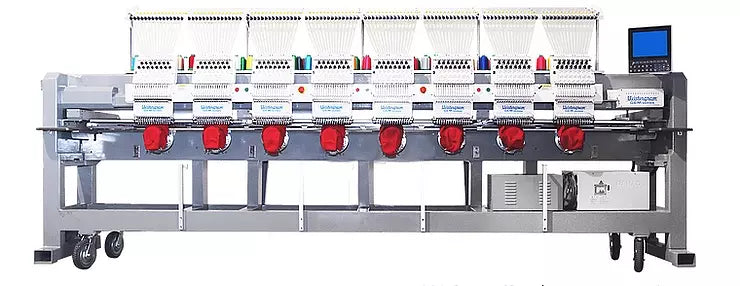

Meistergram GEM 1508

is an industrial-grade 8-head, 15-needle embroidery machine designed to bridge the gap between boutique setups and massive factory production. Featuring a generous 450mm x 400mm sewing field per head and a robust bridge-style frame, the GEM 1508 provides the stability needed for high-speed, 1,000 SPM operation. With its user-friendly 10" HD touchscreen and 270-degree cap capability, this machine is the perfect choice for shops looking to quadruple their output without sacrificing the precision Meistergram is known for.

  • Mid-to-Large Scale Apparel: Perfect for polos, hoodies, uniforms, and corporate workwear.
  • Headwear Production: High-speed embroidery for structured caps, beanies, and visors.
  • Bulk Flat Goods: Efficiently process towels, tote bags, linens, and blankets.
  • Specialty Items: Ideal for jacket backs and heavy-duty bags thanks to the deep bridge clearance.
  • Custom Patches: Mass-produce uniform and morale patches with high detail and consistency.

MACHINE FEATURES:

  • Durable Industrial Construction
  • Smooth and Quiet Operation
  • 15 Needles
  • Automatic Color Change
  • Automatic Trim
  • Trace Feature
  • Thread Clamping System
  • 10" High Definition Display
  • On-Board Lettering
  • USB Ready
  • Adjustable Presser Feet
  • Built-In Levels
  • Heads: 8
  • Needles: 15 per head
  • Max Sewing Speed: 1,000 SPM
  • Max Sewing Field: 450mm x 400mm (Approx. 17.7" x 15.7")
  • Memory Capacity: 100,000,000 Stitches (800 Designs)
  • Cap Field: 270° Wide Field
  • Stitch Format: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor)
  • Power Requirements: 110V/230V Interchangeable
  • Machine Dimensions: 175” L x 35.5” W x 68.75” H
  • Weight: 2,530 lbs

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
