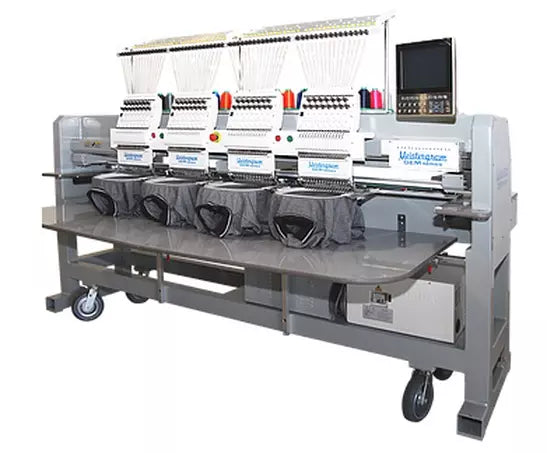

Meistergram GEM 1504 | 4-Head Professional Multi-Head Embroidery Machine

Meistergram GEM 1504 | 4-Head Professional Multi-Head Embroidery Machine

GEM-1504

Industrial Performance for Mid-Size Production Scaling
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Meistergram GEM 1504

is a 4-head, 15-needle commercial embroidery machine engineered to maximize production capacity for growing businesses. Combining a heavy-duty bridge-style frame with a spacious 450mm x 400mm sew field per head, it provides the stability needed for crisp, high-speed stitching at up to 1,000 SPM. Equipped with an intuitive 10.5" HD touchscreen and 270-degree cap capabilities, the GEM 1504 is the perfect "mid-tier" powerhouse for shops transitioning from single-head units to high-volume output.

  • Medium-Batch Apparel: Ideal for corporate polos, sweatshirts, uniforms, and sportswear.
  • Headwear Production: High-speed ear-to-ear embroidery on structured caps, beanies, and visors.
  • Bulk Flat Goods: Perfect for towels, tote bags, linens, and decorative blankets.
  • Heavy Materials: Easily handles bulky items like leather jackets, backpacks, and tactical gear.
  • Custom Patches: Efficiently produce uniform and promotional patches with high detail and consistency.
  • Efficient 4-Head Production: Quadruple your output by embroidering four garments simultaneously with perfect uniformity.
  • 15 Needles Per Head: Accommodates complex multi-color designs with ease, reducing manual thread changes and downtime.
  • Heavy-Duty Bridge Frame: Built with industrial-grade steel to minimize vibration, ensuring superior stitch registration even at top speeds.
  • 10.5" HD Touchscreen Control: User-friendly interface with an on-board help menu, design preview, and 100-million-stitch memory.
  • 270° Wide-Field Cap System: Specifically designed for seamless ear-to-ear embroidery on finished headwear.
  • Intelligent Automation: Features automatic thread trimming, automatic color changes, and highly sensitive thread break detection.
  • World-Class Drive System: Powered by a Panasonic Servo motor for quiet, smooth operation and long-term durability.
  • Heads: 4
  • Needles: 15 per head
  • Max Sewing Speed: 1,000 SPM
  • Max Sewing Field: 450mm x 400mm (Approx. 17.7" x 15.7")
  • Memory Capacity: 100,000,000 Stitches (800 Designs)
  • Cap Field: 270° Wide Field
  • Stitch Format: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor)
  • Power Requirements: 110V/230V Interchangeable
  • Machine Dimensions: 106” L x 35.5” W x 68.75” H
  • Weight: 1,430 lbs

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
