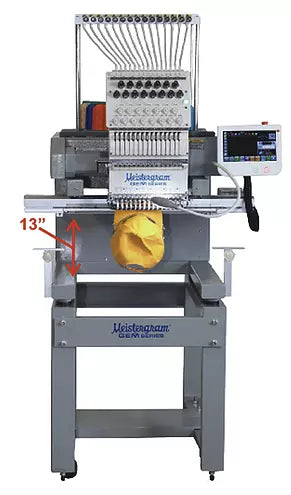

Meistergram GEM 1500TC | 15-Needle Professional Compact Embroidery Machine

Meistergram GEM 1500TC | 15-Needle Professional Compact Embroidery Machine

GEM-1500TC

Meistergram - GEM 1500TC 1 Head Embroidery Machine
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Meistergram GEM 1500TC (Twin Compact)

is a premier 15-needle commercial embroidery machine engineered for businesses that need industrial-grade output within a compact footprint. Combining a bridge-style architecture with a portable chassis, the 1500TC offers an unobstructed 20" x 16" sew field, making it perfect for everything from delicate garments to oversized golf bags and heavy outerwear. With its intuitive 10" HD touchscreen and 1,200 SPM top speed, this machine is the ultimate workhorse for boutiques, home-based businesses, and mobile embroidery setups.

The GEM 1500TC features high-quality brass-inserted tensioners for the smoothest possible thread delivery. Its Industrial-grade powder coat ensures maximum durability and corrosion resistance, while the on-board diagnostic system monitors motor temperatures in real-time, ensuring your investment is protected during long production runs.

  • Corporate Apparel: High-speed branding on polos, hoodies, dress shirts, and uniforms.
  • Professional Headwear: Expert-level ear-to-ear embroidery on structured caps, beanies, and visors.
  • Bulkier Industrial Goods: Specifically designed to handle golf bags, backpacks, and heavy canvas duffels.
  • Large Format Items: Perfect for jacket backs, towels, blankets, and table runners.
  • On-Demand Customization: Ideal for personalized gifts, name tapes, and intricate custom patches.
  • Bridge-Style Architecture: The pantograph floats from the top, leaving the lower area completely open for bulky items like leather jackets and equipment bags.
  • 15-Needle Configuration: Supports complex, multi-color designs with 15 independent needles, drastically reducing manual thread changes.
  • Compact Commercial Footprint: Designed to fit through standard doorways and into smaller workspaces while maintaining heavy-duty performance.
  • 10" HD Touchscreen Panel: A user-friendly interface featuring a simple 4-step programming workflow and an on-board lettering system.
  • 270° Wide-Field Cap System: Enables seamless, ear-to-ear embroidery on finished headwear in a single cycle.
  • Intelligent Multi-Tasking OS: An advanced operating system that allows you to set up the next job or program designs while the machine is actively stitching.
  • Precision Engineering: Equipped with a Panasonic Servo motor and 48V stepper motors with encoders for world-class stitch accuracy and quiet operation.
  • Heads: 1
  • Needles: 15
  • Max Sewing Speed: 1,200 SPM
  • Max Sewing Field: 530mm x 450mm (Approx. 20" x 16")
  • Memory Capacity: 100 Million Stitches (up to 500 Designs)
  • Cap Field: 270° Wide Field
  • Stitch Format: .DST, .DSB, .ZSK, .FDR
  • Motor Type: Panasonic Servo (Main Motor) / 48V Stepper Motors (X/Y)
  • Power Requirements: 110V/220V Self-Adjusting Input
  • Machine Dimensions: 61” L x 39” W x 65.5” H
  • Weight: 385 lbs

U.S. WARRANTY:

  • One (1) year: parts and labor.
  • Five (3) years: all electronic components including wiring harnesses/cables, motors, solenoids, switches, sensors, rotary encoders, fans, noise filters, transformers, light fixtures, printed circuit boards/cards, controller, and potentiometer.
  • Five (5) years: drive train components including bushings, bearings, cams, gears, pulleys, sprockets, belts, chains, shafts, drive cables, frame drive rails.
  • Ten (10) years: Machine frame structure.
DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
